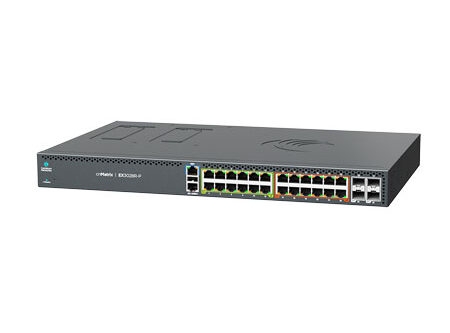

Cambium CnMatrix Ex3028R-P, Intelligent Ethernet Switch, 24 1G(12 PoE+ Ports And 12 4PPoE Ports(60W)) And 4 Sfp+ Ports, , Dual/Removeable Power Supplies MXEX3028GxPA10
SKU
408712
Brand
MPN
MXEX3028GxPA10
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,092.00
Buy Now And Earn 3092 Reward Points!
cnMatrix EX3028R-P, Intelligent Ethernet Switch, 24 1G(12 PoE+ ports and 12 4PPoE ports(60W)) and 4 SFP+ ports, , Dual/Removeable power supplies (not included)
| MPN | MXEX3028GXPA10 |
|---|---|
| PoE | Notes: Dual/removable power supplies (CRPS) supported — power supplies sold separately; some listings note no power cord and non-USA versions. Standards: [ "IEEE 802.3af", "IEEE 802.3at", "IEEE 802.3bt" ] Max Power Per Port: Up to 60W (4‑pair PoE/802.3bt on designated ports) |
| SKU | MXEX3028GxPA10 |
| Brand | Cambium Networks |
| Model | EX3028R-P |
| Ports | Access Ports: 24 x 10/100/1000 Mbps RJ-45 Uplink Ports: 4 x SFP+ (10 Gbps) PoE Port Breakdown: 12 x PoE+ and 12 x 4‑pair PoE (up to 60W per port) — per vendor listings Total Ports (count): 28 |
| Hardware | Fans: 2 fans Color: Black Power Source: AC; supports CRPS (common removable power supplies) — not included Processor Frequency: 800 MHz (vendor listings) |
| Warranty | 5-Year Limited Lifetime Warranty (per multiple vendor listings) |
| Description | The Cambium Networks cnMatrix EX3028R-P (MPN MXEX3028GXPA10) is a fully managed Layer 2/Layer 3 enterprise Ethernet switch designed for converged wired/wireless deployments. It provides 24 x 10/100/1000 Mbps access ports (mixed PoE configuration), 4 x SFP+ 10Gb uplinks, advanced security and automation via cnMaestro (cloud or on-premise), zero-touch deployment, policy-based automation, and non-blocking line-rate switching. The EX3028R-P supports PoE standards IEEE 802.3af/802.3at/802.3bt with up to 60W per port on 4‑pair PoE ports, dual/removable power supply (CRPS) support for redundancy (power supplies sold separately), QoS, DHCP snooping, port mirroring, IGMP support, link aggregation (up to 8 LAGs), and hardware specifications suitable for rack-mount installations. Ships without power supplies or power cord in listings that specify ‘no power cord’ / non-USA variants. |
| Form Factor | Rack-mount (1U) |
| Identifiers | UPC / EAN: 5715063505441 (present on some vendor listings) Alternate MPN formatting: MXEX3028GxPA10 |
| Product Type | Managed Ethernet Switch |
| Product Title | Cambium Networks cnMatrix EX3028R-P (MXEX3028GXPA10) — Managed PoE Switch, 24x 1G + 4x SFP+ |
| Sources Summary | Consolidated from multiple vendor product listings and datasheet excerpts for Cambium Networks cnMatrix EX3028R-P / MXEX3028GXPA10. |
| Additional Notes | Some vendor listings describe alternate port configurations or 2.5G-capable RJ-45 on variant SKUs; the consolidated listing above reflects the majority vendor descriptions for EX3028R-P (24 x 1G + 4 x SFP+). Dual/removable power supplies (CRPS) are supported but typically sold separately; several listings specify the unit ships without power supplies or power cord and/or indicate non-USA variants. |
| Layering & Features | Routing: IP routing supported Switching: Layer 2 and Layer 3 capable Management: Cloud-managed via cnMaestro (cloud or on-premise); web-based management; zero-touch provisioning; policy-based automation Security & QoS: Policy-based segmentation, automated device profiling, QoS support, DHCP snooping, port mirroring, IGMP |
| Switching Performance | Link Aggregation: Up to 8 LAGs, up to 8 links per LAG MAC Address Table: 16000 entries Throughput / Switching Capacity: 128 Gbps (per vendor listings) |
| Compliance & Standards | Networking Standards: [ "Ethernet", "Power over Ethernet (PoE)", "IEEE 802.3af", "IEEE 802.3at", "IEEE 802.3bt" ] |
| Physical Dimensions & Weight | Depth: 39.4 cm Width: 44.15 cm Height: 4.4 cm Net Weight: 3.679 kg Gross Weight (packaged): 4.904 kg |
Cambium cnMatrix EX3028R-P, Intelligent Ethernet Switch, 24 1G(12 PoE+ ports and 12 4PPoE ports(60W)) and 4 SFP+ ports, , Dual/Removeable power supplies
