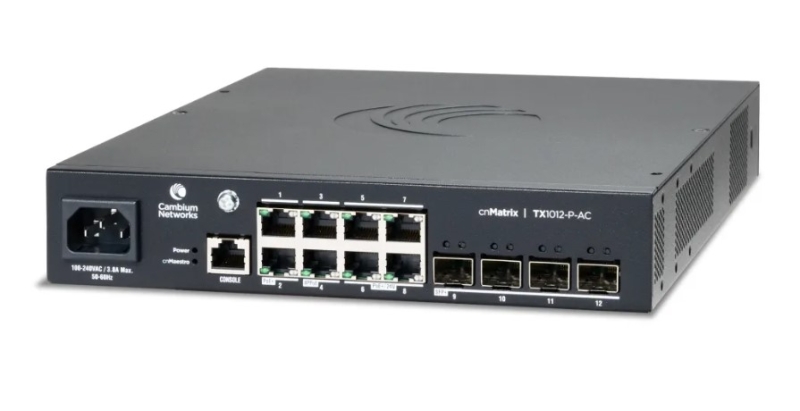

Cambium CnMatrix Tx1012-P-Ac, Ac Powered Intelligent Ethernet PoE Switch, 8 X 1Gbps, And 4 Sfp+, No Pwr Cord MXTX1012GxPA00
SKU
386058
Brand
MPN
MXTX1012GxPA00
Warranty
Standard Manufacturer's Warranty
$1,325.00
Buy Now And Earn 1325 Reward Points!
cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord
| SKU | MXTX1012GxPA00 |
|---|---|
| Brand | Cambium Networks |
| Layer | Layer 2 / Layer 3 |
| Model | TX1012-P-AC |
| Notes | Do not include vendor-specific availability or pricing. Technical field values consolidated from multiple sources; verify with manufacturer datasheet for deployment-critical details. |
| Ports | 8 x 10/100/1000 Mbps RJ45 (PoE-capable) + 4 x 10 Gbps SFP+ |
| Power | AC powered |
| Warranty | Conflicting reports: '3-Year Limited Lifetime Warranty' reported in some sources; '1-Year Limited Warranty' reported in others |
| Management | Cloud-managed via cnMaestro or XMS (on-premise option available); zero-touch provisioning; policy-based automation |
| Throughput | 96 Gbps (reported) |
| Description | The Cambium Networks cnMatrix TX1012-P-AC is a cloud-managed, enterprise-grade Layer 2/Layer 3 managed Ethernet switch offering 12 front-panel ports (8 x 1GbE RJ45 PoE ports and 4 x 10Gb SFP+ uplinks). Designed for high-performance, non-blocking switching, the TX1012-P supports zero-touch deployment and policy-based automation via cnMaestro or XMS, integrated security with device profiling and segmentation, and flexible/intelligent PoE options (802.3af/at/bt and 24V/54V passive modes). Throughput is reported at 96 Gbps with a forwarding rate of 120 Mpps. AC powered (power cord not included). |
| PoE Support | 802.3af/at/bt: 8 ports (PoE+ enabled; sources report support up to 90W in certain modes) 24V Passive PoE: 4 ports (reported, up to 15W) 54V Passive PoE / High-Power Passive: Reported support up to 90W; some sources report 2 high-power passive ports (reports vary) |
| Total Ports | 12 |
| Uplink Ports | 4 x SFP+ (10 Gbps) |
| Product Title | Cambium Networks cnMatrix TX1012-P-AC 12-Port Managed PoE Switch (8x 1GbE PoE, 4x 10Gb SFP+) |
| Serial Console | Yes (reported) |
| AC Input / Voltage | 240V referenced in some listings |
| Region Restriction | Not for sale in USA (reported) |
| Power Cord Included | No (power cord not included) |
| Security & Features | Automated device profiling and policy enforcement; unified wired-wireless access integration; policy-based automation for adds/moves/changes |
| Forwarding Rate (Mpps) | 120 (64-byte packets, reported) |
| Switching Architecture | Non-blocking, full line-rate |
| Replaced By / Lifecycle | Listed as obsolete / replaced by MXTX1012GXPD00 in at least one source |
| Manufacturer Part Number | MXTX1012GxPA00 |
Cambium cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord
