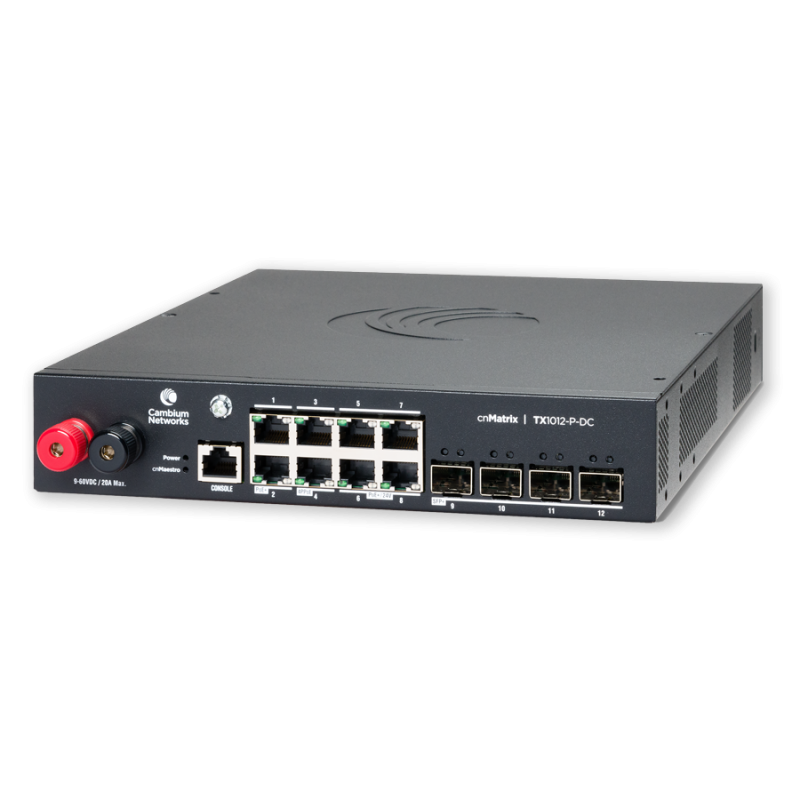

Cambium CnMatrix Tx1012-P-Dc, Dc Powered Intelligent Ethernet PoE Switch, 8 X 1Gbps, And 4 Sfp+, No Pwr Cord MXTX1012GxPA20
SKU
387772
Brand
MPN
MXTX1012GxPA20
Warranty
Standard Manufacturer's Warranty
$1,490.00
Buy Now And Earn 1490 Reward Points!
cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord
| SKU | MXTX1012GxPA20 |
|---|---|
| Brand | Cambium Networks |
| Color | Black |
| Model | cnMatrix TX1012-P-DC |
| Ports | 8 x 1GbE PoE ports |
| Series | cnMatrix TX1000 |
| Category | Networking |
| Warranty | 3-year limited warranty (TX Series) |
| Management | Fully managed L2/L3; cloud-managed (cnMaestro or XMS) and on-prem management supported |
| Description | The Cambium Networks cnMatrix TX1012-P-DC (MXTX1012GxPA20) is a cloud-manageable, enterprise-grade Layer 2/Layer 3 intelligent Ethernet PoE switch from the cnMatrix TX1000 series. It provides 8 x 1GbE PoE ports plus 4 x SFP+ uplink ports (10 Gbps), a non-blocking architecture and comprehensive PoE support (802.3af/at/bt; 24V passive; 54V passive). Designed for zero-touch deployment and policy-based automation, the switch supports automated device profiling, enhanced security segmentation, and unified wired/wireless access. All interfaces are front-panel accessible. The unit is DC powered and ships without a power cord. Manufacturer warranty: 3-year limited warranty (TX Series). |
| PoE Support | 802.3af, 802.3at, 802.3bt, 24V Passive PoE, 54V Passive PoE |
| Port Speeds | 1 Gbps (copper ports); 10 Gbps (SFP+ uplinks) |
| Key Features | Non-blocking architecture; zero-touch deployment; policy-based automation; automated device profiling and policy enforcement; enhanced access security; unified wired-wireless access; all front-panel interfaces |
| Manufacturer | Cambium Networks |
| Power Source | DC powered |
| Sub-Category | Switches and Hubs |
| Uplink Ports | 4 x SFP+ (10 Gbps) |
| Product Title | Cambium Networks cnMatrix TX1012-P-DC (MXTX1012GxPA20) - 8x 1GbE PoE, 4x SFP+ Managed L2/L3 Switch (DC Powered) |
| Shipping Weight | 4.0 kg (shipping weight reported) |
| PoE Power per Port | Up to 90W (802.3bt / 54V Passive); up to 15W (24V Passive) |
| Power Cord Included | No |
| Territorial Restriction | Not for sale in USA |
| Manufacturer Part Number | MXTX1012GxPA20 |
Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord
