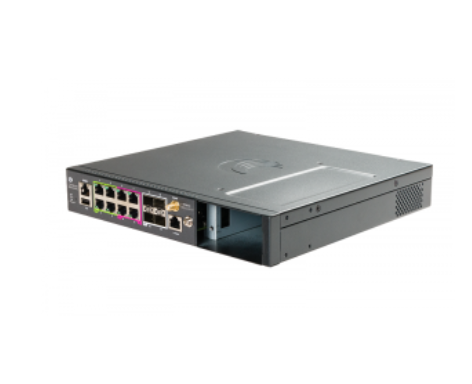

Cambium CnMatrix Tx 2020R-P, Intelligent Ethernet PoE Switch, Cambium Sync, 16 X 1gbps And 4 Sfp+, Removeable & Redundant Power Supplies (not Included) - No Pwr MXTX2020GxPA10
SKU
380167
Brand
MPN
MXTX2020GxPA10
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,301.00
Buy Now And Earn 3301 Reward Points!
QUICK OVERVIEW
Removeable & Redundant Power Supplies (not included) - no pwr
Intelligent Ethernet PoE Switch, Cambium Sync, 16 x 1gbps and 4 SFP+, Removeable & Redundant Power Supplies (not included)
| Brand | Cambium Networks |
|---|---|
| Model | cnMatrix TX2020R-P |
| Uplink | Yes (4 x 10Gb SFP+ uplinks) |
| Weight | Approx. 4.0 kg (≈9.48 lb) |
| Modular | Yes (SFP+ modules) |
| Warranty | 3/5-Year Limited Lifetime Warranty (as listed by manufacturer/distributors) |
| Grounding | Grounding lug nut located on front panel |
| USB Ports | 1 |
| Manageable | Yes (fully managed) |
| Management | Cloud or on-premise management via cnMaestro or XMS; zero-touch deployment; policy-based automation |
| Throughput | 112 Gbps |
| Description | The Cambium Networks cnMatrix TX2020R-P is a cloud-manageable, enterprise-grade L2/L3 PoE switch designed for WISP and enterprise deployments. It delivers a non-blocking architecture with 112 Gbps switching throughput and a 120 Mpps forwarding rate (64-byte packets). The switch includes 16 Gigabit RJ45 ports with comprehensive PoE support (802.3af/at/bt up to 90W per port), 8-port 24V passive PoE support, and 4x 10Gb SFP+ uplinks. Cambium Sync support (internal GPS with external antenna and cnPulse) provides redundant sync sources and per-port sync status. The unit supports dual removable redundant AC/DC CRPS power supplies (sold separately), front-panel interfaces, zero-touch deployment and management via cnMaestro or XMS, and full per-port control and statistics. Rack-mountable (1U) form factor; manufacturer warranty applies. |
| Form Factor | Rack-mountable (1U); wall-mountable (per listings) |
| Cambium Sync | Redundant sync sources: internal GPS module (external antenna), cnPulse port; per-port sync control and stats |
| Product Line | cnMatrix TX Series |
| Product Type | Layer 3 Managed Ethernet PoE Switch |
| PoE Standards | IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
| Product Title | Cambium Networks cnMatrix TX2020R-P Intelligent Ethernet PoE Switch — 16 x 1Gb RJ45 + 4 x 10Gb SFP+ |
| Product Family | cnMatrix |
| 54V Passive PoE | Up to 90W (supported) |
| Layer Supported | Layer 3 |
| SFP+ Slot Count | 4 |
| 10 Gbps SFP+ Ports | 4 |
| Compatible Rack Unit | 1U |
| Media Type Supported | Optical Fiber Twisted Pair |
| Networking Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.1s IEEE 802.1w IEEE 802.3ad IEEE 802.1D IEEE 802.3ac IEEE 802.1AB |
| Power Supply (notes) | Removable, common removable power supplies (CRPS) supported; removable & redundant power supplies supported (sold separately). No power cord included on some SKUs. |
| All Interfaces Location | Front panel |
| Expansion Slots (count) | 4 |
| Manufacturer Part Number | MXTX2020GxPA10 |
| PoE (Per-Port Capability) | Up to 90W (802.3af/at/bt) |
| PoE Enabled Ports (count) | 16 (PoE+ capable) |
| Power Supply Options (AC) | 600W, 930W, 1200W (AC CRPS options listed) |
| Power Supply Options (DC) | Fully isolated DC supplies supporting 36V–72V; 600W, 930W, 1200W options |
| 10/100/1000 Mbps RJ45 Ports | 16 |
| Total Number of Network Ports | 16 (RJ45 Gigabit) |
| Forwarding Rate (64 Byte Packets) | 120 Mpps |
| Number of Power Supplies Supported | 2 (redundant) |
| Low Voltage Passive PoE (24V) Ports | 8 |
Cambium cnMatrix TX 2020R-P, Intelligent Ethernet PoE Switch, Cambium Sync, 16 x 1gbps and 4 SFP+, Removeable & Redundant Power Supplies (not included) - no pwr
