main product photo

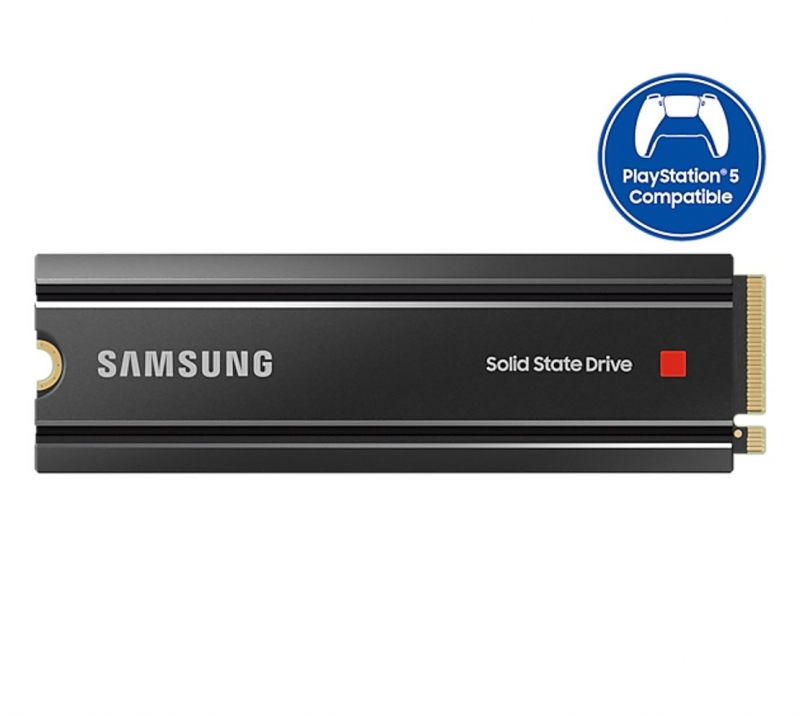

Samsung 980 Pro 1TB NVMe SSD with Heatsink 7000MB/s 5000MB/s R/W 1000K/1000K IOPS 600TBW 1.5M Hrs MTBF M.2 2280 PCIe 4.0 Gen4 3-bit MLC V-NAND 5yrs MZ-V8P1T0CW

SKU
382685
Brand
Samsung
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$194.00
Buy Now And Earn 194 Reward Points!
Add to Compare

General Feature

  • ApplicationClient PCs, Game Consoles
    •
  • Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
    •
  • Form FactorM.2 (2280)
    •
  • InterfacePCIe Gen 4.0 x4, NVMe 1.3c
    •
  • Dimension (WxHxD)80 x 24 x 8.6 mm (with heatsink)
    •
  • WeightMax 30.5g
    •
  • Storage MemorySamsung V-NAND 3-bit MLC
    •
  • ControllerSamsung in-house Controller
    •
  • Cache MemorySamsung 1GB Low Power DDR4 SDRAM

Special Feature

  • TRIM SupportSupported
    •
  • S.M.A.R.T SupportSupported
    •
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
    •
  • Encryption SupportAES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
    •
  • WWN SupportNot supported
    •
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 7,000 MB/s * Performance may vary based on system hardware & configuration
    •
  • Sequential WriteUp to 5,000 MB/s * Performance may vary based on system hardware & configuration
    •
  • Random Read (4KB, QD32)Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
    •
  • Random Write (4KB, QD32)Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)*Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    •
  • Power consumption (Idle)Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
    •
  • Allowable Voltage3.3 V ± 5 % Allowable voltage
    •
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
    •
  • Operating Temperature0 - 70 ℃ Operating Temperature
    •
  • Shock1,500 G & 0.5 ms (Half sine)

Software

  • Management SWMagician Software for SSD management

Installation Kit

  • Not Available

Warranty

  • 5-Year Limited Warrantyor 600 TBW Limited Warranty
Samsung 980 Pro 1TB NVMe SSD with Heatsink 7000MB/s 5000MB/s R/W 1000K/1000K IOPS 600TBW 1.5M Hrs MTBF M.2 2280 PCIe 4.0 Gen4 3-bit MLC V-NAND 5yrs
