MPN	N000065L031A
SKU	N000065L031A
Brand	Cambium Networks
Model	N000065L031A
Notes	Individual integrated ODUs are supplied without a mounting bracket; one integrated bracket is required per integrated ODU. ODUs in kits may be supplied with an integrated or connectorized bracket as appropriate.
Category	Networking
Part Type	Integrated Mounting Bracket

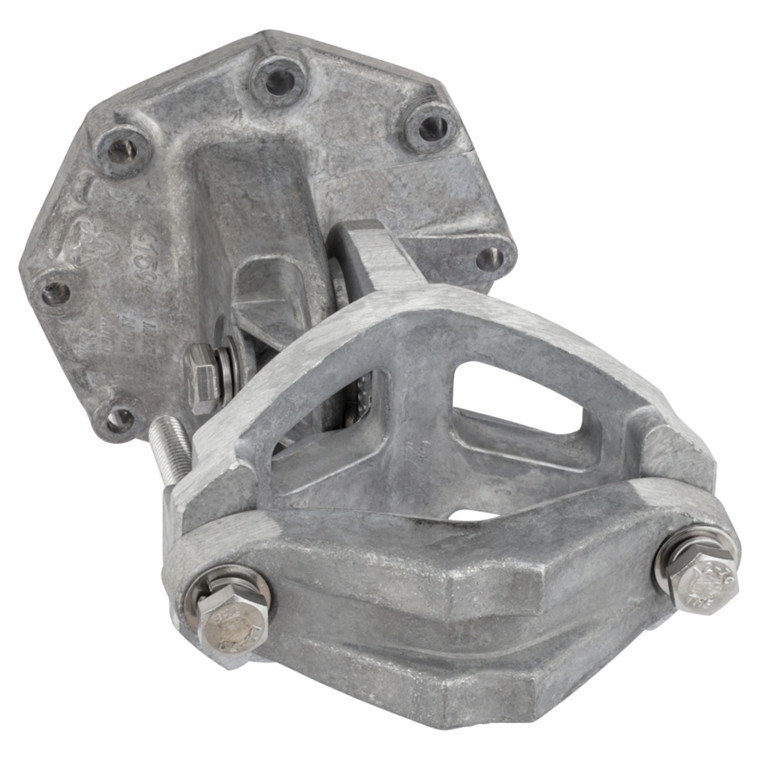

Description	Integrated mounting bracket for Cambium PTP 650 and PTP 670 series ODUs. Designed to mount integrated ODUs on vertical poles; compatible with a range of pole diameters using available extensions and low-profile variants. One (1) integrated bracket is required with each integrated ODU. Refer to Cambium documentation for extension and low-profile kit options for larger or specific-diameter poles.
Sub-Category	Wireless Networking
Compatibility	PTP 650 PTP 650S PTP 650L PTP 670
Product Title	Cambium Networks PTP650/PTP670 Integrated ODU Mounting Bracket (N000065L031A)
Included Items	Integrated mounting bracket (1)
Pole Diameter Ranges	{ "Bracket/Kit": "Integrated or Connectorized (standard)", "Pole Diameter": "50 mm to 75 mm (2.0 in to 3.0 in)" } { "Bracket/Kit": "Extended integrated bracket", "Pole Diameter": "90 mm (3.5 in) or 115 mm (4.5 in)" } { "Bracket/Kit": "Large diameter extension kit (used with integrated bracket)", "Pole Diameter": "Up to 229 mm (9.0 in)" } { "Bracket/Kit": "Low profile bracket (for PTP650S/PTP650L)", "Pole Diameter": "40 mm to 82 mm (1.6 in to 3.2 in) or 89 mm to 229 mm (3.5 in to 9.0 in)" }
Manufacturer Part Number	N000065L031A
Mounting Compatibility Notes	Integrated mounting bracket used to mount integrated ODUs on vertical poles. Connectorized mounting brackets are also used for connectorized ODUs. Extended integrated bracket, large-diameter extension kit, and low-profile bracket variants exist for different pole sizes and specific ODU models.

Cambium Networks Cambium PTP 670 Mounting Bracket is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: CBPP670B. Order online for Australia-wide delivery with local support.
