Cambium PoE Gigabit Dc Injector, 15W Output At 30V, Energy Level 6 Supply N000900L001D
SKU
398085
Brand
MPN
N000900L001D
Warranty
Standard Manufacturer's Warranty
$64.00
Buy Now And Earn 64 Reward Points!
PoE Gigabit DC Injector, 15W Output at 30V, Energy Level 6 Supply
| Brand | Cambium Networks |
|---|---|
| Model | N000900L001D |
| Notes | Some listings report output as 29.5 VDC; majority of technical references list 30 VDC. Some sellers offer multi-unit bundles — this record describes the standard single injector unit. |
| Weight | 0.37 lb (reported) |
| Data Rate | Gigabit Ethernet (10/100/1000 Mbps) |
| Frequency | 47 - 63 Hz |
| Dimensions | 86 mm L x 47.4 mm W x 30 mm H (reported) |
| Efficiency | Level VI (reported ~84.13% efficiency) |
| Interfaces | Data input (RJ-45 Gigabit), PoE output (RJ-45), AC input (IEC-60320 Type C6) |

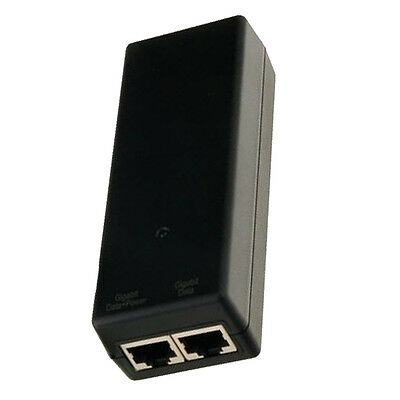

| Description | Cambium Networks N000900L001D external PoE power injector delivers up to 15 W at 30 VDC over a Gigabit Ethernet link to power compatible Cambium radios. The compact injector accepts universal AC input, uses an IEC-60320 Type C6 inlet, meets Level VI energy-efficiency requirements (reported ~84.13% efficiency), and is designed for indoor deployment across a broad operating temperature range. Power cord is not included. |
| Form Factor | External PoE injector |
| Part Number | N000900L001D |
| Manufacturer | Cambium Networks, Ltd |
| Output Power | 15 W |
| Compatibility | Designed for Cambium radios (examples reported: ePMP, PMP450, PTP450 and other compatible Cambium devices) |
| Pack Quantity | 1 (single unit) — some listings reference multi-packs (e.g., 4-pack) but standard unit is single) |
| Product Title | Cambium Networks N000900L001D PoE Injector — 30 VDC, 15 W, Gigabit Ethernet, IEC C6 |
| Color / Finish | Black |
| Output Voltage | 30 VDC |
| Input Connector | IEC-60320 Type C6 |
| AC Input Voltage | 90 - 264 VAC |
| Operating Altitude | Up to 5000 m (reported) |
| Included Accessories | None (power cord not included) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Replaces / Supersedes | Replaces N000900L001C (reported) |
Cambium PoE Gigabit DC Injector, 15W Output at 30V, Energy Level 6 Supply
