UBIQUITI AIRMAX NANOBEAM 2AC, 2.4GHz, (1) GbE RJ45, WiFi BRIDGE, 1YR NBE-2AC-13
SKU
433997
Brand
MPN
NBE-2AC-13
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $185.00 Regular Price $213.00
Buy Now And Earn 185 Reward Points!

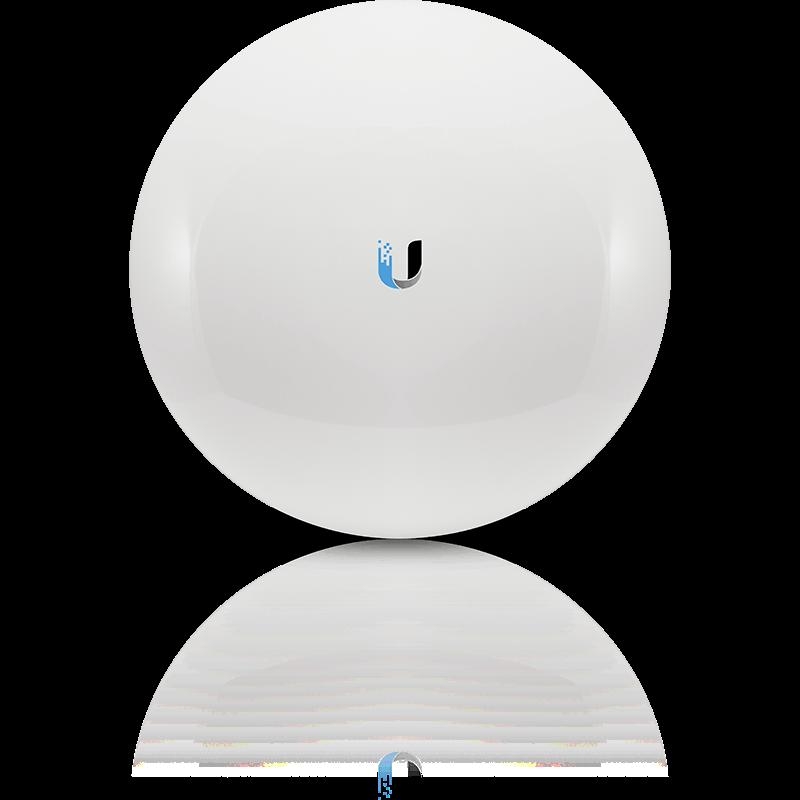

NanoBeam 2AC-13 (NBE-2AC-13)
Compact 2.4 GHz Outdoor CPE with UISP Support
The NanoBeam 2AC-13 is a high-performance outdoor CPE designed for point-to-point and point-to-multipoint deployments. Featuring a 13 dBi antenna, airMAX AC technology, and a dedicated management radio, it delivers up to 330+ Mbps throughput with enhanced noise immunity and remote configuration via UISP. Its compact, integrated design simplifies installation and alignment.
| Dimensions | 189 x 189 x 125 mm (7.4 x 7.4 x 4.9") |
| Weight | 530 g (1.2 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included), Wall mount (Not included), Window mount (Not included) |
| Wind loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max power consumption | 7.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gain | 13 dBi |
| Channel sizes PtP Mode | 10/20/40 MHz |
| Channel sizes PtPM Mode | 10/20/40 MHz |
| Max VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency (MHz) Worldwide | 2412 - 2472 MHz |
| Operating Frequency (MHz) USA | 2412 - 2462 MHz |
| Management Radio (MHz) Worldwide | 5150 - 5250 MHz |
| Management Radio (MHz) US/CA | U-NII-3: 5725 - 5850 MHz |
| NDAA Compliant | Yes |
UBIQUITI AIRMAX NANOBEAM 2AC, 2.4GHz, (1) GbE RJ45, WiFi BRIDGE, 1YR
