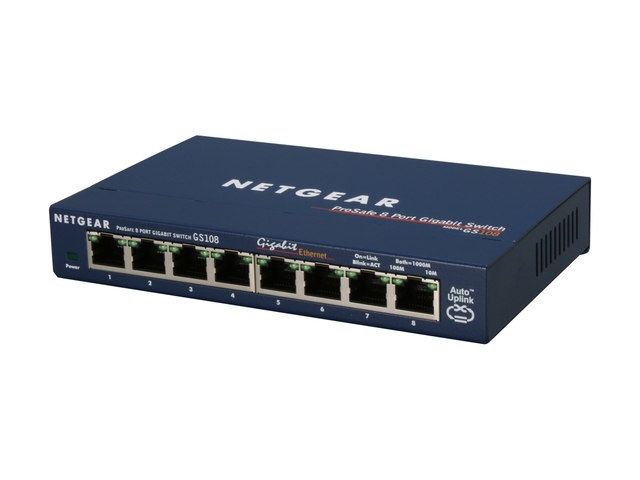

Netgear Gs108 8-port Gigabit Ethernet Switch

SKU
419
Brand
MPN
GS108AU
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$83.00
Buy Now And Earn 83 Reward Points!

QUICK OVERVIEW

GS108(GIGA-SWITCH)

key features
High-speed, auto-switching 10/100/1000 Mbps Ethernet connection
Up to 2000 Mbps on each port
Integrates 10, 100, & 1000 Mbps within a network
Provides Auto Uplink? functionality on all 8 RJ-45 ports
Supports PC or Macintosh O/S
Space-saving dimensions
Power Up Your Small Network to Gigabit Speeds
Now you can have a powerful, high-speed network on a small scale. NETGEAR's GS108 Gigabit Ethernet Switch lets you build a system that provides a full, dedicated 1000, 100, or 10 Mbps connection so you can move very large files across your network instantly. The GS108 also lets you painlessly integrate 10, 100, and 1000 Mbps devices. This potent switch is packed with ease-of-use features to simplify your workday experience. It's compact design fits neatly into small work spaces and, since it's self-cooling without a fan, it runs silently and unobtrusively.

Power-Packed
Moves huge files fast! Features a high-speed, auto-switching 10/100/1000 Mbps Ethernet connection. And because Copper Gigabit Ethernet is a full duplex standard, you can get up to 2000 Mbps on each port.

Capable
Integrates 10, 100, and 1000 Mbps devices on the same network. Every port automatically senses the right speed and full/half duplex mode, while Auto Uplink? technology automatically adjusts for straight-through or crossover cables.

Accommodating
LEDs embedded in each of the 8 RJ-45 jacks make for easy monitoring. Space-saving dimensions are ideal for desktop or wall mounting in home and small office environments. And it runs quietly, self-cooling without an internal fan.

Solid
Strong, durable metal case securely protects the switch?s working parts. The GS108 is made to last and NETGEAR backs it with a solid warranty: switch - 5 years, power supply - 2 years.

GS108
Network Ports: 8 auto speed sensing UTP ports

Forwarding Mode: Store-and-Forward
Performance:
Bandwidth: 16 Gbps (non-blocking)
Forward Rate(10 Mbps port): 14,800 packets/sec
Forward Rate(100 Mbps port): 148,000 packets/sec
Forward Rate(1000 Mbps port): 1,480,000 packets/sec
Latency (10 to 100 Mbps): 40 usec (max)
Latency (100 to 1000 Mbps): 10 usec (max)
Queue Buffer Memory: 32Kbytes per port
MAC address database: 8000
Acousitc Noise: 0 dB
Heat Dissipation: 38.8 Btu/hr

AC Power: 17.5W
Dimensions: 11.29" x 3.93" x 0.98" (287 mm 100 mm 25 mm)
1.98 lb (0.9 kg)

Environmental Specifications:
Operating temperature: 0? to 40?C
Operating humidity: 10% to 90% noncondensing
Safety Agancy Approvals: UL (UL 1950), CUL, C-Tick
Electromagnetic Compliance CE mark, commercial FCC Part 15 Class A, EN55 022 (CISPR22), Class A VCCI, Class A C-Tick

Status LEDs: Power, Collision/Rx/Tx, and duplex indicators for each port
Link and speed indicators built into each vista RJ-45 port

Standards Compliance: IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-T Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Windows, MacOS, Netware, TCP/IP

Warranty: Switch - 5 years
Power adapter - 2 years
Input Voltage: 5V and 5A
System Requirements: UTP Category 5 or better cables
Network card for each PC or server (e.g. GA302T)
Network software (e.g., Windows, Linux, MacOS)

Package Contents: GS108 8-port Gigabit Ethernet Switch
Wall-mount kit
AC adapter
Installation guide
Warranty card
Support information card

Name Value
ConnectivityWired
Other featuresConnectivity LEDs
Data Transfer Rate
Ports & interfacesDC-in jack
Device TypeN/A
Dimensions
CertificatesElectromagnetic emissions
functions
SecurityMAC address filtering
Technical detailsMean time between failures (MTBF)
Operational conditionsNon-operating relative humidity (non-condensing)
Operational conditionsOperating altitude
Operational conditionsOperating relative humidity (H-H)
Operational conditionsOperating temperature (T-T)
Ports8
Power over Ethernet (PoE)Power over Ethernet (PoE) support
Management featuresQuality of Service (QoS) support
CertificatesSafety
Speed100 Gbps
Technical detailsStackable
Operational conditionsStorage temperature (T-T)
ProtocolsSupported network protocols
Switching FabricN/A
Transfer Speed
Type
WarrantyN/A

8-Port Gigabit Ethernet Switch

Features

  • ProSafe 5- and 8-port Gigabit Desktop Switches connect your network with the dual advantages of performance and convenience
  • Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network
  • Supports Windows® and Macintosh® platforms
  • LEDs make it easy to monitor link, speed, and activity
  • AutoUplinkâ„¢ technology automatically adjusts for two common types of cables
  • Compact metal case for desktop or wall mounting
  • Up to 60% lower power consumption
  • Auto power-down mode saves energy when port is unused
  • Packaging manufactured with at least 80% recycled materials
  • Gigabit Power, 10/100 Simplicity
  • Connects up to 10x faster than Fast Ethernet for maximum performance
  • Up to 60% lower power consumption
  • Auto power-down mode saves energy when port is unused
  • Simple to combine Fast Ethernet and Gigabit devices in your network
  • Plug-and-play installation delivers ease of use
