Apc - Schneider Netshelter Cx 18u Secure Soundproofed Server Room In A Box Enclosure International Ar4018ia

SKU
230417
Brand
MPN
AR4018IA
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$7,819.00
Buy Now And Earn 7819 Reward Points!

AR4018IAFeatures

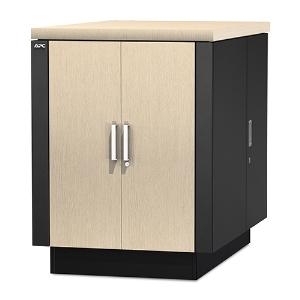

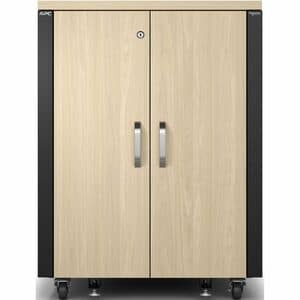

NetShelter CX 18U Secure Soundproof Server Room in a Box Enclosure International

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Adjustable equipment mounting rails
    The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
  • Dedicated rear cable access point
    The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
  • Integrated heat removal
    High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
  • Integrated power distribution
    Provided with a rack power distribution unit servers and other equipment are ready for deployment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Removable side panels
    Provides customers with easy accessibility to equipment.
  • Six vertical 0U accessory channels
    Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.

NetShelter CXFeatures & Benefits

Agility
  • Plug and Play setup
    Fast and Easy set up
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

Output

  • Nominal Output Voltage
    200V , 240V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    10
  • Output Connections
    (14) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V , 230V , 240V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC-320 C14
  • Input Power
    39.0Watts

Physical

  • Maximum Height
    1015mm , 101.5cm
  • Maximum Width
    750mm , 75.0cm
  • Maximum Depth
    1130mm , 113.0cm
  • Rack Height
    18U
  • Net Weight
    131.0kg
  • Shipping weight
    157.5kg
  • Shipping Height
    1250mm , 125.0cm
  • Shipping Width
    800mm , 80.0cm
  • Shipping Depth
    1200mm , 120.0cm
  • Color
    Grey , Oak
  • Maximum Mounting Depth
    880.0mm , 88.01cm
  • Minimum Mounting Depth
    28.35inches
  • Units per Pallet
    1.0
  • Rack Width
    19"
  • Weight Capacity (static load)
    830.0kg

Environmental

  • Protection Class
    IP 44

Conformance

  • Approvals
    EIA 19 Inch, TAA compliance
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
