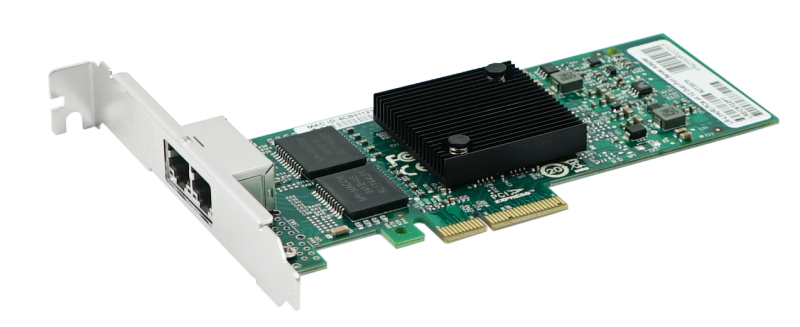

Upgrade your server's network capabilities with the NICPCIE-2RJ45-V2, a high-performance PCI Express x4 Dual Port Gigabit Server Adapter. Built upon the advanced Intel Ethernet Controller I350, this adapter is engineered to meet the demanding needs of modern enterprise and data centre environments. It introduces significant performance enhancements for both virtualised and iSCSI Unified Networking, delivering reliable, high-speed connectivity where it matters most.

This adapter excels in virtualised settings, incorporating Intel Virtualization Technology (Intel VT-c) to provide Flexible Port Partitioning (FPP) and Quality of Service (QoS) for up to 32 virtual ports. This allows for sophisticated traffic isolation and balanced bandwidth allocation, reducing CPU overhead and optimising network traffic management in virtual machine (VM) deployments. It provides the tools to create a more efficient, responsive, and organised virtual network infrastructure.

Experience superior iSCSI performance and cost-effective SAN connectivity. The adapter features native iSCSI initiators for major operating systems and hardware-based acceleration features like TCP segmentation offload and checksum offload. These capabilities work together to reduce processor utilisation and boost throughput. Furthermore, innovative power management technologies, including Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC), dramatically reduce power consumption during periods of low network activity without sacrificing performance.

Designed for broad compatibility and ease of use, the NICPCIE-2RJ45-V2 supports a wide range of network operating systems, including various versions of Windows, Linux, FreeBSD, and VMware. It features a versatile PCIe Gen 2.1 x4 interface operable in x4, x8, and x16 slots. Each package includes both full-height and low-profile brackets, ensuring a seamless fit in any server chassis. Remote boot options such as PXE and iSCSI Remote Boot further enhance its flexibility for deployment and management.

FEATURES

• Based on the high-performance bridgeless Intel Ethernet Controller I350
• Dual RJ45 copper ports for gigabit connectivity
• Flexible I/O virtualization with up to 32 virtual ports and SR-IOV support
• Scalable iSCSI performance for cost-effective SAN connectivity
• Advanced power management including Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC)
• TCP/UDP, IPv4, and IPv6 checksum offloads to reduce CPU load
• Supports jumbo frames up to 9.5K Bytes
• Intel PROSet Utility for advanced configuration and management
• Ships with both full-height and low-profile brackets

SPECIFICATIONS

• Product Code: NICPCIE-2RJ45-V2
• Controller: Intel I350AM2
• Bus Type: PCI Express V2.1 (5GT/s)
• Bus Width: 4-lane PCI Express, operable in x4, x8, x16 slots
• Data Rate Per Port: 10/100/1000Mbps
• Ports: 2 x RJ45
• Power Consumption (Typical): 6.0W
• IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3x, 802.3z, 802.1q, 802.3az
• Virtualization Support: Intel VT-c, SR-IOV, VMDq, Flexible Port Partitioning
• Operating Temperature: 0 C to 55 C
• Storage Temperature: -40 C to 70 C
• Operating System Support: Windows (XP, Vista, 7, 8, 8.1, Server 2003-2012 R2), Linux, FreeBSD, VMware, Xen4

WARRANTY

1-Year Limited Warranty
