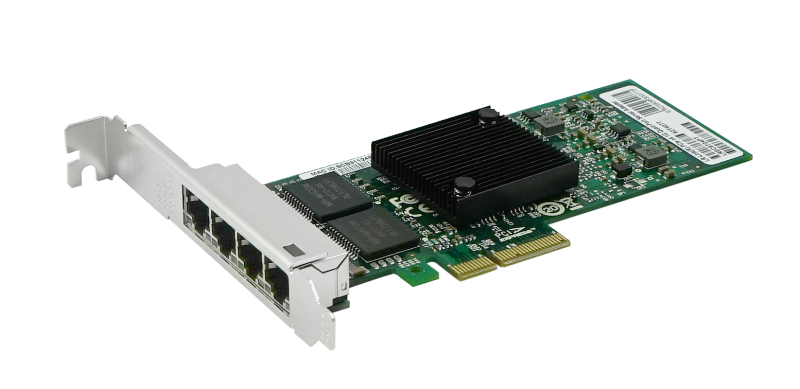

Upgrade your enterprise and data centre networking with the NICPCIE-4RJ45 Quad Port Gigabit Server Adapter. Built upon the reliable and high-performing bridgeless Intel I350 Ethernet Controller, this adapter is engineered for the next generation of networking. It delivers significant performance enhancements in both virtualised and iSCSI Unified Networking environments, ensuring scalable and efficient data transfer for demanding server applications.

This adapter introduces advanced power management technologies, including Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC). These features work together to dramatically reduce power consumption during periods of low network activity, lowering operational costs and environmental impact without sacrificing performance. When traffic increases, the adapter seamlessly returns to full power to handle the load, providing an optimal balance of efficiency and capability.

Experience unparalleled I/O virtualisation with Intel VT-c technology. The adapter supports Flexible Port Partitioning (FPP) and the PCI-SIG SR-IOV specification, allowing administrators to create up to 32 virtual ports from the four physical ports. This enables sophisticated traffic isolation, quality of service (QoS) management, and reduced CPU overhead in virtual machine (VM) environments, making it a perfect solution for complex server deployments.

Designed for maximum compatibility and ease of use, the NICPCIE-4RJ45 supports a vast range of network operating systems, including various versions of Windows, Linux, and VMware. The package includes both full-height and low-profile brackets, ensuring it can be installed in a wide array of server chassis. With features like TCP segmentation offload and support for jumbo frames up to 9.5KB, this adapter accelerates network traffic for superior throughput.

FEATURES

• Based on the high-performance Intel Ethernet Controller I350
• Halogen-free quad-port Gigabit Ethernet copper interface
• Advanced power management with Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC)
• Flexible I/O virtualisation for up to 32 virtual ports with QoS
• Scalable iSCSI performance for cost-effective SAN connectivity
• High-performing bridgeless design supporting PCI Express Gen 2.1 (5GT/s)
• Support for jumbo frames up to 9.5K Bytes
• Includes both low-profile and full-height installation brackets

SPECIFICATIONS

• Product Code: NICPCIE-4RJ45
• Controller: Intel Ethernet Controller I350
• Data Rate Per Port: 10/100/1000Mbps
• Bus Type: PCI Express 2.1 (5GT/s)
• Bus Width: 4-lane PCI Express, operable in x4, x8, x16 slots
• Virtualisation Support: Intel VT-c, PCI-SIG SR-IOV, Flexible Port Partitioning (FPP)
• Power Management: IEEE802.3az (EEE), DMA Coalescing
• Power Consumption (Typical): 6.0W
• Operating Temperature: 0 C to 55 C
• Storage Temperature: -40 C to 70 C
• Supported Operating Systems: Extensive support for Windows, Windows Server, Linux, FreeBSD, VMWare, and more

WARRANTY

1-Year Limited Warranty
