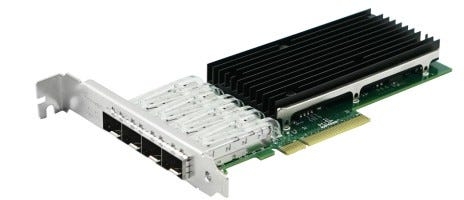

Boost your server's network performance with the NICPCIE-4SFP-10G, a high-performance PCIe x8 quad-port 10G SFP+ Ethernet adapter. Designed around the powerful Intel XL710 controller, this card is engineered to meet the demanding needs of next-generation data centres by delivering exceptional features for both server and network virtualisation, ensuring that system I/O is no longer a bottleneck for your high-end network applications.

This adapter provides four flexible 10GbE SFP+ ports, leveraging a PCI Express v3.0 x8 connection for maximum throughput. It is specifically built for multiprocessor systems, intelligently distributing network traffic across multiple CPU cores to enhance performance. By offloading processes like LSO and GSO from the host, it significantly reduces CPU overhead, freeing up valuable system resources to handle other critical applications and processes.

Reliability is a core feature of the NICPCIE-4SFP-10G. It supports link aggregation and fault tolerance, allowing you to bundle multiple ports together. If one port or cable fails, network traffic is automatically rerouted to the other members of the group, providing uninterrupted, high-performance communication and ensuring maximum uptime for mission-critical environments. This makes it an ideal solution for deploying multiple networks on high-performance servers.

Designed for versatile deployment, the adapter card includes both full-height and low-profile brackets to fit a wide variety of server chassis. It offers broad compatibility with numerous operating systems, including various versions of Windows, Linux, and VMware. With support for features like iSCSI, DPDK, and Jumbo Frames, this adapter provides the flexibility and power required for today's complex network infrastructures.

FEATURES

• Quad-port 10G SFP+ connectivity
• PCI Express 3.0 x8 interface for high-speed performance
• Based on the powerful Intel XL710 controller
• Advanced support for network virtualisation (VMDq, SR-IOV)
• PXE boot support for remote booting
• Support for iSCSI, DPDK, Jumbo Frames, and RSS
• IEEE 802.1q VLAN support with tag insertion
• Energy Efficient Ethernet (IEEE 802.3az) compliant
• Includes both low-profile and full-height mounting brackets

SPECIFICATIONS

• Controller: Intel XL710
• Bus Type: PCI Express v3.0 (8.0GT/s) x8, compatible with x16
• Data Rate Per Port: 10000MbE
• Connector: 4x SFP+
• Fibre Type: 10000Base-SR, 10000Base-LR, 10000Base-Cu
• Power Consumption: 7.4W
• Operating Temperature: 0 C to 55 C
• Storage Temperature: -40 C to 70 C
• Dimensions: 163mm x 120mm x 21mm
• Weight: 171g
• Standards Compliant: IEEE 802.3ae, IEEE 802.3x, IEEE 802.1AS, IEEE 802.1Q VLAN, IEEE 802.3ad, IEEE 1588, IEEE 802.3az
• System Support: Windows 7/8/8.1/10, Windows Server 2008R2/2012R2/2016R2/2019/2019R2, Linux (Kernel 3.x/4.x+), CentOS/RHEL (6.5/7.x+), Ubuntu (14.x/15.x/16.x+), VMware ESX/ESXi (4.x/5.x/6.x+)

WARRANTY

1-Year Limited Warranty
