Tenda (O6v2.0) 10km 5GHz 867Mbps Outdoor Outdoor Point To Point Cpe O6v2.0
SKU
397511
Brand
MPN
O6v2.0
Warranty
Standard Manufacturer's Warranty
$143.00
Buy Now And Earn 143 Reward Points!
Tenda O6 10km 5GHz 867Mbps Outdoor Outdoor Point to Point CPE
| Brand | Tenda |
|---|---|
| Model | O6 V2.0 |
| FCC ID | V7TO6V2 |
| Category | Networking |
| Warranty | 12 months (manufacturer listed on some sources) |
| Description | Tenda O6 V2.0 is a long-range 5GHz outdoor CPE designed for PtP and PtMP deployments such as wireless broadband access and video surveillance. It features a 16dBi dual-polarized directional antenna, 802.11ac (wave2) radio delivering up to 867 Mbps (P2P throughput up to 450 Mbps), a Gigabit Ethernet port, IP65-rated enclosure and 6000V lightning protection. The unit supports multiple operating modes (AP, Station, WISP, P2P/P2MP, Repeater/WDS), Tenda TD‑MAX (TDMA) for improved multi-client performance, adjustable transmit power, and centralized management via CPE Assistant. Includes PoE power adapter and quick installation guide. |
| Antenna Gain | 16 dBi |
| Antenna Type | Dual-polarized directional antenna |
| Sub-Category | Wireless Networking |
| Default Login | IP: 192.168.2.1 Password: admin Username: admin |
| Power Options | 802.3af/at PoE Passive PoE 24V 0.5A 12V 1A DC |
| Product Title | Tenda O6 V2.0 5GHz 16dBi 11ac Gigabit Outdoor CPE (PoE, IP65) |
| Voltage Range | 21-25 V DC (passive PoE range) |
| Certifications | FCC CE RoHS |
| LED Indicators | Power, PoE/LAN |
| Operating Modes | AP Station WISP (Client + Router) P2P P2MP WDS Repeater Universal Repeater Router |
| Shipping Weight | 0.2 kg (packaged, as listed) |

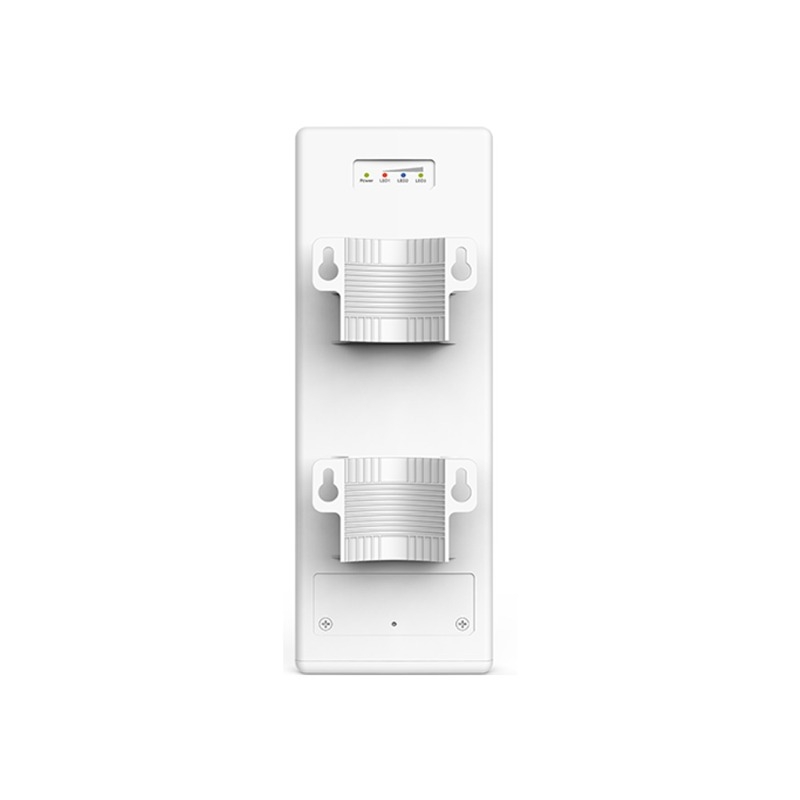

| Mounting Options | Pole mount (plastic straps included) and wall mount (expansion bolts and screws) |
| Network Features | VLAN tagging for SSID DHCP server VPN passthrough (PPTP, L2TP) Remote web access Backup/Restore configuration System logs Username management Network diagnostics (Ping, Traceroute, Signal Scan) Schedule reboot, Ping watchdog, Page timeout |
| Package Contents | 1 x 5 GHz 16 dBi 11AC Gigabit Outdoor CPE 1 x PoE power adapter 1 x Quick installation guide |
| Storage Humidity | 10% to 90% RH, non-condensing |
| Antenna Beamwidth | Horizontal 30°, Vertical 30° |
| Channel Bandwidth | 20 / 40 / 80 MHz |
| Power Consumption | 6.5 W (typical) |
| Wireless Security | WPA-PSK WPA2-PSK WPA & WPA2-PSK WEP (64/128) |
| Wireless Standard | IEEE 802.11a/n/ac (11ac, wave2) |
| Dimensions (WxHxD) | 270 x 94.86 x 67.5 mm |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Ports / Interfaces | 1 x 10/100/1000 Mbps Gigabit Ethernet (PoE) |
| Transmission Power | Adjustable by 1 dBm steps (firmware may enable higher max output) |
| Wireless Frequency | 5 GHz |
| EIRP (Max) by Range | 5150-5250 MHz (CH36-CH48): 22.98 dBm 5470-5725 MHz (CH100-CH116, CH132-CH140): 26.98 dBm |
| Passive PoE Details | Passive PoE via PoE/LAN pins (4,5 + ; 7,8 -), supports up to 60 m |
| Storage Temperature | -40 °C to 70 °C |
| Lightning Protection | 6000 V |
| Management / Software | CPE Assistant (centralized PC management); web-based management; firmware upgrade support |
| Maximum Wireless Rate | 867 Mbps (PHY) |
| Notes and Constraints | Do not power off during firmware upgrades; after firmware upgrades a factory reset is recommended. Some specifications (range, throughput) are test/condition dependent and listed values are from vendor materials. |
| Operating Temperature | -30 °C to 60 °C |
| Adapter Model / Output | BN060-P12024 / 24V 0.5A (listed on some sources) |
| Maximum P2P Throughput | Up to 450 Mbps (tested PtP) |
| Max Output Power (note) | Firmware update notes indicate maximum output power can be set to 25 dBm after applicable firmware upgrade (see firmware notes) |
| Firmware Versions and Notes | { "Notes": "Firmware V1.0.0.1 is specific to O6v2.0 and requires existing firmware V1.0.0.XX or later; do not power off during upgrade; reset to factory settings after upgrade. Update enables compatibility with FCC standard and can enable high output power feature (max output power configurable to 25 dBm).", "Versions Listed": "V1.0.0.1(6858)_EN", "File Size / Format": "7.10 MB, zip (contains .bin or .trx)" } { "Versions Listed": "V1.0.0.10 (software version listed on some sources)" } |
| Physical / Application Notes | Designed for long-range PtP and PtMP wireless connections (listed ranges up to 6 miles / ~10 km on some sources) — suitable for extending networks to remote buildings, surveillance systems, or private ISP/CPE deployments. |
| Enclosure / Weatherproof Rating | IP65 |
| Proprietary Protocols / Enhancements | TD-MAX (Tenda TDMA) for improved P2MP performance |
Tenda (O6v2.0) 10km 5GHz 867Mbps Outdoor Outdoor Point to Point CPE
