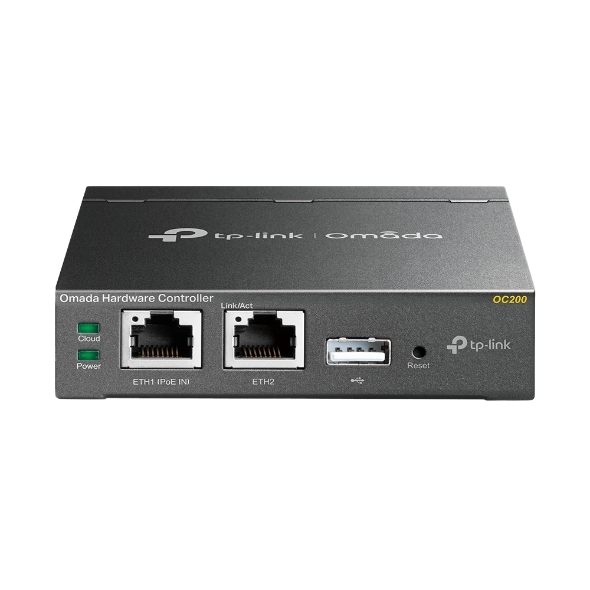

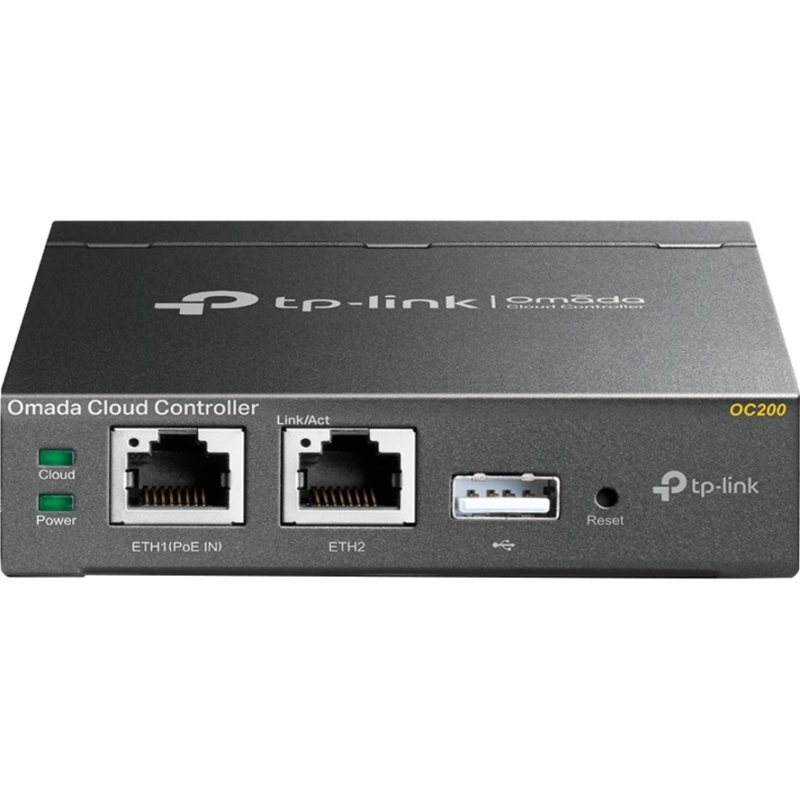

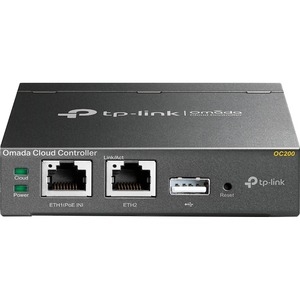

TP-Link Omada Cloud Controller, Centralized Management For Omada EAPs, Marvell, 2 Fast Ethernet Port, 1 USB 2.0 Port, 1 Mirco-USB Port, 5-Year Wty OC200
SKU
392408
Brand
MPN
OC200
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$238.00
Buy Now And Earn 238 Reward Points!
TP-Link Omada Cloud Controller, Centralized Management for Omada EAPs, Marvell, 2 Fast Ethernet Port, 1 USB 2.0 Port, 1 Mirco-USB Port, Powered by 802.3af PoE or Micro-USB Power Adapter, Desktop Steel Case, Wireless Network Configuration, RF Monitoring, Multi-Site Management, Auto Backup, Omada APP, Cloud Support
| SKU | OC200 |
|---|---|
| Brand | TP-Link |
| Model | OC200 |
| Ports | USB: 1 × USB 2.0 port (for auto backup) Ethernet: 2 × 10/100 Mbps (Fast Ethernet) ports Power Port: 1 × Micro USB (DC 5 V, minimum 1 A) |
| Category | Networking |
| Hardware | Color: Black Weight: Approximately 10.58 oz (≈300 g / 10.6 ounces listed) Chipset: Powerful chipset (manufacturer description) Dimensions: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) Chassis Material: Durable metal casing |
| Description | The TP-Link Omada OC200 is an on‑premises hardware controller for the Omada Software Defined Networking (SDN) platform. It provides centralized management for Omada access points, switches and routers via a single interface, with free cloud access and mobile app support for remote monitoring. The compact metal‑cased controller includes two 10/100 Mbps Ethernet ports, a USB 2.0 port for configuration backup, and a micro‑USB power port. It supports automatic device discovery, batch configuration and firmware upgrades, intelligent network monitoring, multi‑site management and captive portal authentication, making it suitable for small to medium business deployments. |
| Connectivity | Ethernet (wired), cloud management via Internet |
| Sub-Category | Device/Terminals/Ras Servers |
| Power Options | 802.3af/802.3at PoE-in (power through Ethernet) Micro USB (DC 5V / minimum 1A) |
| Product Title | TP-Link Omada OC200 Hardware Controller (On‑Premises SDN Controller) |
| Certifications | CE FCC RoHS |
| Additional Notes | USB 2.0 port can be used for automatic backup of configuration Hybrid cloud design allows remote cloud access while supporting local on‑premises management |
| Package Contents | Omada Hardware Controller OC200 Ethernet cable Quick Installation Guide |
| Management Capacity | Routers: Up to 10 Omada routers Switches: Up to 20 Omada/JetStream switches Access Points: Up to 100 Omada access points Switch Count Note: Number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added DeltaStream GPON OLTs: Supports certain DeltaStream GPON OLTs (up to 2) |
| Management Features | Cloud Access (free, no license fee) Omada App support On‑premises management Multi‑site management L3 management Automatic device discovery Batch configuration Batch firmware upgrading Intelligent network monitoring Abnormal event warnings/notifications Unified configuration Reboot scheduling Captive portal configuration |
| Pre-installed Software | Omada controller software (Omada SDN) |
| Alternate Capacity Notes | Some listings reference centralized management of up to 130 devices and up to 1,000 clients (marketing figure found in some product descriptions). |
| Environmental Specifications | Storage Humidity: 5–90% RH, non‑condensing Operating Humidity: 10–90% RH, non‑condensing Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–40 °C (32–104 °F) |
| Wireless Management Capabilities | Captive portal authentication (Facebook Wi‑Fi, SMS, voucher) Multi‑SSID Load balance Band steering Airtime fairness Beamforming Rate limit Wireless scheduling QoS Wireless MAC address filtering SSID-to-VLAN mapping Rogue AP detection Wireless client isolation |
| System Requirements / Compatibility | Management via Omada App or Web UI System requirements listed: Microsoft Windows (10/8/7/Vista/XP), macOS, NetWare, UNIX or Linux Hardware platform compatibility: Windows, Linux (management interfaces) |
TP-Link Omada Cloud Controller, Centralized Management for Omada EAPs, Marvell, 2 Fast Ethernet Port, 1 USB 2.0 Port, 1 Mirco-USB Port, 5-Year WTY
