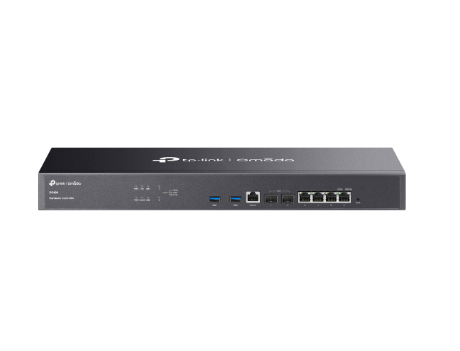

TP-Link Omada OC400 Hardware Controller OC400
SKU
428629
Brand
MPN
OC400
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,527.00 Regular Price $1,757.00
Buy Now And Earn 1527 Reward Points!
TP-Link Omada OC400 Hardware Controller,
PORT: 2× 10G SFP+ Slots, 4× 10/100/1000 Mbps Ethernet Ports, 2× USB 3.0 Port, 1× RJ45 Console Port
FEATURE: Cloud Access, Centralized Management for up to 1000 Omada EAPs, 200 Omada switchs and 100 Omada routers, Multi-site Management, Omada App, Metal casing, Rack-Mountable, Dual Redundant Power Supplies
PORT: 2× 10G SFP+ Slots, 4× 10/100/1000 Mbps Ethernet Ports, 2× USB 3.0 Port, 1× RJ45 Console Port
FEATURE: Cloud Access, Centralized Management for up to 1000 Omada EAPs, 200 Omada switchs and 100 Omada routers, Multi-site Management, Omada App, Metal casing, Rack-Mountable, Dual Redundant Power Supplies
| SKU | OC400 |
|---|---|
| Type | Hardware Controller / Network Management Device |
| Brand | TP-Link (Omada) |
| Color | Black |
| Flash | 4 MB NOR Flash |
| Model | OC400 |
| Notes | Refer to TP-Link/Omada device compatibility lists for supported Omada models and supported DeltaStream GPON OLTs. Vendor documentation recommends using up to two SM5310-T (TL-SM5310-T) modules with OC400. |
| Ports | USB: 2 × USB 3.0 RJ45: 4 × Gigabit SFP+: 2 × 10G SFP+ Console: 1 × Gigabit RJ45 |
| Memory | 8 GB DDR4 |
| Weight | 6.33 lb (shipping weight reported) |
| Buttons | 1 × Reset |
| Storage | 32 GB eMMC |
| Category | Networking |
| Processor | Quad-Core CPU |
| Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Interfaces | 2× 10G SFP+ ports 4× Gigabit RJ45 ports 1× Gigabit console (RJ45) port 2× USB 3.0 ports |
| Monitoring | Custom dashboard Performance and switch statistics Network topology Network map Device list Client list Insights Logs |
| Description | The TP-Link Omada OC400 is a rack-mountable SDN hardware controller for centralized management of Omada networks. It supports up to 1,000 Omada access points, 100 Omada routers and up to 200 Omada switches (support for switches decreases by 5 for each supported DeltaStream GPON OLT added; OC400 also supports a limited number of certain DeltaStream GPON OLTs). OC400 provides hybrid cloud access via the Omada app or Web UI, multi-site and multi-tenant management, automatic device discovery, batch configuration and firmware upgrades, and a customizable dashboard and topology view. Hardware highlights include 2× 10G SFP+ uplinks, 4× Gigabit RJ45 ports, 1× Gigabit console port, 2× USB 3.0 ports for backup, dual internal fixed redundant power supplies, a quad-core CPU with 8 GB DDR4 RAM, and onboard storage (32 GB eMMC, 4 MB NOR flash). |
| Environment | Storage Humidity: 5–90% RH non-condensing Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–40 °C (32–104 °F) |
| Form Factor | Rack-mountable |
| Cloud Access | Yes (Omada app / Web UI) |
| Fan Quantity | 1 |
| Product Line | Omada |
| Sub-Category | Networking |
| Product Title | TP-Link Omada OC400 Hardware Controller |
| Processor Speed | 2.2 GHz (reported) |
| Package Contents | Omada Hardware Controller OC400 Quick Installation Guide Ethernet cable Power cord Rackmount kit |
| Power Supply Input | 100–240 V ~ 50/60 Hz AC |
| Management Features | Multi-tenant Management (role/site/device privileges) Automatic device discovery Batch configuration Batch firmware upgrading Site/controller migration Account management Backup & restore (including auto backup) Customized UI interface Online upgrade Reboot schedule, PoE schedule, WLAN schedule Custom dashboard, network topology and network map, device and client lists, insights, logs |
| Multi-site Management | Yes |
| Redundant Power Supplies | 2 × internal fixed power supplies |
| Certifications / Standards | CE FCC RoHS |
| Remote Management & Protocols | Management Protocols: [ "RADIUS", "SNMP", "SSH" ] Transport / VPN Protocols (reported): [ "DDNS", "IPSec", "L2TP", "OpenVPN", "PPTP", "WireGuard" ] |
| Centralized Management Capacity | Routers: 100 Switches: 200 Access Points: 1000 DeltaStream GPON OLTs (supported): Up to 10 certain DeltaStream GPON OLTs (see vendor list) |
| System Requirements / Supported OS | Microsoft Windows (10, 8, 7, Vista, XP) macOS Linux NetWare UNIX |
TP-Link Omada OC400 Hardware Controller
