Cyberpower Online S 6000VA/6000W 5U Rackmount UPS - 12V/7Ah*20 - Hardwire Terminal Block,Serial Port-(OLS6KERT5U),2 Yrs Adv. Replacement Wty OLS6KERT5U
SKU
415658
Brand
MPN
OLS6KERT5U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$4,180.00
Buy Now And Earn 4180 Reward Points!
CYBERPOWER Online S 6000VA/6000W 5U Rackmount UPS - 12V/7AH*20 - Hardwire Terminal Block, USB & Serial Port & SNMP Slot(OLS6KERT5U)2 Yrs Adv. Replacement WTY
| LCD | Type: Color LCD Orientation: Tiltable / rotatable (tiltable 15°) Display_Info: [ "Operation Type", "Power Status", "Battery Status", "Load Status", "Fault & Warning", "Event & Log" ] LCD_Settings: [ "Mode Setting", "Alarm Setting", "Input & Output", "Battery Setting", "Fault & Warning", "Communication", "Event & Log", "Security Setting" ] |
|---|---|
| SKU | OLS6KERT5U |
| Brand | CyberPower |
| Color | Black |
| Model | OLS6KERT5U |
| Category | Power and Rack Equipment |
| Weight_kg | 69 |
| Capacity_VA | 6000 VA |

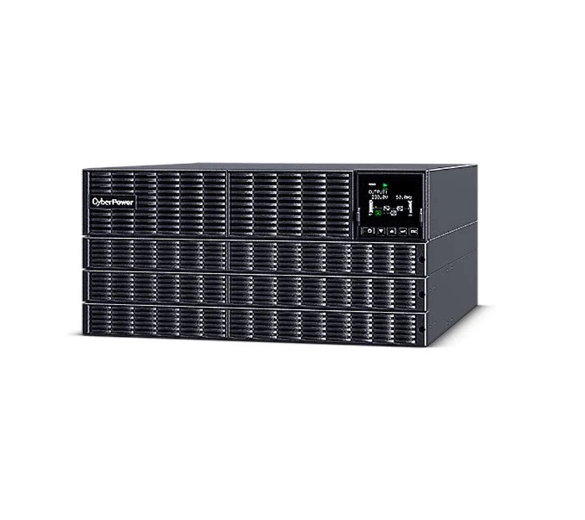

| Description | The CyberPower OLS6KERT5U is a 6 kVA / 6 kW online double-conversion UPS designed for mission-critical IT and infrastructure applications. It delivers pure sine wave output with a 1.0 output power factor and zero transfer time, supporting servers, NAS, surveillance systems and data center equipment. The compact 5U rack/tower convertible design includes a pre-installed maintenance bypass PDU for safe service, a tiltable color LCD for intuitive local management, built-in Remote Cloud Card (Ethernet) for cloud monitoring, relay-type dry contact and EPO for event control, and supports parallel expansion up to 4 units and up to 10 external battery modules for extended runtime. Batteries are user-replaceable and hot-swappable (qualified personnel), charging current is adjustable via the LCD, and advanced power management is available through PowerPanel software and PowerPanel Cloud. |
| Form_Factor | Rackmount / Tower convertible |
| Crest_Factor | 3:1 |
| Outlet_Types | Hardwire Terminal Block ×1 IEC C13 ×4 IEC C19 ×4 |
| Power_Factor | 1.0 |
| Product Type | Double Conversion Online UPS |
| Sub-Category | Power Equipment |
| UPS_Topology | Online (Double Conversion) |
| Dimensions_mm | Depth: 661 Width: 433 Height: 213.5 |
| Hot_Swappable | Yes - Qualified Personnel Only |
| Outlets_Total | 9 |
| Product Title | CyberPower OLS6KERT5U Online Double-Conversion UPS - 6000VA / 6000W (Rack/Tower, 5U) |
| Audible_Alarms | Battery Mode Low Battery Overload Overcharge Overheat UPS Fault Replace Battery |
| Capacity_Watts | 6000 W |
| Certifications | CE TISI |
| RoHS_Compliant | Yes |
| Internal_Bypass | Automatic bypass, manual bypass |
| Management_Ports | USB: HID-compliant USB ×1 Serial: RS232 EPO_Port: Yes Ethernet: Built-in Remote Cloud Card (Ethernet); SNMP/HTTP remote monitoring with optional RMCARD205 Dry_Contact_Relay: Yes |
| Start_On_Battery | Yes |
| Remote_Management | PowerPanel_Cloud: 30 days UPS trial + 3 years Remote Cloud Card service (per manufacturer info) PowerPanel_Software: PowerPanel Business (recommended) BuiltIn_Remote_Cloud_Card: Yes (Ethernet) |
| Storage_Elevation | 0 ~ 49,213 ft (0 ~ 15,000 m) |
| EMI_RFI_Filtration | Yes |
| Enclosure_Material | Metal |
| Input_Frequency_Hz | 50 / 60 (auto-sensing) |
| Input_Power_Factor | 0.99 |
| Maintenance_Bypass | Yes (pre-installed Maintenance Bypass PDU) |
| Shipping_Weight_kg | 86.8 |
| On_Battery_Waveform | Pure Sine Wave |
| Operating_Elevation | 0 ~ 4,921 ft (0 ~ 1,500 m) |
| Overload_Protection | General: Internal current limiting, circuit breaker, fuse Line_Mode: 105~130% load for 10 sec; >130% load for 1.5 sec Bypass_Mode: 110~120% load for 30 min; 120~130% load for 2 min; 130~150% load for 15 sec; >150% load immediate Battery_Mode: 105~130% load for 10 sec; >130% load for 1.5 sec |
| Accessories_Included | Detachable Maintenance Bypass PDU Rackmount rail Rackmount ears Rail kit Screw kit Power cord(s) USB cable Parallel cable User's manual |
| Input_Connector_Type | Hardwire Terminal Block |
| On_Battery_Frequency | 50 ± 0.5% Hz; 60 ± 0.5% Hz |
| Battery_Configuration | 12V / 7Ah × 20 |
| Rated_Input_Current_A | 30 |
| Runtime_Full_Load_min | 5.3 |
| Runtime_Half_Load_min | 17 |
| Storage_Temperature_C | -15 ~ 45 |
| Output_Voltage_Options | 200 ± 1% Vac 208 ± 1% Vac 220 ± 1% Vac 230 ± 1% Vac 240 ± 1% Vac |
| Output_Voltage_Setting | Configurable |
| Shipping_Dimensions_mm | Depth: 890 Width: 575 Height: 489 |
| Audible_Noise_dBA_at_1m | 62 |
| Input_Voltage_Range_Vac | 110 ~ 300 |
| Installed_Rack_Height_U | 5U |
| Operating_Temperature_C | 0 ~ 40 |
| Energy_Saving_Technology | ECO Mode (Efficiency > 98%) |
| Output_Frequency_Setting | Configurable |
| Replacement_Battery_Pack | RBP0192 |
| Smart_Battery_Management | Yes |
| Surge_Suppression_Joules | 1335 |
| Typical_Transfer_Time_ms | 0 |
| Input_Nominal_Voltage_Vac | 230 |
| Maximum_Charging_Current_A | 4 |
| User_Replaceable_Batteries | Yes |
| Typical_Recharge_Time_hours | 4 |
| Max_Extended_Battery_Modules | 10 |
| Parallel_Expansion_Max_Units | 4 |
| Adjustable_Charging_Current_A | 1 ~ 4 |
| Adjustable_Input_Voltage_Range | 0~50% load for 110~144 Vac; 0~75% load for 145~179 Vac; 0~100% load for 180~300 Vac |
| Harmonic_Distortion_Linear_Load | THD < 1.5% |
| Replacement_Battery_Pack_Quantity | 2 |
| Storage_Relative_Humidity_percent | 0 ~ 95 |
| Compatible_Extended_Battery_Module | BPS240V7ART3U |
| Harmonic_Distortion_NonLinear_Load | THD < 2% |
| Operating_Relative_Humidity_percent | 0 ~ 95 |
| Online_Thermal_Dissipation_BTU_per_hr | 1777 |
CYBERPOWER Online S 6000VA/6000W 5U Rackmount UPS - 12V/7AH*20 - Hardwire Terminal Block,Serial Port-(OLS6KERT5U),2 Yrs Adv. Replacement WTY
