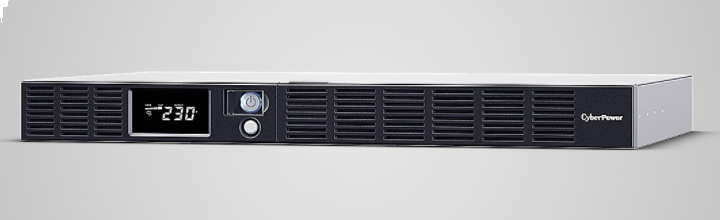

CyberPower Smart App Office Rackmount Series LCD 1000VA / 600W 1U Line Interactive UPS(OR1000ERM1U) 2 Yrs Adv. Rep & 2yrs On Int. Battery OR1000ERM1U
SKU
298060
Brand
MPN
OR1000ERM1U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $597.00 Regular Price $686.00
Buy Now And Earn 597 Reward Points!
QUICK OVERVIEW
2 Yrs Adv. Rep & 2yrs on Int. Battery
GENERAL
UPS Topology: Line-Interactive
Energy Saving: GreenPower UPSâ„¢ Bypass Technology
INPUT
Voltage: 230Vac
Input Voltage Range: 160Vac - 270Vac
Input Frequency Range: 50/60Hz ± 3Hz (Auto-sensing)
Plug Type: IEC 320 C14
OUTPUT
VA: 1000
Watts: 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage: 230Vac ± 10%
Automatic Voltage Regulation (AVR): Single Boost
On Battery Frequency: 50/60Hz ± 1%
Outlets - Total: 6
Outlet Type: IEC 320 C13
Outlets - Battery & Surge Protected: 4
Outlets - Surge-Only Protected: 2
Transfer Time: 4-8ms(typical)
BATTERY
Runtime at Half Load (min): 14
Runtime at Full Load (min): 3.5
Battery Type: Sealed Lead Acid
User Replaceable: Yes
Hot-Swappable: Yes
Typical Recharge Time: 8 hrs
Replacement Battery Pack: RBP0025
Replacement Battery Pack Quantity:1
PHYSICAL
Form Factor: Rack
PHYSICAL - UPS MODULE
Dimensions (WxHxD) (mm.): 433 x 44 x 389
Weight (kg.): 13.7
Installed Rack Height: 1U
UPS Topology: Line-Interactive
Energy Saving: GreenPower UPSâ„¢ Bypass Technology
INPUT
Voltage: 230Vac
Input Voltage Range: 160Vac - 270Vac
Input Frequency Range: 50/60Hz ± 3Hz (Auto-sensing)
Plug Type: IEC 320 C14
OUTPUT
VA: 1000
Watts: 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage: 230Vac ± 10%
Automatic Voltage Regulation (AVR): Single Boost
On Battery Frequency: 50/60Hz ± 1%
Outlets - Total: 6
Outlet Type: IEC 320 C13
Outlets - Battery & Surge Protected: 4
Outlets - Surge-Only Protected: 2
Transfer Time: 4-8ms(typical)
BATTERY
Runtime at Half Load (min): 14
Runtime at Full Load (min): 3.5
Battery Type: Sealed Lead Acid
User Replaceable: Yes
Hot-Swappable: Yes
Typical Recharge Time: 8 hrs
Replacement Battery Pack: RBP0025
Replacement Battery Pack Quantity:1
PHYSICAL
Form Factor: Rack
PHYSICAL - UPS MODULE
Dimensions (WxHxD) (mm.): 433 x 44 x 389
Weight (kg.): 13.7
Installed Rack Height: 1U
| SKU | OR1000ERM1U |
|---|---|
| Brand | CyberPower |
| Color | Silver / Black |
| Model | OR1000ERM1U |
| Weight | 13.7 kg |
| Display | Multifunction LCD |
| Outlets | 6 x IEC C13 |
| Topology | Line-Interactive |
| Waveform | Simulated sine wave |
| Capacity VA | 1000 VA |
| Description | The CyberPower OR1000ERM1U is a 1U rackmount, line-interactive UPS providing 1000 VA / 600 W of backup and power conditioning for office and server-room equipment. It features Automatic Voltage Regulation (AVR), simulated sine wave output, a multifunction LCD for real-time input/output, load and battery status, and hot-swappable sealed lead‑acid (VRLA) batteries for simple maintenance. Protection includes surge/spike and EMI/RFI filtering plus network/phone/modem protection. Management options include a USB port with CyberPower PowerPanel software and optional SNMP/HTTP remote management. Rackmount ears, power cord, USB cable and user documentation are included; replacement battery pack is RBP0025. |
| Form Factor | 1U rackmount (rack/tower convertible) |
| Cable Length | 1.83 m |
| Power Factor | 0.6 |
| Product Title | CyberPower OR1000ERM1U 1000VA (600W) Line-Interactive 1U Rackmount UPS - 6x IEC C13 |
| Recharge Time | 8 hours |
| Response Time | 4 ms |
| Audible Alarms | Fault, Low battery, Overload |
| Output Power W | 600 W |
| Output Voltage | 230 V |
| Input Frequency | 50/60 Hz |
| Battery Capacity | 505 VAh |
| Housing Material | Metal |
| Output Frequency | 50/60 Hz |
| Surge Protection | Yes |
| Country of Origin | China |
| EMI/RFI Filtering | Yes |
| Battery Technology | Sealed Lead Acid (VRLA) |
| Operating Altitude | 0 - 3000 m |
| Input Voltage Range | 165 - 271 V |
| Storage Temperature | -15 to 45 °C |
| Surge Energy Rating | 810 J |
| Typical Backup Time | Approx. 14 minutes at half load; ~3.5 minutes at full load |
| Included Accessories | Rackmount ears Power cord USB cable User's manual Product registration card (varies by region) |
| Hot-swappable Battery | Yes |
| Operating Temperature | 0 to 40 °C |
| Dimensions (W x H x D) | 433 x 44 x 389 mm |
| Non-operating Altitude | 0 - 15000 m |
| Replacement Battery Pack | RBP0025 |
| Management & Connectivity | USB port; PowerPanel management software; optional SNMP/HTTP remote management card |
| Power Protection Features | Overload protection, surge/spike protection, EMI/RFI filtration |
| Storage Relative Humidity | 0 - 95% |
| Certifications & Compliance | CE, EAC, RCM, RoHS |
| Operating Relative Humidity | 0 - 95% |
| Number of Batteries Supported | 1 |
| Automatic Voltage Regulation (AVR) | Yes |
CyberPower Smart App Office Rackmount Series LCD 1000VA / 600W 1U Line Interactive UPS(OR1000ERM1U) 2 Yrs Adv. Rep & 2yrs on Int. Battery
