HPE DL380 G10+ 4310 MR416i-p NC 8SFF Svr P55246-B21
SKU
393265
MPN
P55246-B21
Warranty
Standard Manufacturer's Warranty
$25,531.00
Buy Now And Earn 25531 Reward Points!

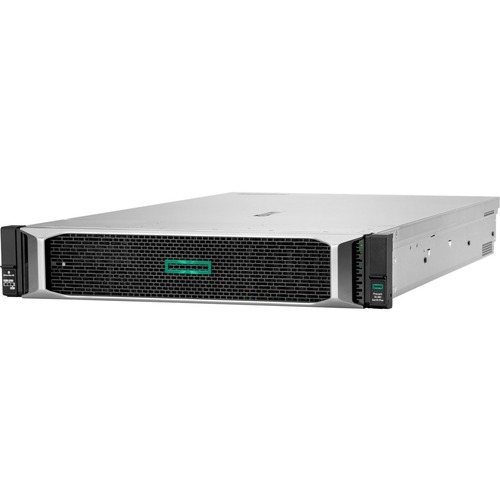

HPE DL380 G10+ 4310 MR416i-p NC 8SFF Svr
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
 |
Guides & Documents
-
Brochure
Display & Graphics
| Graphics Memory Capacity | 16 MB |
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Warranty
| Additional Warranty Information | 3-year onsite support with next business day response. |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
Storage
| Optical Drive Type | No |
| Number of Hard Drives | No |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | MR416i-p |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 3 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 3 PCIe: x8/x16/x8 PCIe 4.0 |
Physical Characteristics
| Weight (Approximate) | 28.77 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 87.5 mm |
| Width | 445.4 mm |
| Depth | 710 mm |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | No |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 5 |
Memory
| Maximum Memory Supported | 2 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
General Information
| Product Type | Server |
| Manufacturer Part Number | P55246-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL380 G10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL380 G10 Plus |
| Brand Name | HPE |
Processor
| Cache | 18 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
Operating System
| Operating System | No |
| Operating System Supported | Windows Server 2016 Datacenter |
| Windows Server 2016 Essential | |
| Windows Server 2019 Standard | |
| Hyper-V | |
| Red Hat Enterprise Linux 8.2 | |
| Ubuntu 20.04 LTS | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Essentials | |
| Red Hat Enterprise Linux 7.9 | |
| Windows Server 2016 Standard | |
| SUSE Linux Enterprise Server 12 SP5 |
