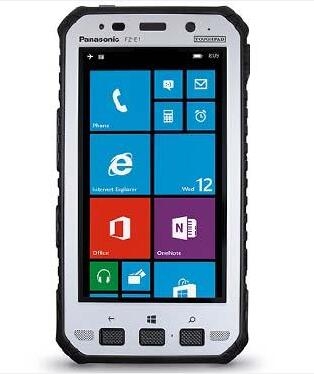

Panasonic Toughpad Fz-E1 (5" ) Mk1 With Barcode Reader & Hand Strap (Win 10 Iot) Fz-E1Dmcap7A
No Longer Available
FZ-E1
The Toughpad FZ-E1 brings together the best of handheld, smartphone and Barcode reader* functionality into a single rugged and hard working 5 tablet. It is one of the first devices in the Toughpad line to offer voice connectivity and has been designed for mobile workers in the transportation & logistics, postal services, defence, emergency & public safety, utilities, retail and manufacturing sectors.
Thanks to its fully-rugged design with MIL-STD-810G certification, IP68 ratings and 3 meter drop resistance the device is capable of operating in temperatures of -20°C to +60°C and promises a long life span and very low TCO. The user replaceable and hot swappable high capacity 6200mAh battery offers an amazing 14 hours of continuous data access; 23 hours talk time or 1000 hours in standby.
Along with the FZ-X1 Android™ Handheld version, the FZ-E1's state of the art Qualcomm® quadcore processor together with 2GB RAM guarantees high performance. The devices’ numerous unique enterprise-grade features include an integrated Barcode reader*, user configurable buttons and sunlight-readable, anti-reflective toughened HD touchscreen display that works even with heavy gloves.
It includes a rain-sensing feature that allows for single touch use even in pouring rain. The integrated high accuracy GPS functionality is ideal for field workers that require navigation in vehicles and pin-point location capabilities, with accuracy to between 2-4m. Configuration options are also available on project basis.
- Windows 10 IoT Mobile Enterprise
- 4G LTE / 3G Data and Voice capability
- Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
- 2 GB RAM and 32GB flash storage
- 5 HD (1280 x 720) daylight-readable display with Glove & Rain mode
- MIL-STD 810G certified with 3 meter drop** resistance
- IP68 rated (Submersible in water up to 1.5 meters for 30 minutes)
- -20°C to +60°C operating temperature
- User replaceable high capacity battery with hot swap function
- Up to 14 hours continous data access time; up to 23 hours talk time; up to 1000 hours standby time
- Integrated 1D/2D Barcode reader*
- Enterprise level security (FIPS140-2 level-1 compliant & Built-in ARM® TrustZone®)
*Optional
** Tested at Panasonic factory
On project basis only for Ireland
FZ-E1 ATEX
ATEX ZONE 2 CERTIFIED 5" HANDHELD TABLET WITH WINDOWS EMBEDDED 8.1 HANDHELD
The Toughpad FZ-E1 ATEX sets the new benchmark for outdoor handheld tablets making it ideal for workforce in ATEX Zone 2 environments. The oil and gas industry and other sectors sensitive to potential gas explosions now have access to a fully rugged Windows Embedded 8.1 Handheld tablet. With its capacitive multi-touch glove & rain enabled display, integrated Barcode reader, high capacity battery (6200 mAh) and 4G LTE Data & Voice capability, this all-in-one device can be used to read barcodes in ATEX environments whilst benefiting from connectivity options to ensure data and voice are always communicated.
- Windows Embedded 8.1 Handheld
- ATEX Zone 2 certified*
- 4G LTE / 3G Data and Voice capability
- Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
- 2 GB RAM and 32GB flash storage
- 5 HD (1280 x 720) daylight-readable display with Glove & Rain mode
- IP54** rated and MIL-STD 810G certified with 1 meter drop** resistance
- -20°C to +40°C operating temperature
- Up to 14 hours continuous data access time; up to 23 hours talk time; up to 1000 hours standby time
- Integrated 1D/2D Barcode reader
* Support ATEX Ex nA nC IIB T4 Gc. At ATEX Zone 2, need to use with leather cover, battery charging is not available, battery replacing is not available and connections are not available (USB cable / Cradle / headset / headset input jack).
**Not a guarantee against damage or malfunction.
Ecodesign Information under EU Regulation 801/2013, please visit here: www.ptc.panasonic.eu
- 5" HD (1280 x 720) daylight-readable display with Glove & Rain mode
- MIL-STD 810G Certified with 3 meter drop resistance
- IP68 Rated (Submersible in water up to 1.5 meters for 30 minutes)
- Up to 14 hours continous data access time
- Up to 1000 hours standby time
| odel | Toughpad FZ-E1 |
| Platform | Tablet |
| Classification | Consumer / Business / Gaming / Rugged |
| Operating System | Windows 10 IoT |
| Processor | Qualcomm MSM8974AB 2.3 GHz Quad-core processor |
| Chipset | Adreno 320 |
| Memory (Installed / Max) | 2GB / 2GB |
| Screen Size (Inches) | 5.0 |
| Max Resolution (H x V Pixels) | 1280 x 700 |
| Touch Capable | Yes |
| Touch Technology | Multi Touch (10 point) |
| Storage | 32GB eMMC |
| Speakers | Yes |
| Webcam | Yes |
| Wireless | 802.11ac |
| Bluetooth | Yes (V4.0) |
| Mobile Broadband | |
| Docking Station | Optional |
| Connectivity | Micro USB 2.0, Headset Jack (3.5mm) |
| Security | FIPS140-2 level-1 compliant, Built-in ARM TrustZone |
| Other Features | IP68 Sealed All Weather Design, MIL-STD-810G certified, BarCode Reader |
| Battery | 6 Cell (6200mAh) Lithium-Ion |
| Operation Time | Up to 14 Hours |
| Packaging | Bulk |
| Unit Dimensions (W x H x D mm) | 87.4 x 165 x 30.9 |
| Weight (Kg) | 0.432 |
⚫MIL-STD 810G Certified with 3 meter drop resistance
⚫IP68 Rated (Submersible in water up to 1.5 meters for 30 minutes)
⚫
⚫Up to 14 hours continous data access time
⚫Up to 1000 hours standby time
