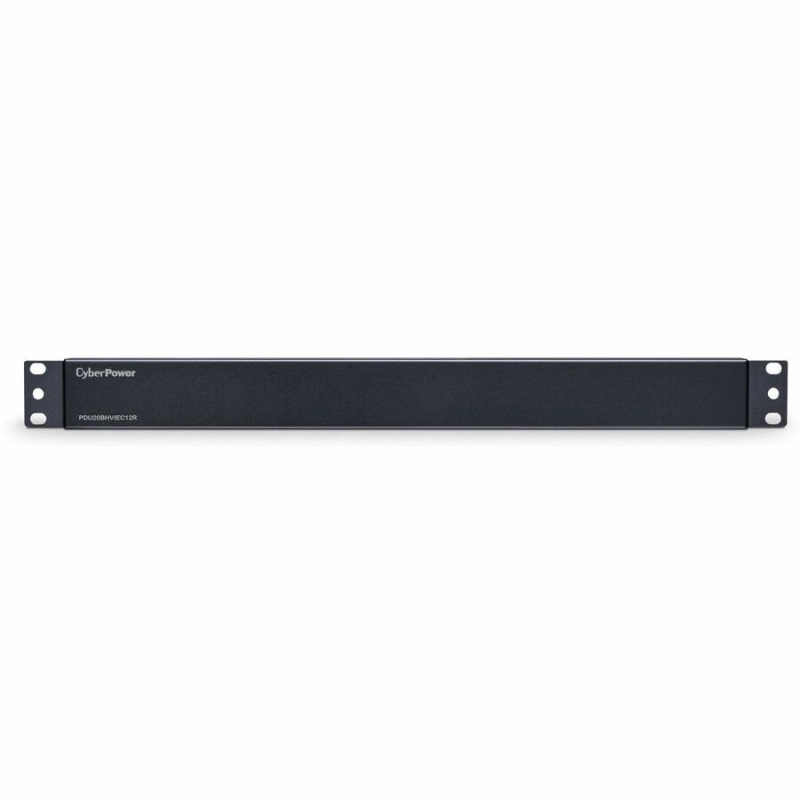

CyberPower Basic Pdu PDU20BHVIEC12R 1RU Horizontal 16Amp Iec-320 C20 Input - 12 Iec-320 (12-C13) Out - 2 Yrs- Eol And Replaced By PDU20BHVIEC12Ra PDU20BHVIEC12R
SKU
372903
Brand
MPN
PDU20BHVIEC12R
Warranty
Standard Manufacturer's Warranty
$539.00
Buy Now And Earn 539 Reward Points!
GENERAL
Type: Basic
Phase: Single Phase
INPUT
Nominal Input Voltage (Vac): 200 ~ 240
Input Frequency (Hz): 50/60
Maximum Input Current (A): 16
Input Connector Type: IEC C20x1
Power Cord Length (m.): 3.05
OUTPUT
Output Voltage (V): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank)(A):16
Outlet(s)-Total: 12
Outlet(s)-Rear: 12
Outlet Type: IEC C13x12
PHYSICAL
Form Factor:1U Vertical Rackmount , 1U Horizontal Rackmount , Undercounter Installation Supported
Enclosure Construction: Steel
Color: Black
Cord Retention Tray: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 2 Set (L-short, L-long)
PHYSICAL SIZE
Dimensions (WxHxD) (mm.): 445 x 44.5 x 38.1
Weight (kg.): 0.9
SHIPPING DIMENSIONS
Dimensions (WxHxD) (mm.): 530 x 233 x 330
Weight (kg.): 15
Type: Basic
Phase: Single Phase
INPUT
Nominal Input Voltage (Vac): 200 ~ 240
Input Frequency (Hz): 50/60
Maximum Input Current (A): 16
Input Connector Type: IEC C20x1
Power Cord Length (m.): 3.05
OUTPUT
Output Voltage (V): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank)(A):16
Outlet(s)-Total: 12
Outlet(s)-Rear: 12
Outlet Type: IEC C13x12
PHYSICAL
Form Factor:1U Vertical Rackmount , 1U Horizontal Rackmount , Undercounter Installation Supported
Enclosure Construction: Steel
Color: Black
Cord Retention Tray: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 2 Set (L-short, L-long)
PHYSICAL SIZE
Dimensions (WxHxD) (mm.): 445 x 44.5 x 38.1
Weight (kg.): 0.9
SHIPPING DIMENSIONS
Dimensions (WxHxD) (mm.): 530 x 233 x 330
Weight (kg.): 15
| EAN | 4712364144387 |
|---|---|
| MPN | PDU20BHVIEC12R |
| SKU | PDU20BHVIEC12R |
| Type | Basic |
| Brand | CyberPower |
| Color | Black |
| Model | PDU20BHVIEC12R |
| Notes | Sources vary on certain fields (warranty duration, exact maximum/regulatory current and some shipping weights/dimensions). Product specifications above reflect the consolidated values reported across multiple vendor and manufacturer listings. |
| Phase | Single Phase |
| Series | Basic |
| Category | Power and Rack Equipment |
| Warranty | Manufacturer listing varies (manufacturer materials list a limited lifetime warranty; several retailer listings report a 2-year limited warranty). |
| Base Type | Basic Rackmount PDU |

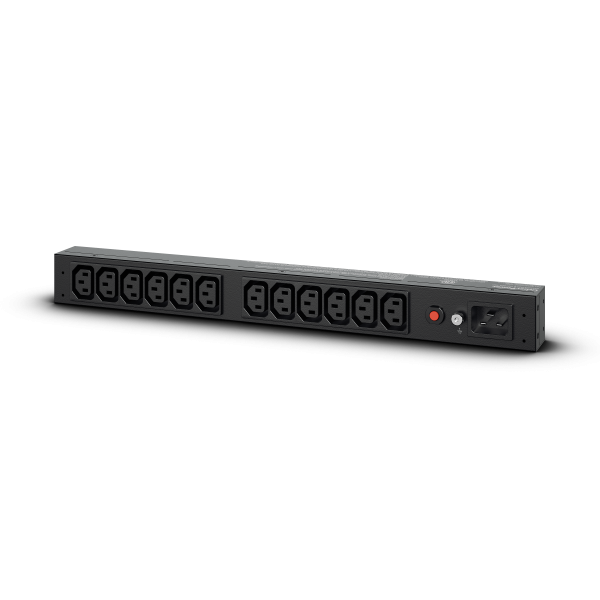

| Description | The CyberPower PDU20BHVIEC12R is a 1U basic rackmount power distribution unit designed for datacenter and IT environments. It distributes power from a single IEC-320 C20 input to twelve IEC-320 C13 rear outlets with unfiltered pass-through and circuit breaker protection. The rugged industrial-grade steel housing supports horizontal or vertical 1U mounting (including 0U vertical/undercounter installations), and includes an adjustable mounting bracket set and cord retention tray. It ships with a 10 ft (3.05 m) input cord and is certified to common safety and environmental standards. |
| Form Factor | 1U Horizontal Rackmount; 1U Vertical / 0U Vertical Rackmount; Undercounter supported |
| Outlet Type | IEC-320 C13 x 12 (rear) |
| Weight (kg) | 0.9 |
| Weight (lb) | 2 |
| Sub-Category | Power Equipment |
| Product Title | CyberPower PDU20BHVIEC12R 1U Rackmount Basic PDU — 12x IEC-320 C13 (Rear), IEC-320 C20 Input, 200–240VAC, 10 ft Cord |
| Total Outlets | 12 |
| Certifications | RoHS CE UL60950 UL62368 ETL CSA C22.2 |
| Outlets - Rear | 12 |
| Cord Length (m) | 3.05 |
| Input Connector | IEC-320 C20 (IEC C20) x 1 |
| Rack Height (U) | 1U |
| Cord Length (ft) | 10 |
| What's In The Box | PDU (PDU20BHVIEC12R) Cord retention tray Mounting brackets (horizontal and vertical) Screw kit Cord clip kit / cable ties User's manual Product registration card |
| Enclosure Material | Industrial-grade steel / metal |
| Cord Retention Tray | Yes |
| Overload Protection | Circuit breaker (20A capacity; commonly derated to 16A per regulatory ratings) |
| Input Frequency (Hz) | 50 / 60 |
| Output Voltage (VAC) | Depends on input (200–240 VAC) |
| Storage Elevation (m) | 0 ~ 15000 |
| IEC Receptacle Locking | Yes (locking feature noted by some sources) |
| Storage Elevation (ft) | 0 ~ 49,213 |
| Dimensions (WxHxD) (in) | 17.5 x 1.75 x 1.5 |
| Dimensions (WxHxD) (mm) | 445 x 44.5 x 38.1 |
| Operating Elevation (m) | 0 ~ 3000 |
| External Site Ground Pin | Yes |
| Manufacturer Part Number | PDU20BHVIEC12R (AL-1889947) |
| Operating Elevation (ft) | 0 ~ 9,843 |
| Maximum Input Current (A) | 20 |
| Storage Temperature (°C) | -15 ~ 45 |
| Storage Temperature (°F) | 5 ~ 113 |
| Nominal Input Voltage (VAC) | 200 ~ 240 |
| Operating Temperature (°C) | 0 ~ 35 |
| Operating Temperature (°F) | 32 ~ 95 |
| Adjustable Mounting Brackets | 2 sets (L-short, L-long) |
| Regulatory / Derated Input Current (A) | 16 (regulated/UL/CE ratings) |
| Storage Relative Humidity (Non-condensing) (%) | 0 ~ 95 |
| Operating Relative Humidity (Non-condensing) (%) | 0 ~ 95 |
CyberPower Basic PDU PDU20BHVIEC12R 1RU horizontal 16Amp IEC-320 C20 input - 12 IEC-320 (12-C13) Out - 2 Yrs- EOL and replaced by PDU20BHVIEC12Ra
