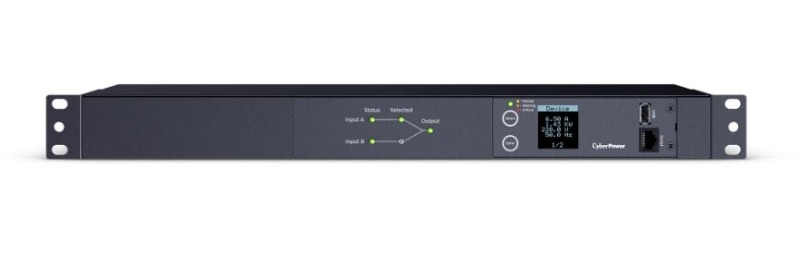

CyberPower 1U 10amp Metered Automatic Transfer Switch-(PDU24004) – 12x Iec C13 Out – Iec 320 C14*2 In - 2 Yrs Adv. Replacement Wty-(No Snmp Network Function PDU24004
SKU
393046
Brand
MPN
PDU24004
Warranty
Standard Manufacturer's Warranty
$701.00
Buy Now And Earn 701 Reward Points!
CyberPower 1U 10amp Metered Automatic Transfer Switch-(PDU24004) – 12x IEC C13 out – IEC 320 C14*2 in - 2 Years Advanced Replacement Warranty - (No SNMP network function)
| LCD | Multifunction color-configurable, hot-swappable |
|---|---|
| SKU | PDU24004 |
| Type | Metered ATS PDU |
| Brand | CyberPower |
| Color | Black |
| Model | PDU24004 |
| Weight | kg: 3.5 kg lb: 7.7 lb |
| Features | Automatic Transfer Switch (ATS) with dual power inputs Real-time local monitoring Quick transfer time (<10 ms) Digital real-time load display Hot-swappable LCD module User-configurable LCD colors Firmware upgradeable via USB IEC receptacle locking Cord retention tray Adjustable mounting brackets Industrial-grade metal housing |
| Warranty | 3 Year Limited Warranty |
| Rack Units | 1U |
| Description | The CyberPower PDU24004 is a 1U metered Automatic Transfer Switch (ATS) PDU designed for data centers, server rooms and network closets. Dual IEC C14 power inputs provide redundant power to single-corded equipment and the ATS automatically switches between sources (source detection 2–3 ms; transfer time 2–7 ms; total <10 ms) to maintain continuous operation. A hot-swappable, color-configurable LCD provides real-time monitoring of input voltage, frequency, current (A) and power (W); firmware is user-upgradeable via USB. Local management and configuration are supported via a serial port (RJ45/DB9) and CLI. The unit features 12 IEC C13 outlets, industrial-grade metal housing, cord-retention tray and adjustable rack-mount brackets. Includes mounting hardware, power cords, serial cable and user manual. Covered by a limited warranty. |
| Form Factor | 1U horizontal rackmount |
| Outlet Banks | 1 |
| Product Title | CyberPower PDU24004 1U Metered ATS PDU, 200–240V, 12 x IEC C13 |
| LED Indicators | PDU status Source status Selected source Load Normal/Warning/Critical |
| Transfer Times | Total Transfer Time: <10 ms Power Source Transfer Time: 2–7 ms Source Failure Detection Time: 2–3 ms |
| Certainty Notes | Specifications consolidated from multiple manufacturer and reseller sources; values reflect majority/cross-source agreement. |
| Input Connector | 2 x IEC-320 C14 |
| Input Frequency | 50/60 Hz |
| Shipping Weight | kg: 5.7–5.8 kg lb: 12.6–12.8 lb |
| Firmware Upgrade | USB (user-upgradeable) |
| Housing Material | Steel / Metal |
| Management Ports | Serial (RJ45) with DB9 cable included; CLI support |
| Power Cord Length | 10 ft (3.0 m) |
| Storage Elevation | 0–15,000 m (0–49,213 ft) |
| What's in the Box | PDU unit (PDU24004) Cord retention tray Adjustable mounting brackets Mounting screw kit Cable ties (2) IEC power cords RJ45/DB9 serial connection cable User’s manual |
| Dimensions (WxHxD) | mm: 433 x 44 x 215 mm inches: 17.05 x 1.75 x 8.45 in |
| Input Voltage Range | 200–240 VAC |
| Operating Elevation | 0–4,000 m (0–13,123 ft) |
| Storage Temperature | -15 to 55 °C (5 to 131 °F) |
| Derated Input Current | 12 A (UL) / 10 A (CE) |
| Maximum Input Current | 15A (maximum); derated to 12A (UL) / 10A (CE) |
| Operating Temperature | 0 to 45 °C (32 to 113 °F) |
| Overload / Protection | Input overload protection: circuit breaker |
| Nominal Output Voltage | Depends on input (200–240 VAC) |
| Output Connector / Outlets | 12 x IEC-320 C13 |
| Certifications & Compliance | UL 62368 IEC 62368 FCC Class A CE EN 55032 Class A ICES-003 RoHS Compliant |
| Operating Relative Humidity | 0–95% non-condensing |
| Shipping Dimensions (WxHxD) | mm: 550 x 125 x 398 mm inches: 21.65 x 4.9 x 15.67 in |
| Monitoring / Displayed Metrics | Input voltage (V) Input frequency (Hz) Current (A) Power consumption (W) Serial number Hardware & firmware version |
CyberPower 1U 10amp Metered Automatic Transfer Switch-(PDU24004) – 12x IEC C13 out – IEC 320 C14*2 in - 2 Yrs Adv. Replacement Wty-(No SNMP network function
