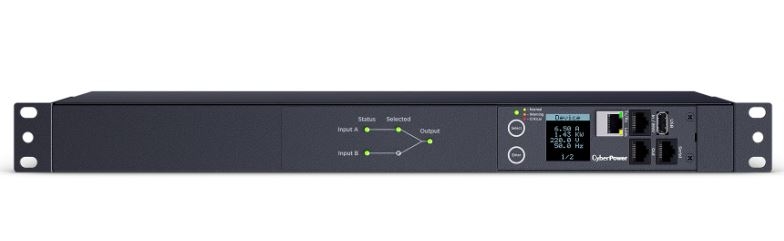

CyberPower 1U Switched Auto Transfer Switch 10Amp Input/output- (Pdu44004)-Snmp Network Connection - 12x Iec C13 Out - Iec 320 C14*2 In - 2 Yr Wty PDU44004
SKU
389971
Brand
MPN
PDU44004
Warranty
Standard Manufacturer's Warranty
$880.00
Buy Now And Earn 880 Reward Points!
CyberPower 1U Switched Auto Transfer Switch 10Amp input/output- (PDU44004)-SNMP Network Connection - 12x IEC C13 out - IEC 320 C14*2 in - 2 Yr WTY
| LCD | Selectable-color LCD (real-time meters: current, input/output voltages, power consumption, firmware/hardware versions); LCD turns red on alerts |
|---|---|
| SKU | PDU44004 |
| Brand | CyberPower |
| Color | Black |
| Model | PDU44004 |
| Phase | Single Phase |
| Series | Switched ATS PDU |
| Weight | Product (kg): 3.7 Product (lb): 8.16 |
| Features | Automatic Transfer Switch with dual power inputs Remote and local real-time monitoring and switching Controllable receptacles with power sequencing Selectable color LCD and LED status indicators Hot-swappable LCD/ethernet module (reported) Daisy-chain capability (manage up to 4 PDUs) Switch-free design to prevent accidental shutdown Cord retention tray and cord retention brackets IEC receptacle locking Durable industrial-grade metal construction Supports optional environmental sensor (temperature/humidity) |
| PDU Type | Switched ATS (Automatic Transfer Switch) |
| Warranty | Three-year limited warranty |
| Description | The CyberPower PDU44004 is a metered, switched Automatic Transfer Switch (ATS) power distribution unit designed for data centers, network closets and telecom racks. It provides redundant dual-input power (2 x IEC C14) to support single-corded devices and will automatically transfer to the secondary source when the primary source fails or exceeds configured thresholds (total transfer <10 ms). The unit includes 12 rear IEC C13 outlets, a selectable-color LCD for real-time status (voltage, current, kW, firmware/hardware info), remote and local individual outlet control, event notifications (email/SMS/SNMP), user-upgradeable firmware (USB), and support for an optional environmental sensor. Management is available via built-in web interface, serial and Ethernet (supports PowerPanel software). Durable steel housing, rack-mount kit and cord retention hardware are included. Covered by a three-year limited warranty. |
| Form Factor | Horizontal rackmount |
| Outlet Type | 12 x IEC 60320 C13 (rear) |
| Manufacturer | CyberPower Systems, Inc. |
| Input Voltage | 200 - 240 VAC |
| Product Title | CyberPower PDU44004 Switched ATS PDU, 12 x IEC C13, 200–240V, 15A (derated to 12A), 1U Rackmount |
| Outlet Control | Local and remote individual outlet switching, power sequencing, scheduling, lockout |
| Derated Current | 12 A (derated) |
| Input Frequency | 50 / 60 Hz |
| Outlets - Total | 12 |
| Rack Height (U) | 1U |
| Input Connectors | 2 x IEC 60320 C14 (dual inputs A & B) |
| Country of Origin | China |
| Max Input Current | 15 A |
| Power Cord Length | 10 ft (3.05 m) - two power cords included |
| Ports & Interfaces | USB: A-type USB port (firmware upgrade) Serial: RJ-45 (serial) Environmental Sensor: RJ-45 (sensor port) Ethernet (management): RJ-45 (management) Cascading / Daisy-chain: RJ-45 (in/out) |
| Overload Protection | Circuit breaker / overload protection |
| Material / Enclosure | Steel / durable metal housing |
| Management & Software | Built-in web interface PowerPanel Business / PowerPanel Enterprise support Remote individual outlet control Event logging and notifications (email, SMS, SNMP traps) User-upgradeable firmware (USB) |
| Nominal Input Voltage | 230 VAC |
| Operating Environment | Storage Elevation: 0 - 15,000 m (0 - 49,213 ft) Operating Elevation: 0 - 4,000 m (0 - 13,123 ft) Storage Temperature: -15°C to 55°C (5°F to 131°F) Operating Temperature: 0°C to 45°C (32°F to 113°F) Operating Relative Humidity: 0% to 95% (non-condensing) |
| Dimensions (WxHxD) (in) | 17.05 x 1.75 x 8.45 in |
| Dimensions (WxHxD) (mm) | 433 x 44 x 215 mm |
| Product Line / Use Cases | Power distribution for data centers, network closets, telecom installations |
| Protocols & Authentication | Authentication: [ "RADIUS", "LDAP / LDAPS", "Windows AD" ] Network Protocols: [ "IPv4", "IPv6", "HTTP / HTTPS", "SNMPv1 / SNMPv3", "TCP/IP", "UDP", "DHCP", "NTP", "DNS", "SMTP", "SSH", "SSL / TLS", "Telnet", "FTP", "Syslog" ] |
| Certifications & Compliance | UL 62368 / UL62368 IEC 62368 EN 55032 Class A EN 55035 FCC Class A cTUVus CE RoHS UKCA (reported) |
| Switch / Transfer Performance | Total Transfer Time: < 10 ms (reported) Power Source Transfer Time: 2-7 ms (reported) Source Failure Detection Time: 2-3 ms (reported) |
| Included Accessories / What's in the box | PDU unit (PDU44004) 2 x IEC C13/C14 power cords (approx. 10 ft / 3.05 m) Rack mount brackets (adjustable) Cord retention tray Cord retention tray mounting screws Rack mounting screws and washers (screw kit) Cable ties RJ45/DB9 serial connection cable User's manual |
CyberPower 1U Switched Auto Transfer Switch 10Amp input/output- (PDU44004)-SNMP Network Connection - 12x IEC C13 out - IEC 320 C14*2 in - 2 Yr WTY
