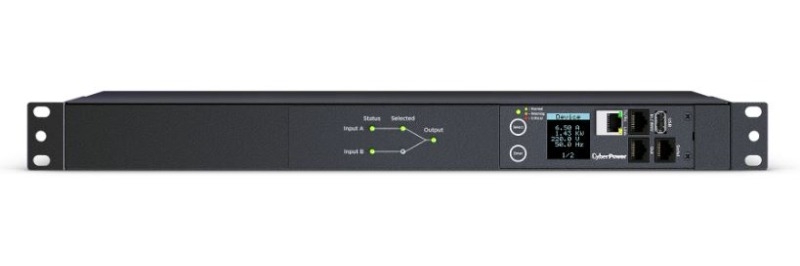

CyberPower 1U Switched Ats 16Amp Input/output -(Pdu44005)- Snmp Network Connection - 8x Iec C13 & 2x Iec C19 Out - Iec 320 C20*2 In - 2 Years Wty PDU44005
SKU
391648
Brand
MPN
PDU44005
Warranty
Standard Manufacturer's Warranty
$915.00
Buy Now And Earn 915 Reward Points!
CyberPower 1U Switched ATS 16Amp input/output -(PDU44005)- SNMP Network Connection - 8x IEC C13 & 2x IEC C19 out - IEC 320 C20*2 in - 2 Years WTY
| SKU | PDU44005 |
|---|---|
| GTIN | 649532933365 |
| Brand | CyberPower |
| Color | Black |
| Model | PDU44005 |
| Phase | Single Phase |
| Weight | Net_kg: 3.76 Net_lb: 8.3 |
| Mounting | Adjustable rack mounting brackets; includes hardware for horizontal installation |
| PDU Type | Switched ATS |
| Warranty | 3 Year Limited Warranty |
| Dimensions | Depth_in: 8.45 Depth_mm: 215 Width_in: 17.05 Width_mm: 433 Height_in: 1.75 Height_mm: 44 |
| Description | The CyberPower PDU44005 is a 1U rack-mount Switched ATS PDU that provides redundant power distribution for single‑corded IT equipment. Supporting 200–240 VAC input with dual IEC C20 inputs, the unit automatically transfers between power sources in <10 ms (source detection 2–3 ms; transfer 2–7 ms). It features 10 switchable outlets (8 × IEC‑320 C13, 2 × IEC‑320 C19), remote and local individual outlet control, selectable color LCD and LED indicators, hot‑swappable network module/LCD, SNMP/HTTP(S) management, USB firmware upgrades, optional environmental sensor support, daisy‑chainable management (up to 4 PDUs), cord retention and rack mounting hardware. Constructed with a durable metal housing and covered by a 3‑year limited warranty. |
| Form_Factor | 1U horizontal rackmount |
| Manufacturer | CyberPower Systems, Inc |
| Outlets_Total | 10 |
| Product Title | CyberPower PDU44005 1U Switched ATS PDU, 200–240V, 20A (Derated 16A), 10 Outlets (8xC13, 2xC19), 2xC20, 10 ft, SNMP, Color LCD |
| Outlet_Control | Remote individual outlet control and local switching; power sequencing |
| RoHS_Compliant | Yes |
| Transfer_Times | Total_Transfer_Time: <10 ms Power_Source_Transfer_Time: 2-7 ms Source_Failure_Detection_Time: 2-3 ms |
| Input Frequency | 50 / 60 Hz |
| Shipping_Weight | kg: 6.58 lb: 14.5 |
| Notable_Features | Automatic event notifications (email, SMS, SNMP trap) Selectable LCD background color for easy classification Remote and local monitoring and outlet management Firmware upgradeable (USB) IEC receptacle locking and cord retention Switch-free design to prevent accidental shutdown Network-grade plugs and outlets |
| Country_of_Origin | China |
| Power Cord Length | 10 ft (3.05 m) |
| Storage_Elevation | 0 - 15,000 m (0 - 49,213 ft) |
| Enclosure_Material | Steel / metal housing |
| Input Connector(s) | 2 x IEC 60320 C20 |
| Input Voltage Range | 200 - 240 V AC |
| Operating_Elevation | 0 - 4,000 m (0 - 13,123 ft) |
| Overload_Protection | Circuit breaker (listed as 20A x 2 on some specs) |
| Shipping_Dimensions | Depth_in: 15.67 Depth_mm: 398 Width_in: 21.65 Width_mm: 550 Height_in: 4.9 Height_mm: 125 |
| Storage_Temperature | -15 to 55 °C (5 to 131 °F) |
| Environmental_Sensor | Optional (connects via RJ45) |
| Included_Accessories | PDU unit 2 x Mounting brackets (adjustable) 24 x M4 x 8 bracket mounting screws 6 x M5 x 12 rack mounting screws and 6 washers Cord retention tray 6 x M3 x 6 cord retention tray mounting screws 30 x cable ties RJ45/DB9 serial port connection cable 2 x IEC-320 C19/C20 power cords User's manual |
| Outlet_Configuration | 8 x IEC 60320 C13; 2 x IEC 60320 C19 |
| Output Voltage Range | 200 - 240 V AC |
| Derated Input Current | 16 A |
| Maximum Input Current | 20 A |
| Nominal Input Voltage | 230 V AC |
| Operating_Temperature | 0 to 45 °C (32 to 113 °F) |
| Daisy_Chain_Capability | Yes, manage up to 4 PDUs with a single IP |
| Automatic_Transfer_Switch | Yes (dual inputs A/B); automatic transfer to secondary source when primary exceeds thresholds or fails |
| Operating_Relative_Humidity | 0 - 95% (non-condensing) |
| Certifications_and_Standards | UL62368 FCC Class A cTUVus CE UKCA EN 55032 Class A IEC 62368 |
| Management_and_Communications | LCD: Selectable color multifunction LCD; LED status indicators USB: A-type USB port (firmware upgrade) Network_Ports: Ethernet (RJ45) for management; RJ45 daisy-chain/environmental sensor ports; RJ45 serial Authentication: [ "RADIUS", "LDAP", "LDAPS", "Windows AD" ] Protocols_Supported: [ "IPv4", "IPv6", "TCP/IP", "UDP", "HTTP", "HTTPs", "SNMPv1", "SNMPv3", "DHCP", "NTP", "DNS", "SMTP", "SSH", "SSL", "TLS", "Telnet", "FTP", "Syslog" ] Hot_Swappable_Module: Hot-swappable Ethernet/LCD module Power_Management_Software: PowerPanel Business / PowerPanel Enterprise (supported) |
