STARTECH.COM 3 PORT PCIe CARD ADAPTER, FW 800(2), FW 400(1), LOW PROFILE, LTW PEX1394B3LP
SKU
306623
Brand
MPN
PEX1394B3LP
Warranty
Standard Manufacturer's Warranty
$118.00
Buy Now And Earn 118 Reward Points!
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Includes full/standard profile installation bracket

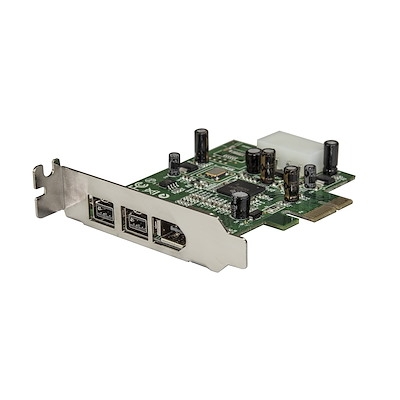

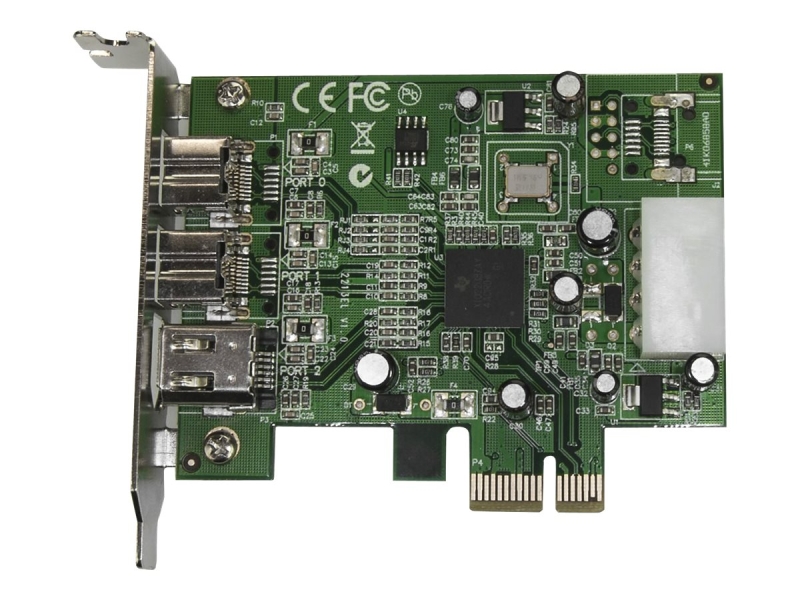

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
| Product Description | StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter - FireWire adapter - PCIe - 2 ports |
| Device Type | FireWire adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| Dimensions (WxDxH) | 12 cm x 9 cm x 1.8 cm |
| Weight | 46 g |
| Ports Qty | 2 ports |
| Auxiliary Ports | 1 x IEEE 1394 (FireWire) |
| Data Link Protocol | FireWire 800 |
| Data Transfer Rate | 800 Mbps |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 3.5 to 4.4.x LTS versions, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.14 |
| Manufacturer Warranty | Limited lifetime warranty |
