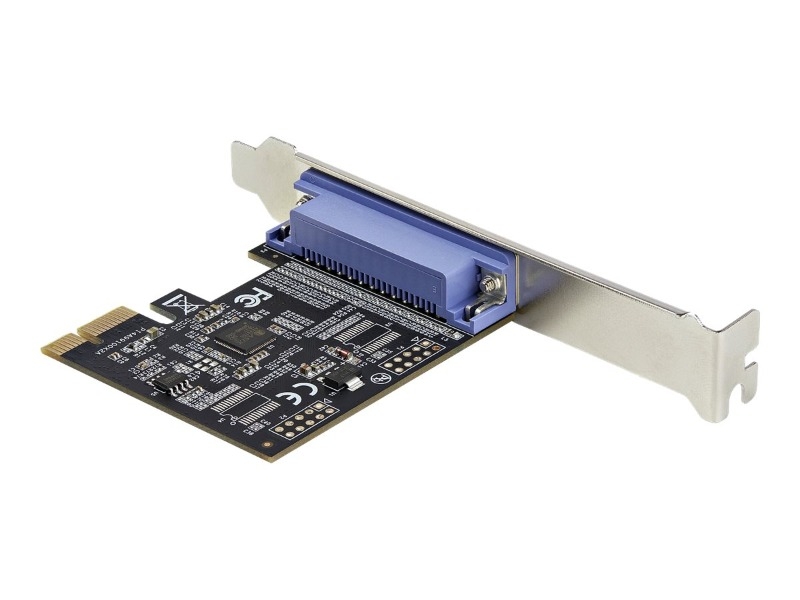

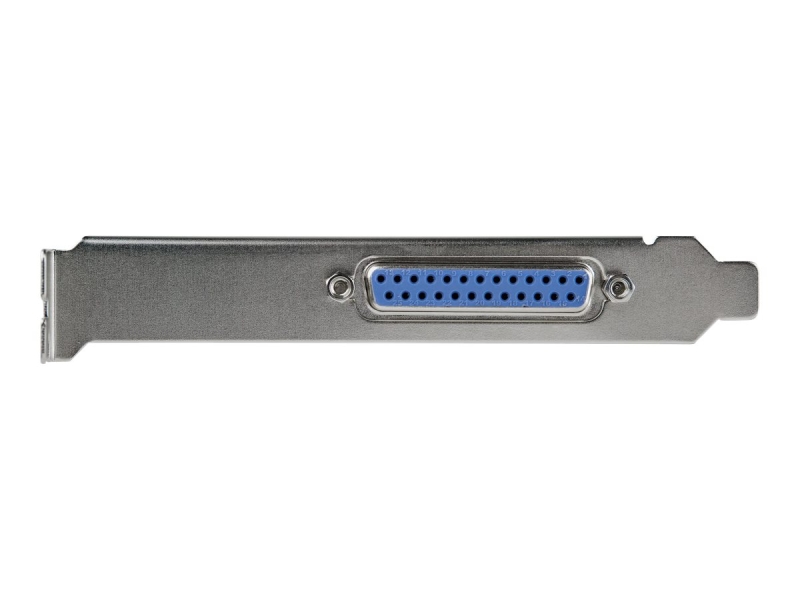

STARTECH 1 PORT PCI EXPRESS DB25 LPT PRINTER CARD, 2YR PEX1P2
1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P
TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes | Compatible with IEEE 1284 | Speeds up to 2.5Mbps | Asix AX99100 chip | Full profile bracket pre-installed
VERSATILE APPLICATIONS: Parallel port expansion card works with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope
WIDE COMPATABILITY: Fully compliant with PCI Express Base Specifications Revision 1.1 and PCI Power Mgmt 1.2; Compatible with PCI-e x1 slot and up; Supports Windows (incl. XP and up) Windows Server (2003 and up) and Linux (2.6.X and up)
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These PCIe Parallel adapter card is backed for 2-years by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Product Description | StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - parallel adapter - PCIe - IEEE 1284 |
Device Type | Parallel adapter |
Form Factor | Plug-in card |
Interface (Bus) Type | PCI Express |
PCI Specification Revision | PCIe 2.0 |
Ports | IEEE 1284 |
Dimensions (WxDxH) | 7.3 cm x 12 cm x 1.85 cm |
Weight | 45 g |
Data Link Protocol | Parallel |
Data Transfer Rate | 2.5 Mbps |
Processor | ASIX AX99100 |
Colour | Black |
System Requirements | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows 2003, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Manufacturer Warranty | 2-year warranty |
