STARTECH.COM 2 PORT 10Gbps PCIE USB-C CARD, USB 3.1, LOW PROFILE, 2YR PEXUSB312C3

SKU
369323
Brand
MPN
PEXUSB312C3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$90.00
Buy Now And Earn 90 Reward Points!
  • VERSATILE USE: This 2-port PCIE USB 3.1 card features a dual-profile design to fit into both standard and low-profile systems, and includes an optional SATA power connector for high power devices | Upgraded version of our popular USB card PEXUSB312C2
  • POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports
  • MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives

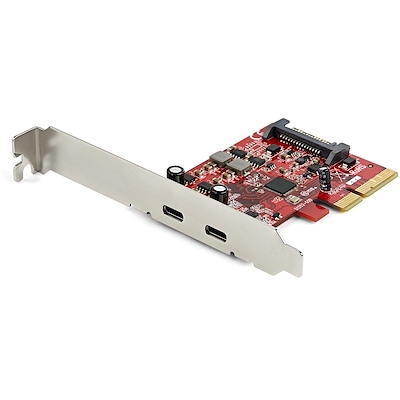

This PCIe USB 3.1 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.

Faster USB Performance

Also known as USB 3.2 Gen 2x1, this USB 3.1 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.

Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.1 Gen 2. With higher data throughput support, this USB 3.1 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.1 Gen 2 peripherals and includes an optional SATA power connector for high power devices.

The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.

Easy Installation

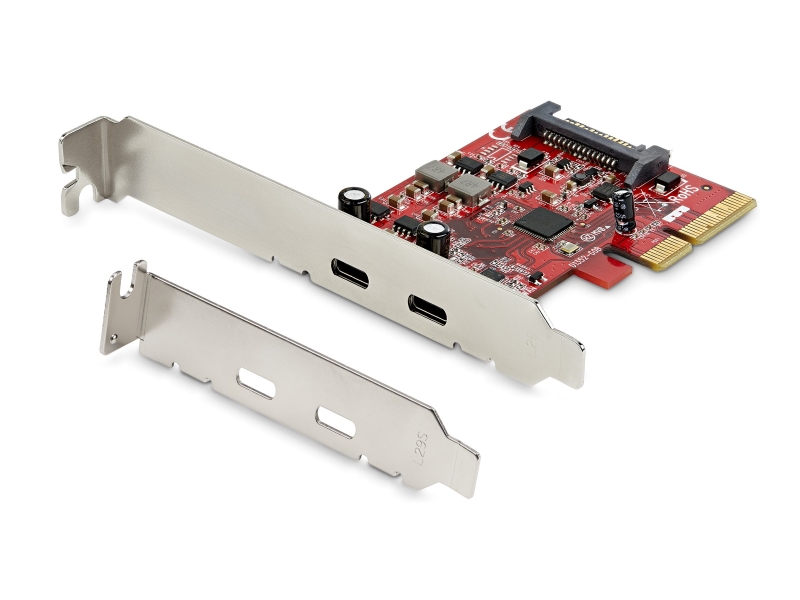

The USB 3.1 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Description StarTech.com 2-port 10Gbps USB C PCIe Card Adapter - USB 3.1 Gen 2 Type-C PCI Express Expansion Add-On Card - Windows, macOS, Linux (PEXUSB312C3) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2
Device Type USB adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x4
Ports USB-C 3.1 Gen 2 x 2
Dimensions (WxDxH) 8 cm x 12.2 cm x 1.8 cm
Weight 45.4 g
Data Link Protocol USB 3.1
Data Transfer Rate 10 Gbps
Processor ASMedia ASM1142
Compliant Standards USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2
System Requirements Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 3.5 to 4.11.x LTS versions, Microsoft Windows Server 2019, Apple macOS 10.13 - 10.15
Manufacturer Warranty 2-year warranty
Designed For P/N: S252BU313R
STARTECH.COM 2 PORT 10Gbps PCIE USB-C CARD, USB 3.1, LOW PROFILE, 2YR
