STARTECH.COM 2 PORT PCI EXPRESS (PCIE) USB 3.0 CARD WITH UASP - SATA POWER 2 YR PEXUSB3S24

SKU
365795
Brand
MPN
PEXUSB3S24
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$54.00
Buy Now And Earn 54 Reward Points!
  • Provides two external USB 3.0 ports with UASP support
  • Supports data rates up to 5 Gbps
  • Compliant with PCI Express 2.0 specifications

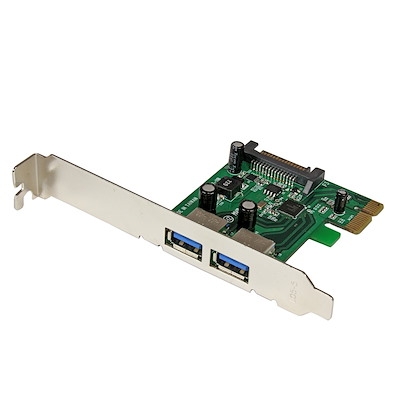

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

UASP Speed Diagram

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Product Description StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - Dual Port USB 3 PCIe Controller (PEXUSB3S24) - USB adapter - PCIe - USB 3.0 x 2
Device Type USB adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x1
Ports USB 3.0 x 2
Dimensions (WxDxH) 2.2 cm x 6 cm x 6.5 cm
Weight 56 g
Data Link Protocol USB 3.0
Data Transfer Rate 5 Gbps
Compliant Standards USB 3.0
System Requirements Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Manufacturer Warranty 2-year warranty
Designed For P/N: CFASTRWU3, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST7300U3M, ST7300USB3B, ST7300USBME, USB3S2ESATA3
