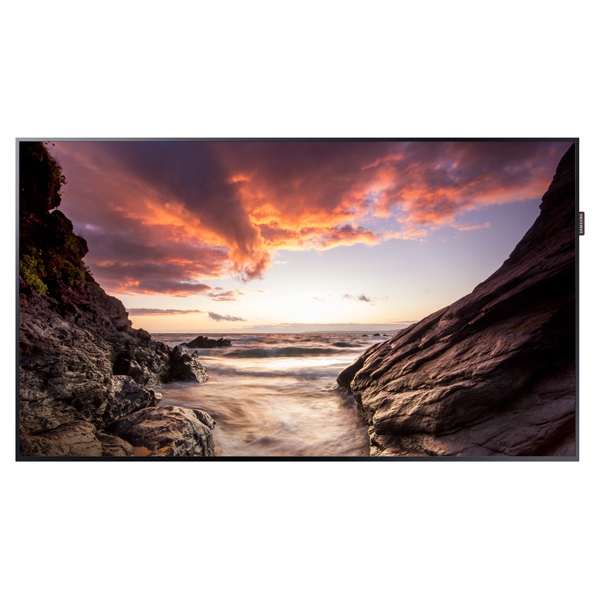

main product photo

Samsung Ph55f 54.6in 60hz Full Hd 700cd/m2 Rs232/rj45 Control Wifi Embedded Built In Quad Core

SKU
242714
Brand
Samsung
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

MEDIA PLAYER (MAGICINFO S4 PC-LESS VW CAPABLE) DP LOOPOUT 5G LH55PHFPBGC/XY
Add to Compare

AT A GLANCE

Samsung PH-F Series high brightness commercial displays feature an ultra-slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
  • Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width
  • Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
  • Non-glare, high brightness panel offers improved visibility in bright ambient light
  • IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing

FEATURES

Ultra-Slim, ADA-Compliant Profile of Just 1.1”

The PH-F Series features an ultra-thin 6.9mm bezel and 1.1" chassis depth for an elegant, sophisticated look. And they’re ADA-compliant.

System-on-Chip Platform for Simple Remote Content Management

Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.

Non-Glare, High Brightness Panel for Improved Visibility

The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.

Built for 24/7 Use & IP5X Certified for Dust Protection

These displays are built for 24/7 continuous use and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.

Full Connectivity

Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.

Built-In Wi-Fi®

Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

Basic
Backlight Technology: Edge LED
Brand Name: Samsung
Brightness: 700 cd/m²
DVI: Yes
Display Resolution: 1920 x 1080
Display Screen Type: LCD
Dynamic Contrast Ratio: 5,000:1
Energy Star: Yes
HDMI: Yes
Processor Speed: 1.30 GHz
Processor Type: Cortex A12
Product Family: PHF
Product Type: Digital Signage Display
Screen Size: 139.7 cm (55")
Standard Memory: 2.50 GB
USB: Yes
Wireless LAN: Yes
Display & Graphics
Backlight Technology: Edge LED
Display Resolution: 1920 x 1080
Display Screen Type: LCD
Screen Size: 139.7 cm (55")
General Information
Brand Name: Samsung
Manufacturer Part Number: LH55PHFPBGC/XY
Manufacturer Website Address: http://www.samsung.com/au
Manufacturer: Samsung
Product Model: PH55F
Product Name: PH55F - PH-F Series 55" Edge-Lit LED Display for Business
Product Series: PHF
Product Type: Digital Signage Display
Interfaces/Ports
DVI: Yes
HDMI: Yes
Serial: Yes
USB: Yes
Memory
Standard Memory: 2.50 GB
Miscellaneous
Energy Star: Yes
Environmental Certification: ENERGY STAR 7.0
　 RoHS
Environmentally Friendly: Yes
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Physical Characteristics
Depth: 2.8 cm
Height: 70.1 cm
Width: 122.7 cm
Power Description
Input Voltage: 120 V AC
　 230 V AC
Processor & Chipset
Processor Core: Quad-core (4 Core)
Processor Speed: 1.30 GHz
Processor Type: Cortex A12
Video
Brightness: 700 cd/m²
　 700 cd/m²
Dynamic Contrast Ratio: 5,000:1
Scan Format: 1080p
