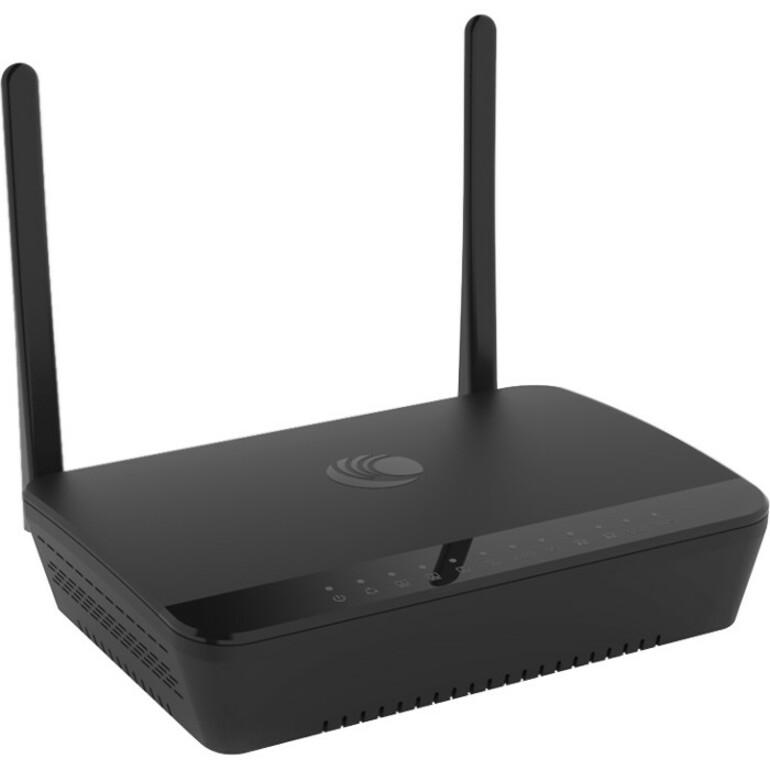

Cambium R195P Aus/Nz Type I P/s, 802.11n/AC Dual Band 2x2 Wlan Ap, Ata, Cambium Power PL-R195PANA-RW
SKU
304252
Brand
MPN
PL-R195PANA-RW
Warranty
Standard Manufacturer's Warranty
$262.00
Buy Now And Earn 262 Reward Points!
r195P AUS/NZ type I P/S, 802.11n/AC Dual Band 2x2 WLAN AP, ATA, Cambium power
| PoE | Auto-sensing Cambium 30V PoE output on WAN port (PoE out, non-standard) |
|---|---|
| USB | USB 2.0 (for network storage) |
| LEDs | Power WLAN Port status |
| Brand | Cambium Networks |
| Color | Black |
| Model | R195P |
| Notes | Data consolidated from multiple vendor listings. Power supply current is listed inconsistently across sources (1A and 3A). Do not rely on this record for final electrical installation specifications; consult the manufacturer's datasheet for exact power requirements. |
| Weight | 0.9 kg |
| Antenna | External duplexed antennas, 5 dBi |
| Features | Residential 802.11ac dual-band 2x2 MIMO Integrated ATA (2x FXS) for VoIP 30V PoE output to power Cambium subscriber modules Five Gigabit Ethernet ports USB 2.0 for network storage Managed by cnMaestro with zero-touch configuration Hardware-accelerated NAT Firewall |
| Humidity | 95% RH non-condensing |
| Max EIRP | 5 GHz: 20 dBm 2.4 GHz: 27 dBm |
| Warranty | 1 year (standard, per vendor listings) |
| Max SSIDs | 8 |
| Pack Size | 1 |
| Interfaces | 4 x 10/100/1000 Mbps LAN 1 x 10/100/1000 Mbps WAN (auto-sensing, PoE out) 2 x FXS (RJ11) ATA ports 1 x USB 2.0 |
| Management | cnMaestro (Cloud / MSP / On-premises) |
| Throughput | 1 Gbps (vendor-listed) |
| Description | The Cambium cnPilot R195P (PL-R195PANA-RW) is a residential dual-band 802.11ac (Wi‑Fi 5) 2x2 WLAN router/access point designed for home and small business use. It features dual radios (2.4 GHz and 5 GHz) with maximum PHY rates of 300 Mbps (2.4 GHz) and 867 Mbps (5 GHz), five Gigabit Ethernet ports (4 LAN + 1 WAN with auto-sensing 30V PoE Out), integrated ATA with two FXS (RJ11) ports for VoIP, an external duplexed 5 dBi antenna set, a USB 2.0 port, hardware-accelerated NAT firewall, and cloud/on-premises management via cnMaestro. The unit supports up to 64 clients, up to 8 SSIDs, WDS Mesh for coverage extension, SIP v2 with common codecs, and is supplied with an AUS/NZ power cord in the listed configuration. |
| Power Input | 12V DC (DC barrel 2.1mm x 5.5mm). Power supply current listed as 1A in some sources and 3A in others (vendor sources vary). |
| Firewall/NAT | Hardware-accelerated NAT firewall |
| Max PHY Rate | 5 GHz: 867 Mbps 2.4 GHz: 300 Mbps |
| Product Type | WLAN Router / Access Point |
| Product Title | Cambium Networks cnPilot R195P (PL-R195PANA-RW) Dual-Band 2x2 WLAN Router/AP with ATA & PoE Out |
| Certifications | FCC ETSI CE EN 60601-1-2 IEC 60950 |
| Ethernet Ports | 5 x Gigabit Ethernet (4 x LAN, 1 x WAN) |
| Integrated ATA | 2 x FXS ports for VoIP (SIP v2; codecs listed: G.711, G.722, G.723, G.729) |
| Wi-Fi Standard | 802.11ac (Wi‑Fi 5) |
| Wireless Bands | Dual-band (2.4 GHz / 5 GHz) |
| Clients Supported | 64 |
| Region / Power Cord | RoW unit supplied with AUS/NZ power cord (per listing) |
| Storage Temperature | -20°C to 70°C |
| Alternate Model Names | cnPilot R195P r195P PL-R195PANA-RW |
| Dimensions (W x D x H) | 200 mm x 140 mm x 50 mm |
| Manufacturer Part Number | PL-R195PANA-RW |
| Supported Frequency Ranges | 2400 - 2500 MHz; 5150 - 5850 MHz |
| Ambient Operating Temperature | 0°C to 40°C |
| Supported Platforms/Compatibility | cnMaestro; WDS Mesh |
| Wireless Transmission Speed (per radio) | 300 Mbps (2.4 GHz) / 867 Mbps (5 GHz) |
Cambium r195P AUS/NZ type I P/S, 802.11n/AC Dual Band 2x2 WLAN AP, ATA, Cambium power
