Omada (POE10R) PoE Splitter Adapter Port: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port Spec: 802.3af Compliant, Data And Power Carried Over The Same Cable POE10R
SKU
446667
Brand
MPN
POE10R
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$21.00
Buy Now And Earn 21 Reward Points!

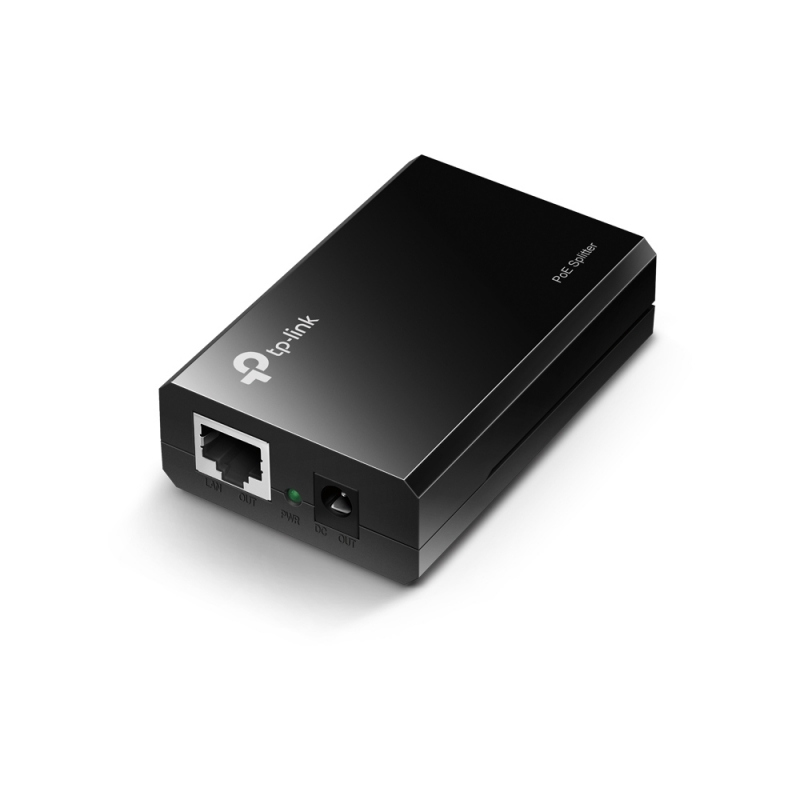

Omada (POE10R) PoE Splitter Adapter
PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable
PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable
| SKU | POE10R |
|---|---|
| Brand | TP-Link |
| Color | Black |
| Model | TL-POE10R |
| Notes | Some listings reference the product under TP-Link's Omada line or as sold by third-party resellers; model numbering appears as TL-POE10R / TL-PoE10R / POE10R in various sources. |
| Ports | RJ45 Ports: 2 × RJ45 (10/100/1000 Mbps) Power Output: 1 × DC power output (selectable 12V/9V/5V) |
| Weight | 8 oz (packaged, reported) |
| Category | Networking |
| Dimensions | Depth: 2.1 in (54 mm) Width: 3.2 in (80.8 mm) Height: 0.9 in (24 mm) Dimensions (metric): 80.8 x 54 x 24 mm Dimensions (imperial): 3.2 x 2.1 x 0.9 in |
| Description | The TP-Link TL-POE10R PoE Splitter (also referenced under TP-Link Omada) is an IEEE 802.3af-compliant, plug-and-play splitter that expands PoE connectivity and delivers DC power to non-PoE devices. It supports gigabit Ethernet throughput and can deliver selectable 12VDC, 9VDC or 5VDC output (12V@1A, 9V@1A, 5V@2A) from an 802.3af PoE source up to 100 meters (328 ft). Compact and easy to deploy, it is suitable for powering access points, IP cameras, IP phones and other low-voltage network devices. Includes power cord, RJ45 cable and installation guide. Certifications: FCC, CE, RoHS. |
| Form Factor | Standalone PoE splitter |
| Key Features | IEEE 802.3af compliant Selectable DC output: 12V, 9V or 5V Gigabit Ethernet speed support Plug-and-play (no configuration required) Delivers power up to 100 meters (328 ft) LED power indicator |
| Manufacturer | TP-LINK Technologies Co., Ltd. |
| Sub-Category | Transceivers and Converters |
| Product Title | TP-Link TL-POE10R Gigabit PoE Splitter (Selectable 5/9/12V, IEEE 802.3af) |
| Certifications | FCC CE RoHS |
| LED Indicators | PWR |
| Package Contents | TL-POE10R PoE Splitter Power Cord / Power Adapter RJ45 Cable Installation Guide |
| Country of Origin | Vietnam (reported) |
| Data Transfer Rate | 1000 Mbps |
| Network Technology | Gigabit Ethernet Ethernet IEEE 802.3 |
| Operating Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Compliance / Standards | IEEE 802.3af |
| Maximum Output Current | 2 A |
| Compatibility / Typical Use | Access Points (AP) IP Cameras IP Phones Compatible with IEEE 802.3af PoE switches and PoE injectors (examples reported: TP-LINK TL-POE150S, TL-SF1008P, T1600G-52PS, TL-SG1008PE) |
| Power Output Specifications | 5VDC: 2 A 9VDC: 1 A 12VDC: 1 A Maximum Output Voltage: 12 V DC Minimum Output Voltage: 9 V DC (selectable range includes 5V) |
| Alternative Brand References | Omada (TP-Link Omada variant reported) |
| Documentation / Support Links | https://www.tp-link.com/us/support/download/tl-poe10r/ https://support.omadanetworks.com/us/document/6072/ https://support.omadanetworks.com/us/document/6074/ |
| Distance (Power over Ethernet) | Up to 100 meters (328 feet) |
Omada (POE10R) PoE Splitter Adapter PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable
