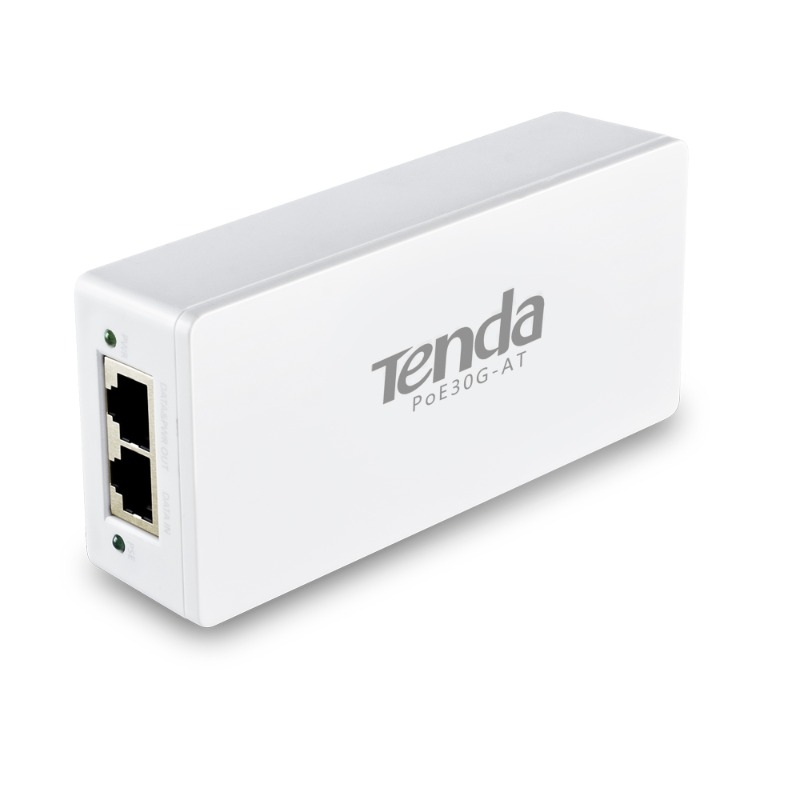

Tenda PoE30G-AT Gigabit PoE+ injector maximum transfer rate of up to 30W for single port
SKU
371917
Brand
MPN
PoE30G-AT
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $26.00 Regular Price $30.00
Buy Now And Earn 26 Reward Points!
Gigabit PoE+ injector delivers up to 30W output power per port
Network standards
IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
LED Indicator
PWR, PoE
Interfaces
1*10/100/1000 Base-T Ethernet Port(Data/PoE)
1*10/100/1000 Base-T Ethernet Port(Data)
1*10/100/1000 Base-T Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
132.3mm*60mm*33mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
1000Mbps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Whole device: 30W
Power consumption
30W
Input voltage
100－240V AC 50/60Hz
51V/0.8A DC（Power Adapter Output）
51V/0.8A DC（Power Adapter Output）
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE 、RoHS、UL
