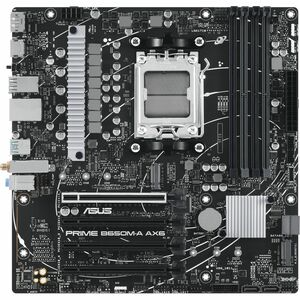

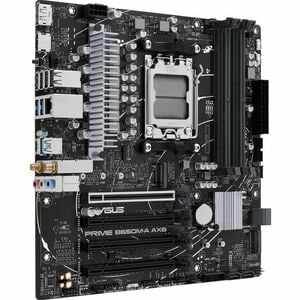

Asus Prime Prime B650M-A AX6-CSM Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 192 GB DDR5 Sdram Maximum RAM - Dimm, Udimm - 4 x Memory Slots - Gigabit Ethernet - Ieee 802.11 a/b/g/n/ac/ax - HDM PR
SKU
414057
Brand
MPN
PRIME B650M-A AX6-CSM
Warranty
Standard Manufacturer's Warranty
$246.00
Buy Now And Earn 246 Reward Points!
QUICK OVERVIEW
I PRIME B650M-A AX6-CSM
AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, WiFi 6, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps Type-A & Type-C ports, front USB 5Gbps Type-C, BIOS FlashBack, Two-Way AI Noise Cancelation, Aura Sync
• AM5 Socket for AMD Ryzen Desktop Processors • Ultrafast Connectivity: WiFi 6, M.2 PCIe 5.0, rear USB 10Gbps Type-A & Type-Cports, front USB 5Gbps Type-C • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences • CEC Tier II ready • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX6-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
• AM5 Socket for AMD Ryzen Desktop Processors • Ultrafast Connectivity: WiFi 6, M.2 PCIe 5.0, rear USB 10Gbps Type-A & Type-Cports, front USB 5Gbps Type-C • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences • CEC Tier II ready • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX6-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
| Audio Channels | 7.1 |
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 192 GB |
| Form Factor | Micro ATX |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Number of Memory Slots | 4 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 3 |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | PRIMEB650MAAX6CSM |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | PRIME B650M-A AX6-CSM |
| Product Name | PRIME B650M-A AX6-CSM Gaming Desktop Motherboard |
| Product Line | Prime |
| RAID Levels | 10, 1, 0 |
| PCI Express Standard | PCI Express 4.0 |
| S/PDIF | Yes |
| HDMI Version | • 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| Memory Speed Supported | 7600 MHz, 7200 MHz, 7000 MHz, 6600 MHz, 6800 MHz, 6400 MHz, 6200 MHz, 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz |
| Compatibility | Asus MicroATX cases |
| Environmentally Friendly | Yes |
| Wireless LAN | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Number of Onboard USB 2.0 Ports | 4 |
| Width | 244 mm |
| Depth | 244 mm |
| Shipping Dimensions | Height 7, Width 28, Length 28, Shipping Weight 1.26 KG |
PRIME B650M-A AX6
