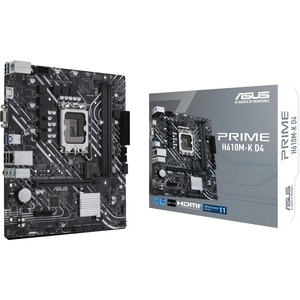

Asus PRIME H610M-K D4 INTEL H610 LGA1700 MB (PRIME H610M-K D4)
Asus Prime H610M-K D4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 4 x SATA Interfaces
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent
Control l All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption
and maximizes energy savings with Away mode - a smart setting that creates an
extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and
tune your system. It offers intelligently simplified options for PC DIY
beginners, as well as comprehensive features for seasoned veterans.
Advanced
Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control.
A built-in search feature makes it easy to find options, and various advanced
functions let you intelligently make nuanced adjustments so you can dial in
performance just the way you want.
Search
Function
Quickly and easily find the option or setting you need.
ASUS User
Profile
Port configuration settings between different BIOS versions or share them with
friends.
COOLING
Prime H610 series are engineered with an array of hybrid fan headers to ensure
your rig stays cool and stable under intense workloads.
Cooler by
Design
Prime H610 series feature comprehensive cooling controls that are configurable
via Fan Xpert software or via the UEFI BIOS.
Multiple
Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows
you to map the temperature of supported ASUS graphics cards to optimize cooling
for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased
bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide
all the fundamentals to boost daily productivity, so your system will be ready
for action with stable power, intuitive cooling and flexible transfer options.
Storage
l M.2 slot (up to 32 Gbps)
Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to
32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or
application drives.
Controller Type | Serial ATA/600 |
Brand Compatibility | Intel |
Gigabit Ethernet | Yes |
Onboard Video | CPU Dependent Video |
Form Factor | Micro ATX |
Width | 233.7 mm |
Depth | 203.2 mm |
Number of PCI Express x1 Slots | 1 |
Number of Total Expansion Slots | 2 |
Number of PCI Express x16 Slots | 1 |
Total Number of PCI Express Slots | 2 |
Number of SATA Interfaces | 4 |
Total Number of Onboard USB Ports | 4 |
Number of Onboard USB 2.0 Ports | 2 |
Number of M.2 Interfaces | 1 |
Number of Onboard USB 3.2 Ports | 2 |
Processor Supported | Pentium Gold |
Celeron | |
Core i9 | |
Core i3 | |
Core i5 | |
Core i7 | |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Chipset Manufacturer | Intel |
Processor Generation Supported | 12th Gen |
HDMI | Yes |
VGA | Yes |
Number of Network (RJ-45) Ports | 1 |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 4 |
Number of USB 3.2 Gen 1 Ports | 2 |
Product Type | Desktop Motherboard |
Manufacturer Part Number | PRIME H610M-K D4 |
Manufacturer Website Address | http://www.asus.com/au |
Manufacturer | ASUS Computer International |
Product Model | H610M-K D4 |
Product Name | Prime H610M-K D4 Desktop Motherboard |
Product Line | Prime |
Brand Name | Asus |
Maximum Memory Supported | 64 GB |
Memory Technology | DDR4 SDRAM |
Number of Memory Slots | 2 |
Memory Form Factor | DIMM |
Memory Speed Supported | 2133 MHz |
2800 MHz | |
2933 MHz | |
2666 MHz | |
3200 MHz | |
3000 MHz | |
2400 MHz |
