Msi Pro B760M-A WIFI DDR5, LGA1700, B760, 4xDDR5 6800+, 2xM.2, WiFi 6E, BT5.3, 2.5G LAN, 2yr Wty PRO B760M-A WIFI DDR5
SKU
444674
Brand
MPN
PRO B760M-A WIFI DDR5
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$244.00
Buy Now And Earn 244 Reward Points!

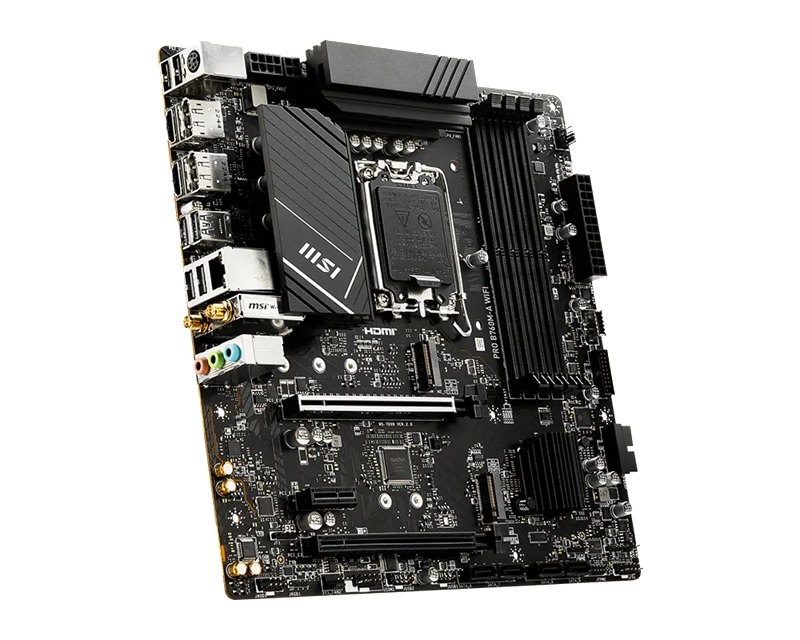

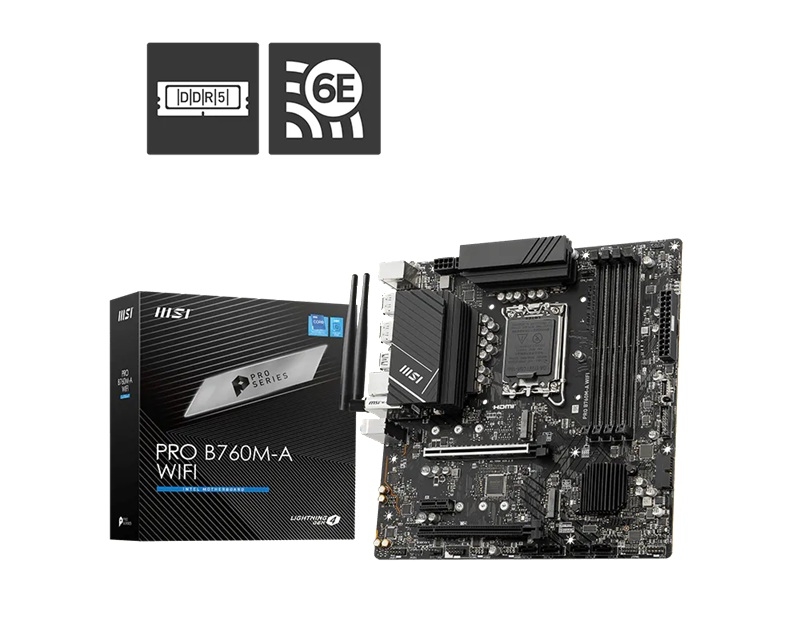

MSI PRO B760M-A WIFI DDR5
*Available only on processors featuring integrated graphics. Graphics
*Available only on processors featuring integrated graphics. Graphics
| Chipset INTEL B760 | CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 6800+ MHz | • 1DPC 2R Max speed up to 6400+ MHz |
| • 2DPC 1R Max speed up to 6000+ MHz | • 2DPC 2R Max speed up to 5600+ MHz |
| Supports Intel® XMP 3.0 OC | Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory | Onboard Graphics |
| 2x HDMI™ | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 2x DisplayPort | Support DP 1.4, maximum resolution of 4K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | Slot |
| 2x PCI-E x16 slot | 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | Audio |
| Realtek® ALC897 Codec | 7.1-Channel High Definition Audio |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G | * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | USB |
| 2x USB 2.0 (Rear) | 4x USB 2.0 (Front) |
| 2x USB 5Gbps Type A (Rear) | 4x USB 5Gbps Type A (Front) |
| 1x USB 5Gbps Type C (Front) | 2x USB 10Gbps Type A (Rear) |
| LAN Realtek® RTL8125BG 2.5G LAN | Internal IO |
| 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) |
| 1x CPU Fan | 1x Pump Fan |
| 2x System Fan | 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports | 4x USB 5Gbps Type A ports |
| 1x USB 5Gbps Type C ports | WIRELESS LAN & BLUETOOTH |
| Intel® Wi-Fi 6E | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Supports Bluetooth® 5.3, FIPS, FISMA | * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | LED FEATURE 4x EZ Debug LED |
MBM-PROB760M-AWIFID5
