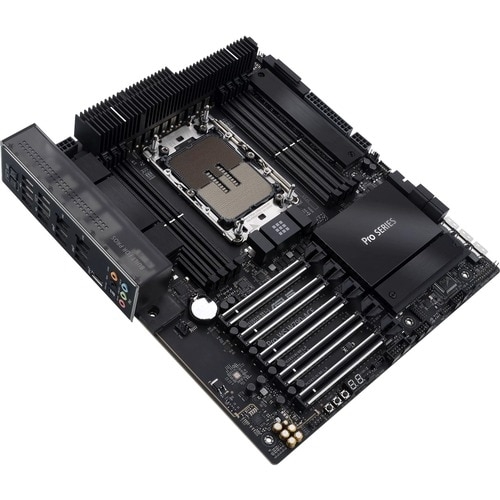

Asus Intel W790 (LGA 4677) CEB workstation motherboard PCIe 5.0 x16 M.2 10G and 2.5G LAN Server-grade Remote Management 12+1+1 power stages front and Rear USB 3.2 Gen 2x2 Type-C PRO WS W790-ACE
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices. Learn more about the Qualified Vendor List.
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790-ACE presents a professional, low-profile look for content creators.
Multi-GPU support
The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.
Reliability with supreme memory overclocking
The Pro WS W790-ACE supports 4-channel 2DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.
- The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- RAID supported levels provide data reliability and fault tolerance
- DDR5 SDRAM slot for convenient installation of memory
| Audio | |
| Audio Channels | 7.1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 317.5 mm |
| Depth | 266.7 mm |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 5 |
| Total Number of Expansion Slots | 5 |
| Interfaces/Ports | |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of USB Ports | 13 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| I/O Controller | |
| RAID Levels | 10 |
| 5 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | PRO WS W790-ACE |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | PRO WS W790-ACE |
| Product Name | PRO WS W790-ACE Desktop Motherboard |
| Product Series | PRO |
| Brand Name | Asus |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 6000 MHz |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 5800 MHz | |
| 5600 MHz | |
| 5400 MHz | |
| 5200 MHz | |
| 4800 MHz | |
| 5000 MHz | |
