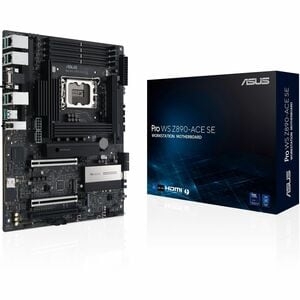

Intel Z890 LGA1851 Atx Workstation Motherboard With PCIe� 5.0, DDR5 Support, 10Gb & 2.5Gb Ethernet, Four M.2 Slots, Plus A USB 20Gpbs Front-panel Connector And Onboard Bmc. PRO WS Z890-ACE SE
SKU
425549
Brand
MPN
PRO WS Z890-ACE SE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,721.00 Regular Price $1,979.00
Buy Now And Earn 1721 Reward Points!
Intel Z890 LGA1851 ATX workstation motherboard with PCIe ® 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA1851 socket: Ready for Intel ® Core™ Ultra 9, 7, and 5 desktop processors Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe ® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-Connector Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA1851 socket: Ready for Intel ® Core™ Ultra 9, 7, and 5 desktop processors Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe ® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-Connector Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
| Audio Channels | 7.1 |
| Product Type | Workstation Motherboard |
| Maximum Memory Supported | 192 GB |
| Form Factor | ATX |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Number of Memory Slots | 4 |
| Graphics Controller Model | AST2600 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 7 |
| Total Number of PCI Express Slots | 3 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 4 |
| 2.5Gigabit Ethernet | Yes |
| AI-powered | Yes |
| Manufacturer Part Number | PRO WS Z890-ACE SE |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | WS Z890-ACE SE |
| Product Name | Pro WS Z890-ACE SE Workstation Motherboard |
| Product Line | Pro |
| RAID Levels | 5, 10, 1, 0 |
| PCI Express Standard | PCI Express 4.0, PCI Express 5.0 |
| HDMI Version | • 2.1 |
| Number of Network (RJ-45) Ports | 3 |
| Number of Thunderbolt 4 Ports | 2 |
| Error Checking | ECC |
| Memory Speed Supported | 9066 MHz |
| Number of Onboard USB 2.0 Ports | 4 |
| Width | 305 mm |
| Depth | 244 mm |
| Shipping Dimensions | Height 7, Width 27.5, Length 34, Shipping Weight 1.84 KG |
Intel Z890 LGA1851 ATX workstation motherboard with PCIe� 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
