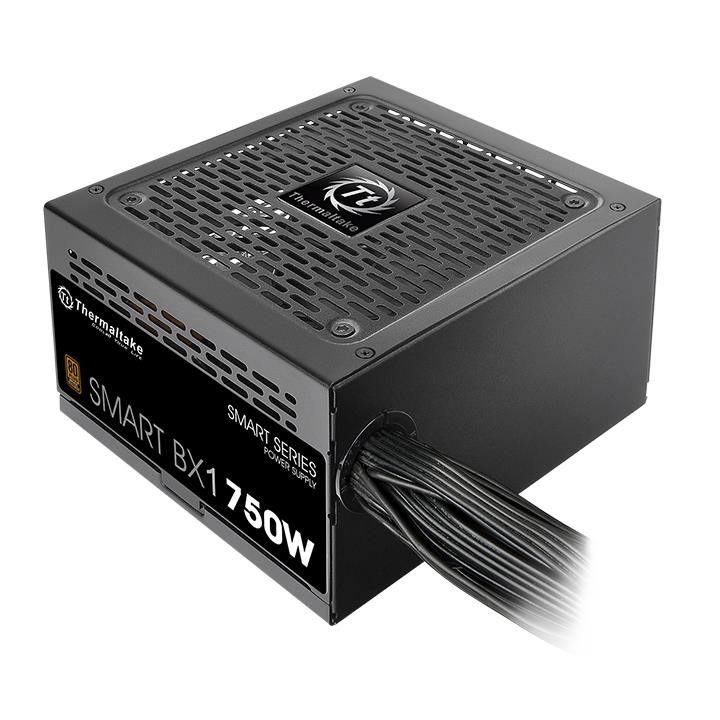

Thermaltake ATX PSU: Smart BX1 750W 80+ Bronze PSU (PS-SPD-0750NNSABA-1)

SKU
301329
Brand
Thermaltake
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare
P/N PS-SPD-0750NNSABA-1
WATTS 750W
RGB FAN No
FORM FACTOR ATX
MODEL SPD-750AH2NKB-2
TYPE ATX 12V v2.3 and EPS v2.92
MAX. OUTPUT CAPACITY 750W
PEAK OUTPUT CAPACITY 900W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-500 msec
HOLD UP TIME > 16msec at 70% of full load
INPUT CURRENT 10A max.
INPUT FREQUENCY RANGE 50Hz
INPUT VOLTAGE 230V~
OPERATING TEMPERATURE 5°C to + 40°C
OPERATING HUMIDITY 20% to 85%, non-condensing
STORAGE TEMPERATURE -40°C to + 55°C
STORAGE HUMIDITY 10% to 95%, non-condensing
COOLING SYSTEM 12cm Hydraulic bearing fan
EFFICIENCY Meet 80 PLUS®Bronze 230V EU certified
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE, CB, TUV, EAC, RCM
PCI-E 6+2PIN 4
ATX PSU: Smart BX1 750W 80+ Bronze PSU
