Powershield Commander UPS, 1100VA, 990W, LCD, Avr, C13(3), Au OUTLET(3), 10AMP, 2YR PSCM1100
SKU
416543
Brand
MPN
PSCM1100
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$678.00
Buy Now And Earn 678 Reward Points!
The PowerShield Commander is a sophisticated pure sine wave, line interactive UPS. Besides providing
Automatic Voltage Regulation (AVR) it also provides for a Pure Sine Wave output while in backup mode.
This UPS is a cost effective solution for protecting applications such as networking, telecom, security and
motors to name a few
Automatic Voltage Regulation (AVR) it also provides for a Pure Sine Wave output while in backup mode.
This UPS is a cost effective solution for protecting applications such as networking, telecom, security and
motors to name a few
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| RoHS | Directive 2011/65/EU |
| AC Mode | 98% (Advanced ECO design) |
| Voltage | 240VAC (Nominal) |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| Warranty | 2 years |
| Capacity | 1100VA / 990W |
| Interface | USB and RS-232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| Noise Leve | < 45dB |
| Safety/EMC | EN62040 -1 -1 2003, IEC 60950 -1 -1, EN62040-2 2006 |
| Battery Mode | 89% |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Battery Replacement, Fault, Overload |
| Recharge Time | 4 hours recover to 90% capacity |
| Transfer Time | 6ms (Typical) |
| Voltage Range | 162 to 290VAC |
| Output Voltage | 240VAC ± 10% |
| Full Protection | Overload, thermal, short circuit, discharge and overcharge protection |
| Frequency Range | 50Hz or 60Hz (Auto sensing) |
| Surge Protection | 1968 Joules / 39000 Amps |
| LCD Display/Alarm | AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Battery Replacement, Low Batt., Batt. Time Remaining |
| Relative Humidity | 0–90% (RH non-condensing) |
| Current Crest Ratio | 3:1 |
| Battery Type & Number | 12V / 9AH (x2) |
| Operation Temperature | 0–40°C |
| Waveform (Batt Mode) | Pure Sine Wave |
| Weight Nett/Gross (kg) | 12.9/ 14.4 |
| Dimension L x W x H (mm) | 397 x 145 x 220 |
| Total Harmonic Distortion | 2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm) |
| Frequency Range (Batt Mode) | 50Hz or 60Hz ±1Hz |

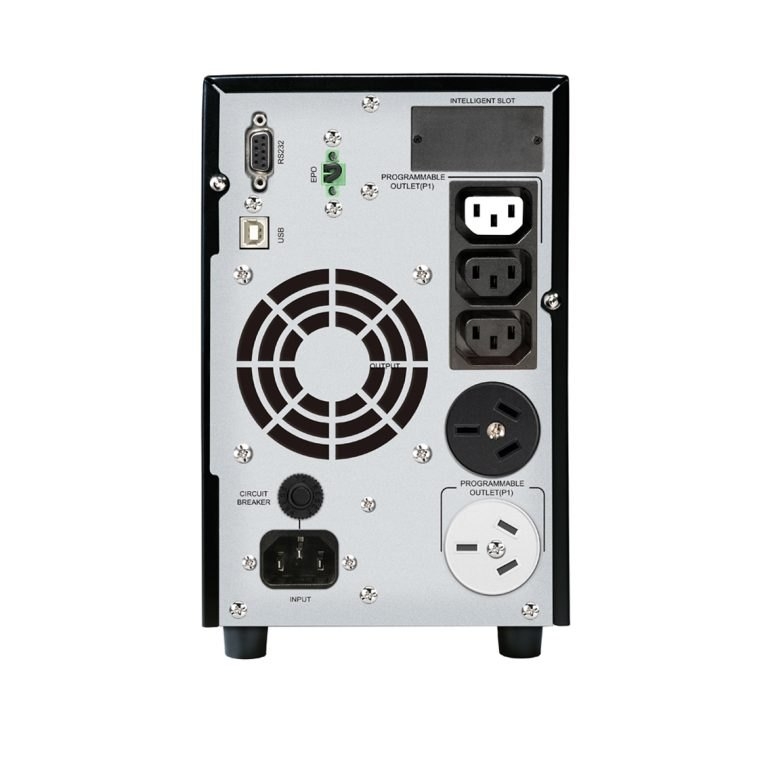

| Australian Outlets – UPS and Surge Protection | IEC Sockets: 10A, C13 x 3 , 2 x Australian Sockets |
The PowerShield Commander is a sophisticated pure sine wave, line interactive UPS. Besides providing
