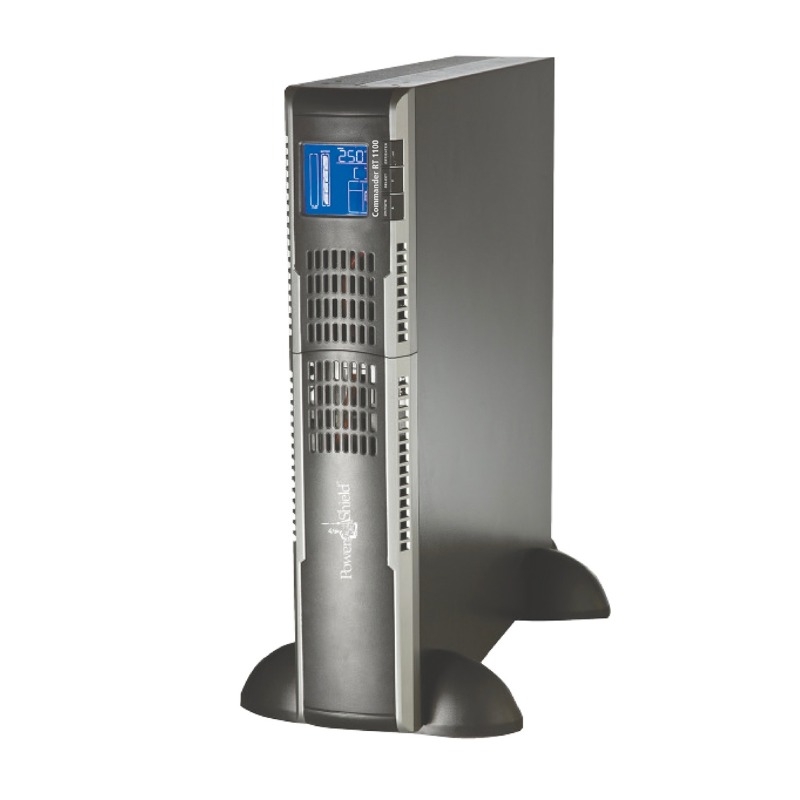

Powershield Commander Rt UPS, 1100VA, 990W, LCD, USB, Avr, C13(5), AU(3), 10AMP, 2YR PSCRT1100
SKU
416545
Brand
MPN
PSCRT1100
Warranty
Standard Manufacturer's Warranty
$945.00
Buy Now And Earn 945 Reward Points!
The Microprocessor-based, line Interactive, Pure Sine Wave Commander Rackmount/Tower UPS offers
power protection for applications such as networking, telecom, security and motors.
The Advanced ECO mode function allows cost effective operation of the UPS with an efficiency as high
as 98%. To provide longer backup time the 2kVA and 3kVA models are expandable to include an
additional battery bank.
power protection for applications such as networking, telecom, security and motors.
The Advanced ECO mode function allows cost effective operation of the UPS with an efficiency as high
as 98%. To provide longer backup time the 2kVA and 3kVA models are expandable to include an
additional battery bank.
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| RoHS | Directive 2011/65/EU |
| Voltage | 240VAC (Nominal) |
| ECO Mode | 98% |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| Topology | Line Interactive, Pure Sine Wave |
| Warranty | 2 years |
| Capacity | 1100VA/990W |
| Interface | USB and RS-232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| Noise Leve | < 45dB |
| Safety/EMC | EN62040 -1 -1 2003, IEC 60950 -1 -1, EN62040-2 2006 |
| Battery Mode | 90% |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), fault, overload |
| Recharge Time | 4 hours recover to 90% capacity |
| Transfer Time | 6ms (Typical) |
| Voltage Range | 162 to 290VAC |
| Output Voltage | 240VAC ± 10% |
| Full Protection | Overload, thermal, short circuit, discharge and overcharge protection |
| Frequency Range | 50Hz or 60Hz (Auto sensing) |
| Surge Protection | 1560Joules / 32500Amps |
| LCD Display/Alarm | AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Battery Replacement, Low Batt., Batt. Time Remaining |
| Relative Humidity | 0–90% (RH non-condensing) |
| Current Crest Ratio | 3:1 |
| Battery Type & Number | 12V*9Ah (x 2) |
| Operation Temperature | 0–40°C |
| Waveform (Batt Mode) | Pure Sine Wave |
| Weight Nett/Gross (kg) | 15/ 16 |
| Dimension L x W x H (mm) | 380 x 438 x 88 |
| Frequency Range (Batt Mode) | 50Hz or 60Hz ±1Hz |
| Australian Outlets – UPS and Surge Protection | IEC Sockets: 10A, C13 x 5 , 3 x Australian Sockets |
The Microprocessor-based, line Interactive, Pure Sine Wave Commander Rackmount/Tower UPS offers
