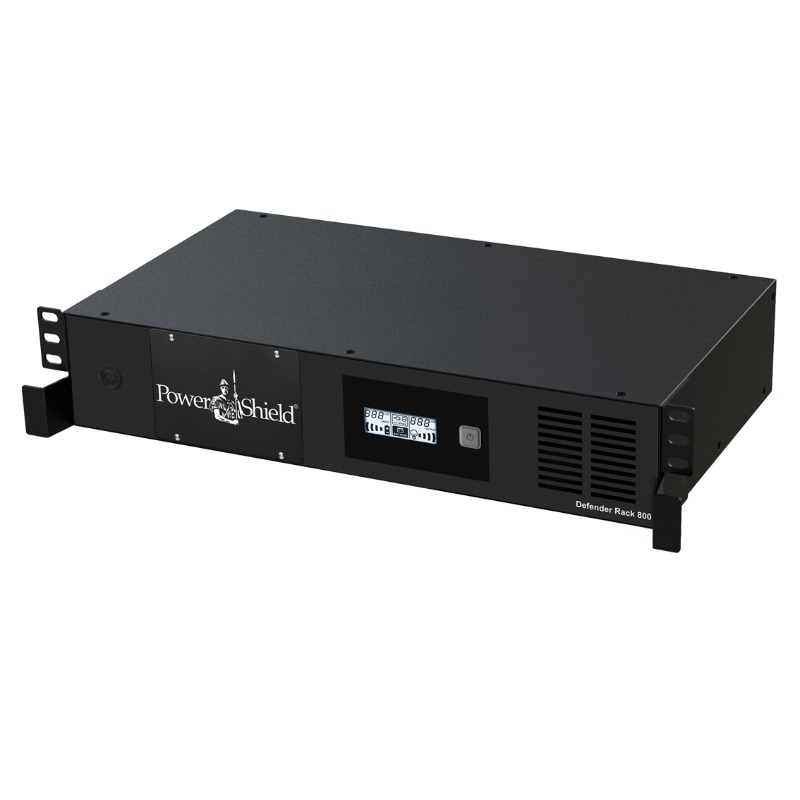

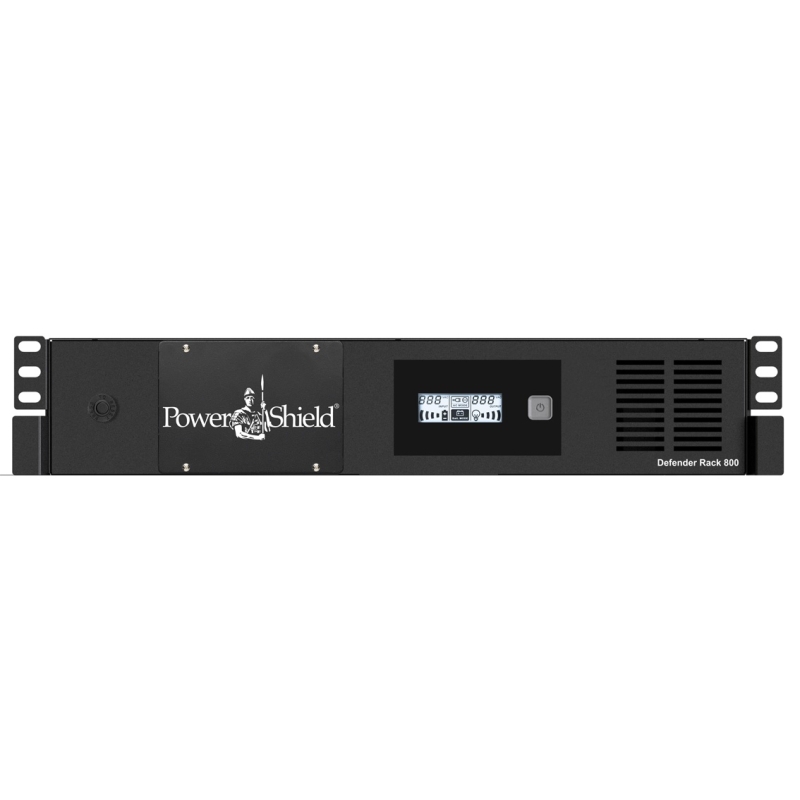

Powershield Defender Rackmount UPS 800VA, 480W, LCD, Avr, USB, Au OUTLET(8), 2YR PSDR800
SKU
390853
Brand
MPN
PSDR800
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$344.00
Buy Now And Earn 344 Reward Points!
RACK UPS. The Defender Rackmount expands the successful Defender Range by building the popular features into a Rack Mount NAS UPS perfect for shallow, wall mounted Comms cabinets.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
| Voltage | 240VAC (Nominal) |
| Humidity | 0–90% RH (non-condensing) |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| Topology | Line Interactive |
| Warranty | 2 Years |
| Capacity | 800VA / 480W |
| Interface | USB as standard, Intelligent slot for PSSNMP |
| LCD Alarm | AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Safety/EMC | EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006 |
| Backup Time | 6 mins |
| Noise Level | <40dB (no fan) |
| Temperature | 0–40°C |
| Battery Type | 12V / 9Ah (x1) |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, overload |
| Transfer Time | 6ms (Typical) |
| Voltage Range | 177 to 290VAC |
| Output Voltage | 240VAC ± 10% |
| Full Protection | Overload, discharge and overcharge protection |
| Frequency Range | 50Hz or 60Hz (Auto sensing) |
| Net Weight (kgs) | 7.7 |
| Surge Protection | 312Joules / 6500Amps |
| Typical Recharge Time | 6 hours recover to 90% capacity |
| Waveform (Batt Mode) | Simulated Sine Wave |
| Dimension D x W x H (mm) | 230 x 438 x 86 |
| Frequency Range (Batt Mode) | 50Hz or 60Hz ±1Hz |
| Australian Outlets – UPS and Surge Protection | 2x 10 Amp IEC Sockets, 6 x Australian Sockets |
