MPN	PSE30G-AT
SKU	PSE30G-AT
UPC	Does not apply
Brand	IP-COM
Model	PSE30G-AT
Notes	Power and voltage values reported by sources include: maximum PoE output 30W and reported output DC 51V/0.8A (both values included as provided).
Ports	1 x RJ45 (Data + PoE Out), 1 x RJ45 (Data In)
Weight	0.45 kg (shipping weight reported)
Category	Networking
Features	Plug-and-play, no configuration required Integrated compact design Gigabit Ethernet transmission Helps convert non-PoE networks to PoE when used with splitters
PoE Type	Mid-span
Warranty	1 Year
Condition	New
Data Rates	10/100/1000 Mbps
Indicators	Link/Act PoE Status

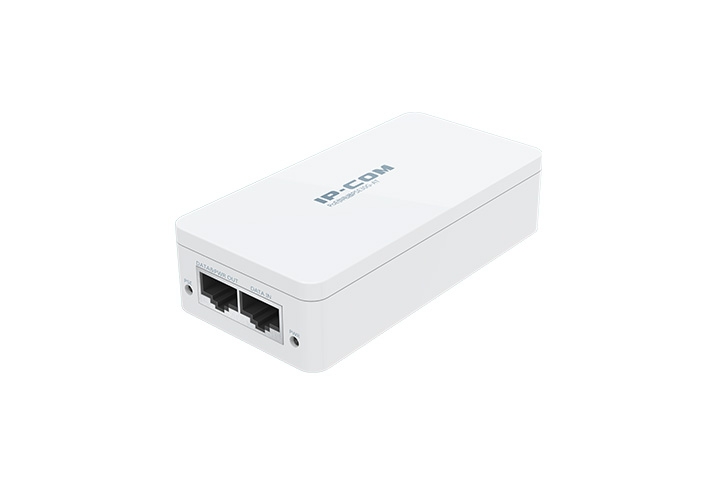

Description	The IP-COM PSE30G-AT is a compact, plug-and-play mid-span PoE injector that provides data and up to 30W of DC power over a single Gigabit Ethernet cable. It features one Data+Power RJ45 output and one Data RJ45 input, supports IEEE 802.3af/at Power over Ethernet standards and 10/100/1000 Mbps data rates, and includes built-in protections (over-voltage, over-current, overload and short-circuit auto shutoff) to protect connected PDs. Designed for easy deployment of wireless access points, IP phones and other PoE devices, the unit meets common regulatory certifications and includes status indicators for link/activity and PoE.
Protections	Short-circuit protection (auto cut-off) Over-current protection Over-voltage protection Overload protection
PoE Standard	IEEE 802.3af IEEE 802.3at
Product Type	PoE Injector / Power over Ethernet Injector
Sub-Category	Transceivers and Converters
Input Voltage	AC 100–240V, 50/60 Hz
Product Title	IP-COM PSE30G-AT 1-Port Gigabit PoE Injector (802.3at / 30W)
Certifications	FCC CE RoHS UL
Output Voltage	DC 51V (0.8A max) — as reported
PoE Pin Assignment	45+, 78- (as reported)
Standards & Protocols	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Dimensions (W × D × H)	132.3 × 60 × 33 mm
Max PoE Power (per port)	30 W (max)
Enclosure Flammability Rating	94V-0 (fireproofing level reported)
Supported Devices / Compatibility	Wireless access points Bluetooth devices IP telephones Other IEEE802.3af/at PD equipment

IP-COM IP-COM ( PSE30G-AT ) 802.3at Gigabit PoE Injector is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: IC40002. Order online for Australia-wide delivery with local support.
