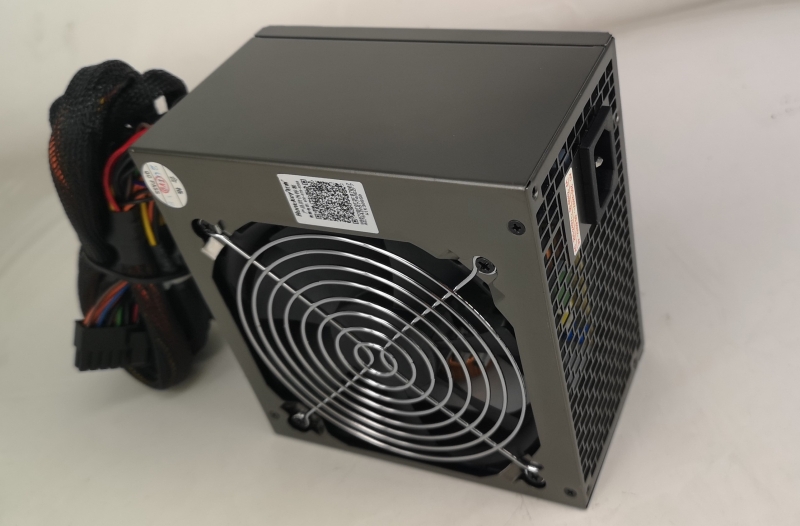

PowerCase 750W HK750 120mm Fan Power Supply (PSUHK750W12OEM)

SKU
305945
Brand
MPN
PSUHK750W12OEM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $81.00 Regular Price $93.00
Buy Now And Earn 81 Reward Points!

PowerCase 750W Active PFC power supports PC, IPC, Workstation and Server. It complies with the newest SSI EPS12V Version 2.91 and Intel ATX 12V Version 2.3 specifications. It supports latest operating system with high-end graphic card. Dual & four +12V rails could automatically adjust +12V output according to CPU and graphic card's demand. It also includes (6+2) pin PCIe connector for high-end graphic card and (4+4) pin connector for Dual Core CPUs and Multi Core CPUs. In addition, we've included a variety of industrial-grade protective circuitry: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection).

Features

  • Complies with Intel ATX 12V V2.3
  • Automatically adjusts +12V output according to CPU and graphic card's demand
  • Rated output power supply could perfect your system
  • SLI Ready and supports Intel & AMD Dual Core CPUs and Multi Core CPUs
  • Supports latest operating system with high-end graphic card
  • The standby mode consumes less than 1W when +5VSB is less than 0.1A
  • FAN speed auto-controlled by thermal sensor in the side of power supply
  • Harmonic: IEC 61000-3-2 Class D
  • MTBF: 50,000 hours at 25C
  • 100% Hi-pot and Burn-in test
  • EMI: FCC Part 15 Class & EN55022 Class B
  • 8x IDE, 4x SATA Connectors

Input Spec.

  • Input voltage: 230VAC (180-264VAC)/ 115VAC (90-132VAC)
  • Input current: 6.0A (Max.) at 230VAC
  • Input frequency: 47-63Hz
  • Inrush current: 80A at 230VAC cold start at 25C

Output Spec.

  • Peak Power: 750W
  • Efficiency: 70% Min, at full load 230VAC/50Hz
  • OVP: +3.3V +5V +12V1 +12V2
  • SCP: All output to GND
