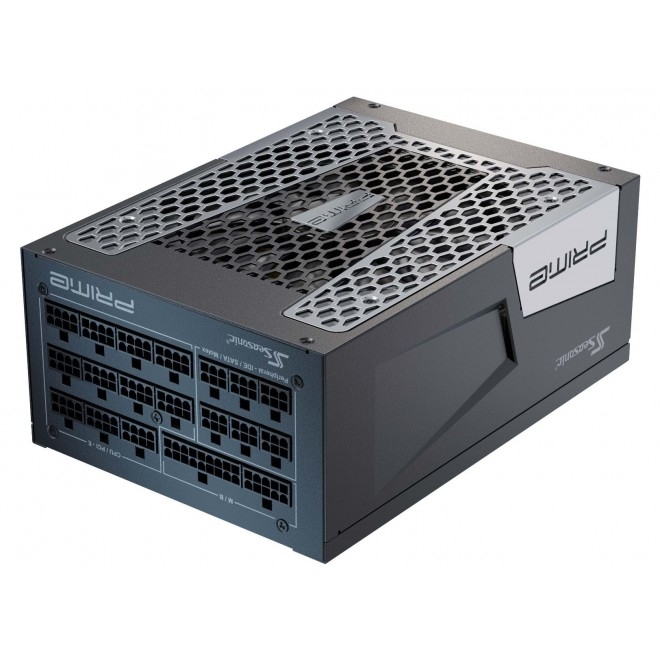

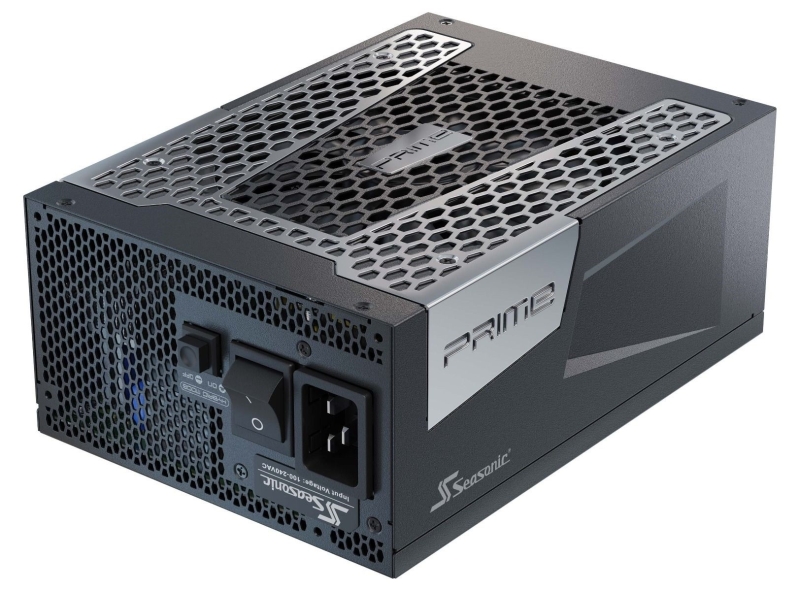

FEATURE SUMMARY
80 PLUS® Titanium certified
Micro Tolerance Load Regulation (0.5 %)
Cable-free Connection Design
Premium Hybrid Fan Control - Fanless until 40 % load
Multi-GPU setup
Gold plated connectors

Technical Specifications
80PLUS® Titanium
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years

Power Output

AC Input Voltage: 100 V - 240 V
Current: 15 - 8 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 108.3 A 0.5 A 3 A
125 W 1300 W 6 W 15 W
Total Continuous Power 1300 W
