Brother *NEW* INDUSTRIAL LABELLING MACHINE FOR ELECTRICAL/DATACOM W/ BLUETOOTH CONNECTION UP TO 18MM TZE TAPE (replacing PT-E300VP) PT-E310BTVP
*NEW* INDUSTRIAL LABELLING MACHINE FOR ELECTRICAL/DATACOM W/ BLUETOOTH CONNECTION UP TO 18MM TZE TAPE (replacing PT-E300VP)

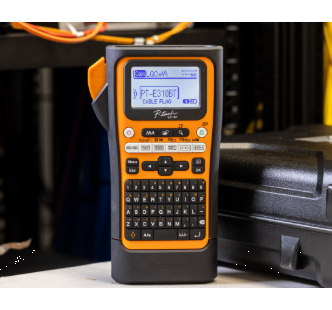

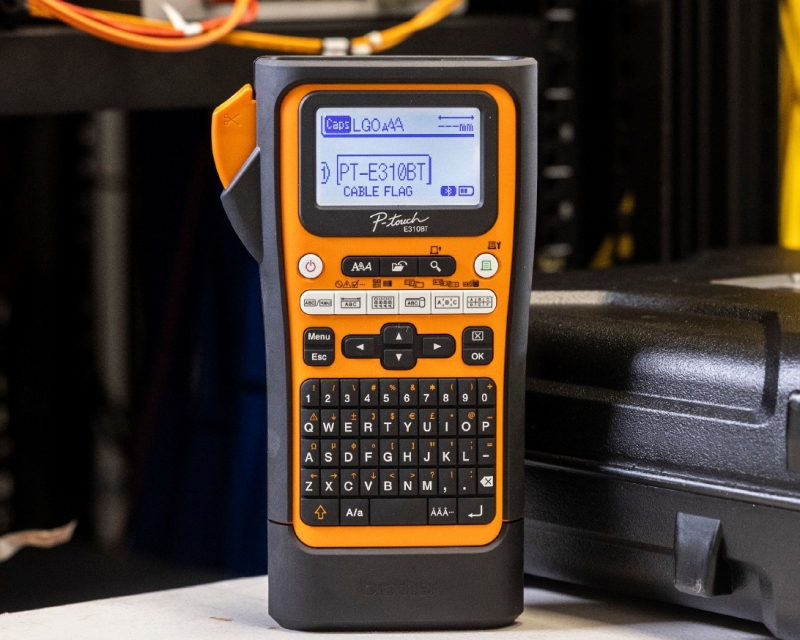

Brother PT-E310BTVP is your reliable, no fuss labelling companion for any worksite.
Prints up to 18mm wide labels, with an industrial strength cutter, Bluetooth and USB Type C.
Dedicated keys for common electrical and network tasks, QR code printing and tested-to-the-extreme TZe Pro tapes or heat shrink tubes, get the job done right every time.
Key Features:
- Connect and print easily via your phone using Bluetooth or a desktop PC using USB
- Up to 6 “one-touch” function keys for general label, faceplate cable flag/wrap, punch down block and patch panel ID
- Fast print speeds of up to 20 labels per minute
- Up to 18mm wide labels
- Large backlit display
- Add QR codes or 2D barcodes and logos to your labels
- Compatible with Brother’s TZe range of tapes with labels tested to the extreme and HSe heat shrink tubes
Specifications
| Compatible with | |
| Dimensions | 135(W) x 236(D) x 71(H) mm |
| Interface | USB 2 Type C, Bluetooth Ver: 3.0 |
| Max Paper Size | 18mm |
| Print/Scan Resolution | 180dpi |
| Print/Scan Speed (ppm) | USB Power adapter: 20 mm/sec Batteries: 20 mm/sec |
| Product Family | |
| Product Type | Labeling machine |
| Warranty | 3 years return to base |
| Weight | 785g (without tape & batteries) |
| AC Adaptor | USB Type-C: Universal |
| BarCodes | Yes |
| Batteries | Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours |
| Bluetooth | Bluetooth Ver: 3.0, SPP: iAP |
| Built In Languages | 6 Kinds: English, Arabic, Persian, Thai, Vietnamese, T.Chinese |
| Cable Labelling Function | 7 Kinds: General, Faceplate, Cable Wrap, Cable Flag, Patch Panel / Terminal Block / Distribution board, Punch Block, Heat Shrink Tube. Also via Mobile Cable Label Tool App |
| Carry Case | Yes (Included) |
| Display | LCD (Backlight) 16 Characters x 4 line LCD |
| Hardware Type | HandHeld PC Connectable |
| Inbox Consumables | TZe-FX241 (18mm Black/White Flexible ID 8m) |
| Memory | Local File Memory: 178,200 Characters or 99 files, Transferred File Memory: 99 each for templates/databases/images/ symbols |
| Multi Line Print | 5 |
| Optional Power | Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours |
| Print Preview | Yes (Real Preview) |
| Printer OS Compatibility | Windows 11, Windows 10 (32&64bit) macOS 12-15¹ |
| Rotate Print | In Label Type setting |
| Software Available | Windows: P-touch Editor 6, Printer Setting Tool, Driver Mac: P-touch Editor 6 |
| Tape Length | 8 Metres |
| Tape Type | TZe laminated & non-laminated, HSe Heat Shrink Tube |
| Tape Widths | 3.5, 6, 9, 12, 18mm |
| USB interface cable | USB A-C Cable (For data and power) |
| Vertical Print | Yes (in the style setting) |
