Brother *NEW* INDUSTRIAL LABELLING MACHINE FOR ELECTRICAL/DATACOM WITH BLUETOOTH CONNECTION UP TO 24MM TZE TAPE (replacing PT-E550WVP) PT-E560BTVP
*NEW* INDUSTRIAL LABELLING MACHINE FOR ELECTRICAL/DATACOM WITH BLUETOOTH CONNECTION UP TO 24MM TZE TAPE (replacing PT-E550WVP)

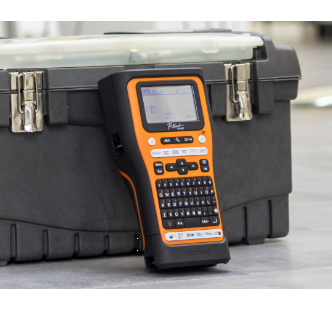

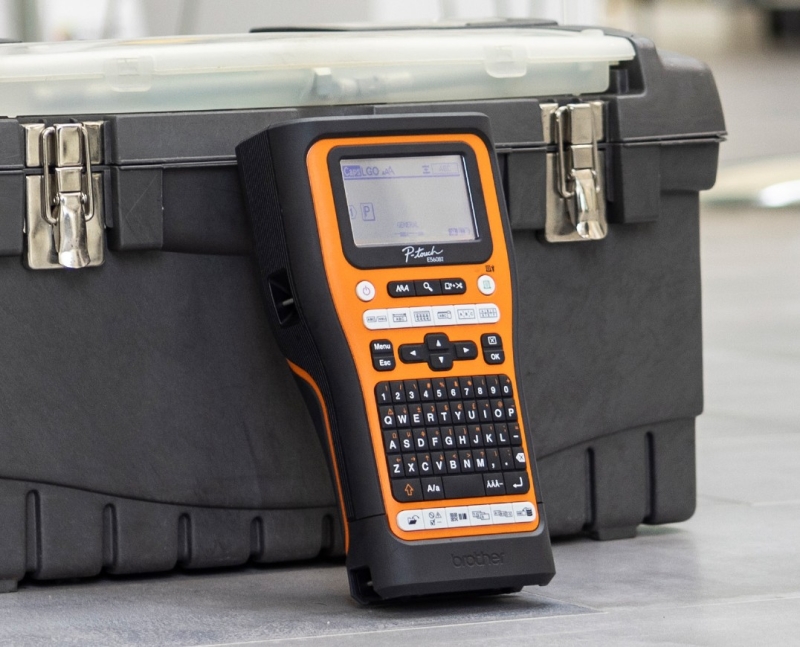

Brother PT-E560BTVP is your ultimate labelling companion.
Prints up to 24mm wide labels fast, with auto cutter, Bluetooth and USB Type C connectivity. Dedicated keys for common electrical and network labelling tasks, QR code printing and tested-to-the-extreme TZe Pro Tapes or heat shrink tubes. Boost your efficiency on any worksite with this top-tier labelling machine
Key Features:
- Fast print speeds of up to 30 labels per minute
- Automatic (full & half) cutter with easy peel function to print multiple labels in one continuous strip
- Up to 24mm wide labels
- Large backlit display
- Connect and print easily via your phone using Bluetooth or a desktop PC using USB
- Up to 6 “one-touch” function keys for general label, faceplate, cable flag/wrap, punch down block and patch panel ID
- Add QR codes or 2D barcodes and logos to your labels
- Compatible with Brother’s TZe range of tapes with labels tested to the extreme and HSe heat shrink tubes
Specifications
| Compatible with | |
| Dimensions | 132(W) x 244(D) x 80(H) mm |
| Interface | USB 2 Type C, Bluetooth Ver: 3.0 |
| Max Paper Size | 24mm |
| Print/Scan Resolution | 180dpi |
| Print/Scan Speed (ppm) | USB Power adapter: 30 mm/sec Batteries: 20 mm/sec |
| Product Family | |
| Product Type | Labeling machine |
| Warranty | 3 Years Return To Base |
| Weight | 1050g (without tape & batteries) |
| AC Adaptor | USB Type-C: Universal |
| Batteries | Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours |
| Cable Labelling Function | 8 Kinds: General, Faceplate, Cable Wrap, Cable Flag, Patch Panel / Terminal Block / Distribution board, Punch Block, Heat Shrink Tube, Self Laminate. Also via Mobile Cable Label Tool App |
| Carry Case | Yes (Included) |
| Display Type | LCD (Backlight) 18 Characters x 5 line LCD |
| Hardware Type | HandHeld PC Connectable |
| Inbox Consumables | TZe-FX251 (24mm Black/White Flexible ID 8m) |
| Optional Power | Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours |
| Printer OS Compatibility | Windows 11, Windows 10 (32&64bit) macOS 12-15 |
| Software Available | Windows: P-touch Editor 6, Printer Setting Tool, Driver Mac: P-touch Editor 6 |
| Tape Type | TZe laminated & non-laminated, HSe Heat Shrink Tube |
| Tape Widths | 3.5, 6, 9, 12, 18, 24mm |
