QBT2430 2D USB Kit Bt Blk QBT2430-BK-BTK1
SKU
230561
Brand
MPN
QBT2430-BK-BTK1
Warranty
Standard Manufacturer's Warranty
$771.00
Buy Now And Earn 771 Reward Points!

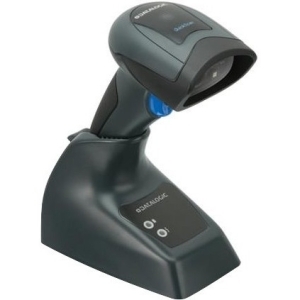

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.
The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.
The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
| Application/Usage | Industrial, Retail |
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Brand Name | Datalogic |
| Scanning Distance | 350 mm |
| Bluetooth | Yes |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Product Family | QuickScan I |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP42 |
| Cable Type Included | USB |
| Scanning Capability | 1D, 2D |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Rechargeable | Yes |
| Maximum Number of Scans per Full Charge | 30000 |
| Manufacturer Part Number | QBT2430-BK-BTK1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Packaged Quantity | 3 |
| Manufacturer | Datalogic S.p.A |
| Product Model | QBT2430 |
| Product Name | QuickScan I QBT2430 Handheld Barcode Scanner Kit |
| Product Line | QuickScan I |
| Additional Information | USB Cable separate |
| Certifications & Standards | IP42 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 200 g |
| Height | 163 mm |
| Width | 41 mm |
| Depth | 91 mm |
| Input Voltage | 14 V DC |
| Power Source | Battery |
| Barcode Symbology Supported | 1D / Linear Codes: • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes 2D Codes: • Aztec Code • Aztec Mesas • Data Matrix • MaxiCode • QR Code • Micro QR Code • China Han Xin Code Postal Codes: • Australian Post • British Post • Canadian Post • China Post • IMB • Japanese Post • KIX Post • Korea Post • Planet Code • Postnet • Royal Mail Code (RM4SCC) Stacked Codes: • EAN/JAN Composites • GS1 DataBar Composites • GS1 DataBar Expanded Stacked • GS1 DataBar Stacked • GS1 DataBar Stacked Omnidirectional • MacroPDF • MicroPDF417 • PDF417 • UPC A/E Composites |
| Maximum Scan Resolution | 0.10 mm |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Depth of Field | • 0.5cm - 15cm@5mil - Code 39 • 0.5cm - 35cm@13mil - EAN/UPCA • 2cm - 15cm@6.6mil - PDF417 • 2cm - 16cm@10mil - Data Matrix |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 635 mm/s |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
| Shipping Dimensions | Height 10.4, Width 18.8, Length 22.2, Shipping Weight 0.74 KG |
QBT2430 2D USB KIT BT BLK
