Qnap QHora-301W, Dual 10G Wifi 6 AX3600 Fanless Sd-Wan Router, 2 Years Wty QHora-301W
SKU
298135
Brand
MPN
QHora-301W
Warranty
Standard Manufacturer's Warranty
$761.00
Buy Now And Earn 761 Reward Points!

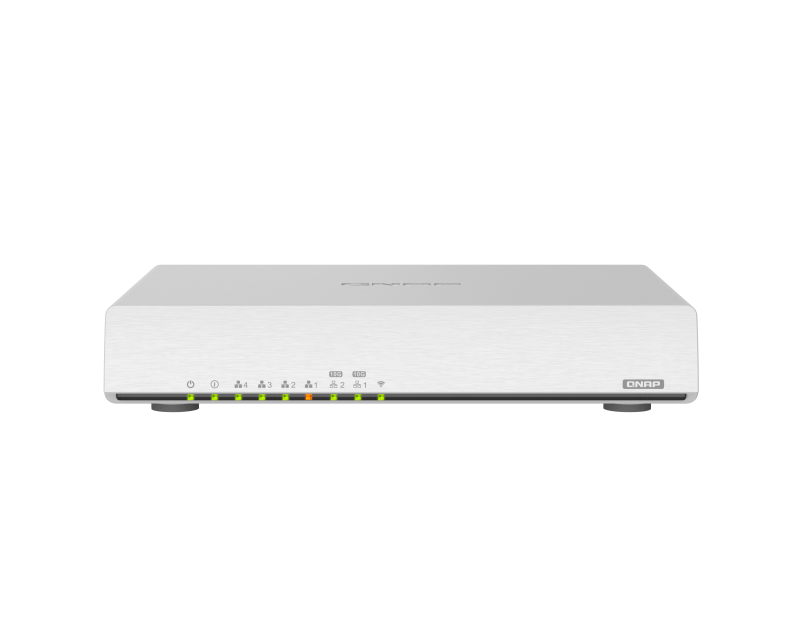

QNAP QHora-301W, Dual 10G wifi 6 AX3600 Fanless SD-WAN router.
CPU:Qualcomm IPQ8072A
Memory: 1GB
LAN: 4x 1GbE RJ45, 2x 10GbE RJ45
2 x USB 3.0
CPU:Qualcomm IPQ8072A
Memory: 1GB
LAN: 4x 1GbE RJ45, 2x 10GbE RJ45
2 x USB 3.0
| SKU | QHora-301W |
|---|---|
| VPN | Notes: QVPN Client, QVPN Server and QuWAN service cannot be enabled at the same time (exceptions noted by manufacturer). WireGuard: Supported (reported) QVPN / QBelt: QVPN Service (OpenVPN, L2TP/IPSec, QNAP QBelt) Concurrent VPN / QBelt: Max ~30 QBelt connections reported |
| Brand | QNAP |
| Model | QHora-301W |
| Notes | USB ports have limited functionality (reported primarily for connecting USB dongle storage for FTP service); some reports indicate limited filesystem support. 160 MHz channel width availability may be restricted by regional regulations. QHora application-based routing features were reported as coming in a later firmware update (manufacturer notes). |
| Ports | USB: 2 x USB 3.2 Gen 1 (host) - limited use (reported: for USB dongle storage / FTP service; limited filesystem support reported) Buttons: [ "Power", "WPS", "Reset" ] Power Input: 12 V DC (external adapter) 10GbE (RJ-45): 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) Gigabit Ethernet (RJ-45): 4 x 10/100/1000 Mbps |
| Design | Fanless desktop design |
| Weight | Unit: 1.9 kg Imperial: 4.19 lb |
| Antennas | 8 internal antennas (approx. 5 dBi; site-reported gains: ~4.5 dBi @2.4 GHz, ~5.2 dBi @5 GHz) |
| Category | Networking |
| Processor | Qualcomm IPQ8072A (Hawkeye 2) quad-core 2.2 GHz |
| Model Name | Next-Generation Wi-Fi 6 Dual-Port 10GbE SD-WAN Router |
| Description | The QNAP QHora-301W is a next-generation Wi‑Fi 6 AX3600 router built for high-performance wired and wireless networking with integrated enterprise-grade SD-WAN. It pairs a Qualcomm IPQ8072A quad-core 2.2 GHz CPU with 1 GB RAM and 4 GB eMMC flash to deliver up to 3600 Mb/s combined dual-band Wi‑Fi 6 performance and flexible wired connectivity via two 10GBASE-T ports and four Gigabit RJ45 ports. The fanless, desktop-form router includes 8 internal antennas for wide coverage, MU-MIMO and OFDMA support, advanced security (L3 firewall, IPS/IDS, GeoIP filtering, WPA3/OWE), QuWAN subscription-free SD‑WAN orchestration, QVPN (OpenVPN, L2TP/IPSec, QBelt) and WireGuard support, WAN aggregation/failover/load balancing, deep packet inspection and enterprise routing features — making it suitable for multi-site, remote-work and small/medium business deployments. |
| Performance | Note: Actual performance may vary depending on network conditions and enabled services. QuWAN Throughput: 224 Mbps (reported) Concurrent Sessions: 50,000 (reported) QBand / QBelt VPN Throughput: 116 Mbps (reported, multiple tunnels) |
| Flash Memory | 4 GB eMMC |
| Memory (RAM) | 1 GB |
| Sub-Category | Routers and Components |
| Wi-Fi Rating | AX3600 (up to 3600 Mb/s combined) |
| Environmental | Operating Humidity: 5% to 95% (non-condensing) Operating Temperature: 0 °C to 40 °C |
| Product Title | QNAP QHora-301W Wi-Fi 6 (AX3600) Dual 10GbE SD-WAN Router |
| Package Weight | 2.2 kg (reported packaging/shipping weight) |
| Wireless Bands | Dual-band (2.4 GHz / 5 GHz) |
| Wireless Features | MU-MIMO OFDMA Band steering / Smart Connect DFS channel support IEEE 802.11r fast roaming Wireless scheduler Guest wireless WPS |
| Wireless Security | WPA, WPA2, WPA3 WPA-Enterprise, WPA2-Enterprise Opportunistic Wireless Encryption (OWE) WPA2-PSK WPS |
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6) IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g |
| Included Components | Ethernet network cable External AC power adapter / power cord Quick Installation Guide |
| Physical Dimensions | Metric: 250 x 180 x 48 mm Imperial: 9.84 x 7.09 x 1.89 in |
| Security & Firewall | Layer 3 firewall Policy-based routing Static routing NAT forwarding IPS (Intrusion Prevention System) L7 application control / DPI (Deep Packet Inspection) GeoIP firewall SAML SSO and Zero Trust authentication (reported) |
| SD-WAN / Orchestration | QuWAN (subscription-free SD-WAN) with QuWAN Orchestrator and auto-mesh VPN for multi-site connectivity |
| Switch / WAN-LAN Notes | Two 10GbE ports plus four Gigabit ports provide flexible WAN/LAN deployment and recommended WAN port configuration options; supports WAN aggregation, failover and load balancing. |
| Manufacturer Part Number | QHORA-301W-US |
| Channel Width / Bandwidth | 20/40/80/160 MHz (160 MHz subject to regional regulations) |
| Certifications & Standards | Wi‑Fi CERTIFIED 6 JATE CE FCC BSMI NCC IC SRRC CCC VCCI RCM |
| Operating System / Firmware | QuRouter OS (manufacturer-provided router OS) |
| Advanced Networking Features | Policy-based routing QoS-based traffic prioritization Smart path selection WAN aggregation Dual-WAN / WAN failover VLAN (IEEE 802.1Q) DDNS UPnP ALG support (FTP/PPTP/SIP) |
| Maximum Wireless Speed (per band) | 5 GHz: 2475 Mbps (reported) 2.4 GHz: 1182 Mbps (reported) |
| Spatial Streams / Radio Configuration | Multi-radio with MU-MIMO and OFDMA; supports 2x2 160MHz channels (device supports various 4x4/2x2 configurations internally as reported) |
QNAP QHora-301W, Dual 10G wifi 6 AX3600 Fanless SD-WAN router, 2 Years WTY
