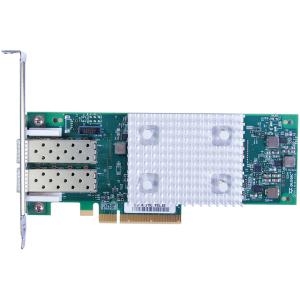

Lenovo Qlogic 16gb Fc Dual-port Hba 01cv760
Overview

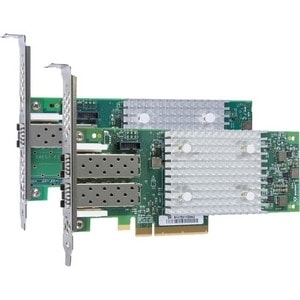

 The QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single and Dual-port Host Bus Adapters (HBAs) for Lenovo ThinkSystem and System x servers offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. Enhanced Gen 5 FC technology provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments, while fully leveraging the capabilities of high-performance 16 Gb FC (16GFC) and all-flash arrays (AFAs). Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 16 Gbps performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers. |
| Basic | |
|---|---|
| Brand Name: | Lenovo |
| Data Transfer Rate: | 16 Gbit/s |
| Host Interface: | PCI Express 3.0 x8 |
| Product Type: | Fibre Channel Host Bus Adapter |
| Total Number of Fibre Channel Ports: | 2 |
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Product Name: | QLogic 16Gb Enhanced Gen5 FC Dual-port HBA |
| Product Type: | Fibre Channel Host Bus Adapter |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Media & Performance | |
|---|---|
| Data Transfer Rate: | 16 Gbit/s |
| Physical Characteristics | |
|---|---|
| Card Height: | Low-profile |
| Form Factor: | Plug-in Card |
| Height: | 69 mm |
| Width: | 168 mm |
| Technical Information | |
|---|---|
| Host Interface: | PCI Express 3.0 x8 |
| Total Number of Fibre Channel Ports: | 2 |
| Marketing Text | The QLogic Enhanced Gen 5 16 Gb FC Host Bus Adapters boast industry leading native FC performance achieving dual-port, line-rate, 16 Gb FC throughput at extremely low CPU usage, with full hardware offloads. |
| PI Date | Mar 2017 |
| Brand Name | Lenovo |
| Form Factor | Low-Profile |
| Manufacturer Web site | http://www.lenovo.com |
| Product Type | Host Bus Adapter |
| Connector Type | 2 x Fibre Channel |
| Interface | Fibre Channel |
| Other Features | * Performance: 650,000 IOPs per port * Message-signaled interrupts (MSI-X) and legacy interrupts (INT-X) * N_Port ID Virtualization (NPIV) * Boot from SAN * Bandwidth: 16 Gb per second maximum at full-duplex per port * Device management for SAN |
