Qnap Dual M.2 22110/2280 Pcie (Gen3 X 4) Nvme SSD Expansion Card. PCIe And Lanes: PCIe Gen3 X 8. Low-profile Flat And Full-height Brackets Are Also Included QM2-2P-384A
SKU
395998
Brand
MPN
QM2-2P-384A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$392.00
Buy Now And Earn 392 Reward Points!

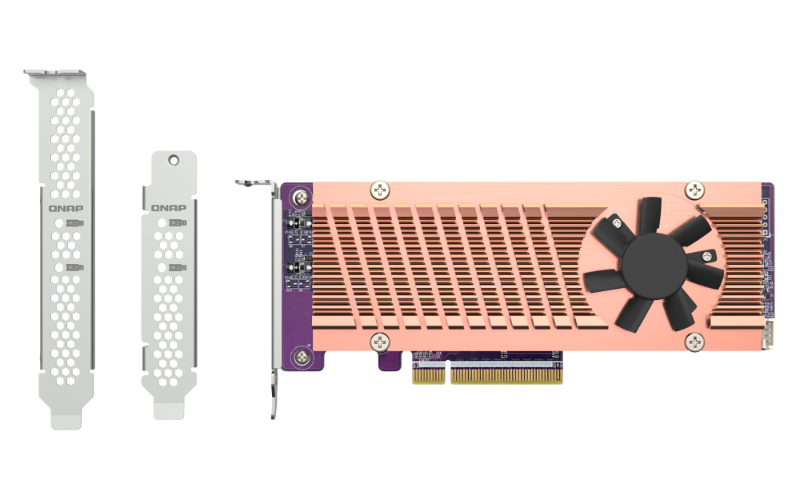

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
| EAN | 0885022025251 |
|---|---|
| SKU | QM2-2P-384A |
| UPC | 885022025251 |
| Brand | QNAP |
| Model | QM2-2P-384A |
| Notes | No drivers or extra software required in typical use Maximum theoretical bandwidth listed as up to 64 Gb/s for PCIe Gen3 x8 host interface |
| Cooling | Cooling module with heatsink and smart fan (quiet) |
| Features | Dual M.2 NVMe support (22110/2280) SSD caching support SSD volume support Qtier auto-tiering support (see Notes) Tool-less M.2 installation LED indicators and thermal sensors Low-profile card height; includes bracket options |
| M.2 Slots | 2 |
| Indicators | LED status indicators for M.2 SSDs |
| MFR Number | QM2-2P-384A |
| Card Height | Low-profile |
| Description | The QNAP QM2-2P-384A is a dual M.2 NVMe PCIe expansion card that adds two M.2 22110/2280 NVMe SSD slots to compatible NAS, desktop, or server systems. The card uses a PCIe Gen3 x8 host interface (providing up to 64 Gb/s theoretical bandwidth) with each M.2 slot supporting PCIe Gen3 x4 NVMe SSDs. It features a quiet cooling module (heatsink and smart fan), thermal sensors, LED status indicators, and a tool-less screw-less M.2 installation design. Use the installed M.2 drives for SSD caching, SSD volumes, or Qtier auto-tiering (Qtier support requires x86-based NAS or 64-bit ARM-based NAS with 2GB RAM and QTS 4.4.1 or later). Low-profile bracket is pre-installed; additional bracket options are included. M.2 SSDs are not included. |
| Installation | Tool-less (screw-less) M.2 locking method |
| Release Date | 2022-12-15 |
| Max Bandwidth | Up to 64 Gb/s (PCIe Gen3 x8 host interface) |
| Product Title | QNAP QM2-2P-384A Dual M.2 NVMe PCIe Gen3 x8 Expansion Card (2 x 22110/2280) |
| Host Interface | PCIe Gen3 x8 |
| Item Condition | New |
| Thermal Sensors | Integrated thermal sensors for real-time temperature monitoring |
| Brackets Included | Low-profile bracket (pre-loaded) Low-profile flat bracket Full-height bracket |
| M.2 SSDs Included | No (M.2 SSDs not included) |
| Supported Devices | Compatible QNAP NAS models (see Compatibility list) Windows/Linux PC Server |
| Per-slot Interface | PCIe Gen3 x4 (NVMe) |
| Compatibility Notes | Qtier auto-tiering is only supported by x86-based NAS (Intel or AMD) and 64-bit ARM-based NAS with 2GB RAM and QTS 4.4.1 or later. |
| Dimensions (inches) | Unit: in Width: 0.8 Height: 2.7 Length: 6.7 |
| Accessories Included | Low-profile bracket (pre-loaded) Low-profile flat bracket Full-height bracket |
| Compatible NAS Models | TS-251D TS-253B TS-253Be TS-264 TS-431XU TS-431XU-RP TS-432PXU TS-432PXU-RP TS-432X TS-453B TS-453Be TS-453BU TS-453BU-RP TS-463U TS-463U-RP TS-463XU TS-463XU-RP TS-464 TS-464U TS-464U-RP TS-473 TS-473A TVS-463 TVS-472XT TVS-473 TVS-473e TVS-h474 QVP-63B TS-632X TS-653B TS-664 TS-673 TS-673A TS-677 TS-AI642 TS-h686 TVS-663 TVS-672XT TVS-673 TVS-673e TVS-675 TVS-682 TVS-682T TVS-h674 TVS-h674T QVP-85B TS-831XU TS-831XU-RP TS-832PX TS-832PXU TS-832PXU-RP TS-853BU TS-853BU-RP TS-855eU TS-855eU-RP TS-855X TS-863U TS-863U-RP TS-863XU TS-863XU-RP TS-864eU TS-864eU-RP TS-873 TS-873A TS-873AeU TS-873AeU-RP TS-873AU TS-873AU-RP TS-873U TS-873U-RP TS-877 TS-877XU TS-877XU-RP TS-883XU TS-883XU-RP TS-EC880 Pro TS-EC880U TS-h886 TVS-863 TVS-863+ TVS-872XT TVS-872XU TVS-872XU-RP TVS-873 TVS-873e TVS-882 TVS-882BR TVS-882ST2 TVS-882ST3 TVS-882T TVS-h874 TVS-h874T TVS-h874X TS-977XU TS-977XU-RP TS-983XU TS-983XU-RP TS-h977XU-RP TS-h987XU-RP TVS-972XU TVS-972XU-RP TS-EC1080 Pro TS-h1077AFU TS-h1090FU TS-1231XU TS-1231XU-RP TS-1232PXU-RP TS-1253BU TS-1253BU-RP TS-1263U TS-1263U-RP TS-1263XU TS-1263XU-RP TS-1264U-RP TS-1273AU-RP TS-1273U TS-1273U-RP TS-1277 TS-1277XU-RP TS-1283XU-RP TS-EC1280U TS-EC1280U R2 TS-h1277AFX TS-h1277AXU-RP TS-h1277XU-RP TS-h1283XU-RP TS-h1290FX TVS-1272XU-RP TVS-1282 TVS-1282T3 TVS-EC1280U-SAS-RP TVS-EC1280U-SAS-RP R2 TVS-h1288X TDS-16489U TDS-16489U R2 TDS-16489U R2(QTS) TS-1635 TS-1635AX TS-1673AU-RP TS-1673U TS-1673U-RP TS-1677XU-RP TS-1683XU-RP TS-1685 TS-EC1680U TS-EC1680U R2 TS-h1655XeU-RP TS-h1677AXU-RP TS-h1677XU-RP TS-h1683XU-RP TVS-1672XU-RP TVS-AIh1688ATX TS-EC1680U-SAS-RP TS-EC1680U-SAS-RP R2 TS-h1688X TES-1885U TS-1886XU-RP TS-h1886XU-RP TS-h1886XU-RP R2 TS-h1887XU-RP TS-h2287XU-RP TDS-h2489FU TDS-h2489FU R2 TS-2477XU-RP TS-2483XU-RP TS-h2477AXU-RP TS-h2477XU-RP TS-h2483XU-RP TS-h2490FU TVS-2472XU-RP TS-2888X TES-3085U TS-h3077AFU TS-h3087XU-RP TS-h3088XU-RP QGD-1600P QGD-1602P |
| Supported Form Factors | M.2 2280 M.2 22110 |
QNAP DUAL M.2 22110/2280 PCIE (Gen3 x 4) NVME SSD EXPANSION CARD. PCIe and Lanes: PCIe Gen3 x 8. Low-profile flat and Full-height brackets are also included
